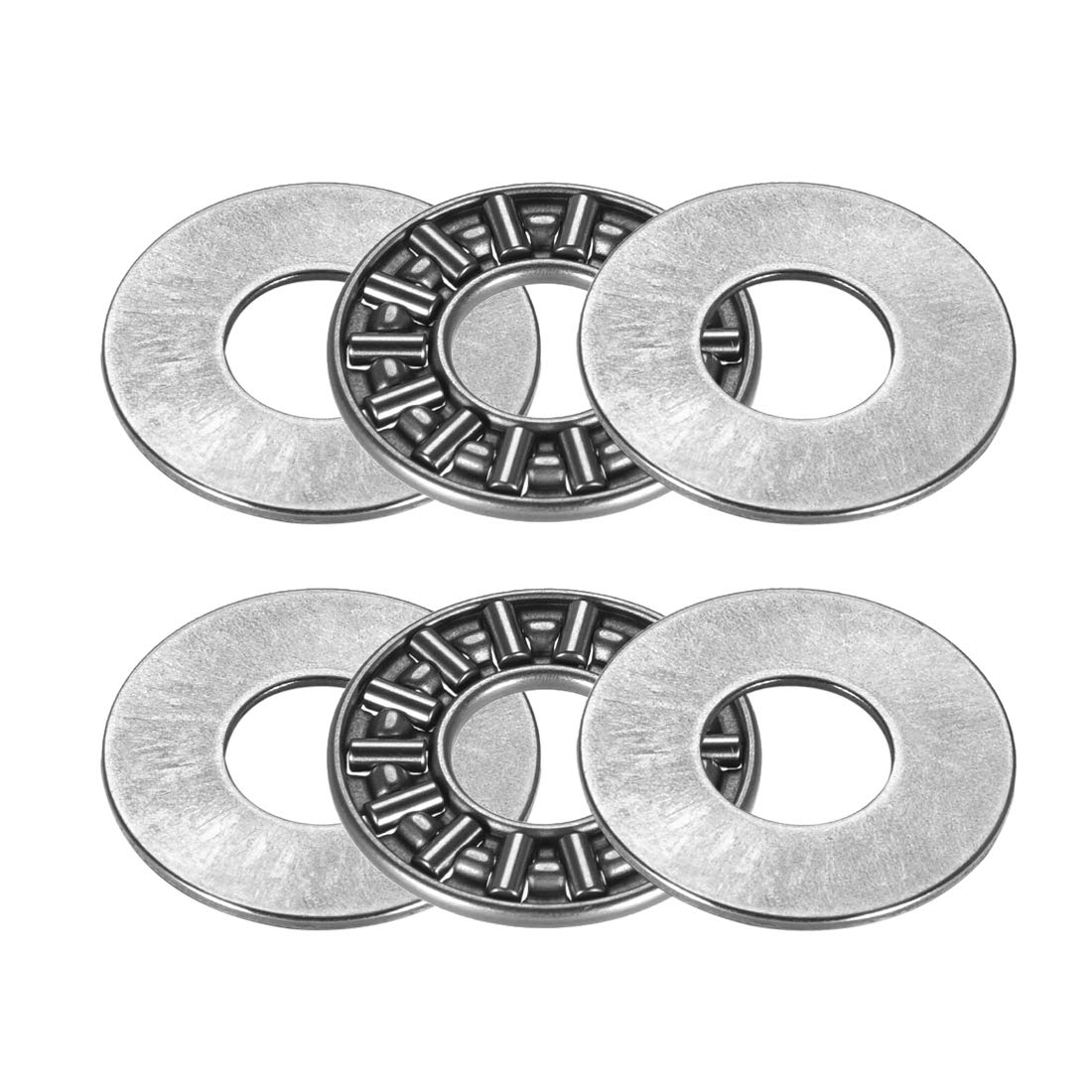

AXK1024+2AS Needle Roller Thrust Bearings with 2 Washers, 10mm Inner Diameter, 24mm OD, 4mm of Thickness, GCr15 Hardness 2 Pcs

Key Features

• AXK1024. Size 10mm Inner Diameter, 24mm Outside Diameter, 4mm Thickness 2 Pcs
• Needle Roller Thrust Bearings is designed to support high loads (i.e. loads parallel to the shaft)
• High-grade rollers with fitted retainers, ensure the performance of less friction, vibration, and noise.
• Through-hardened, chromium steel rollers for heat tolerance and durability under heavy loads
• Application. For fixing or rebuilding your milling machine, lathe or other equipments.

Product Description

1.This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.2.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.3.AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.4.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.5.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.Specification:Bearing MODEL: AXK1024 with 2 WashersNeedle Roller Material: Chromium Steel (GCr15)Cage Material: ST13 SteelBearing Washer Material: 65Mn Spring SteelInner Diameter : 10mmOutside Diameter (D): 24mmTotal Thickness: 4mmDynamic Load Capacity (Cr): 11.2kNStatic Load Capacity (Cor): 35.5kNMaximum Rotational Speed (Oil): 11000rpmTotal Weight: 17g

Package Content

2 Pcs
