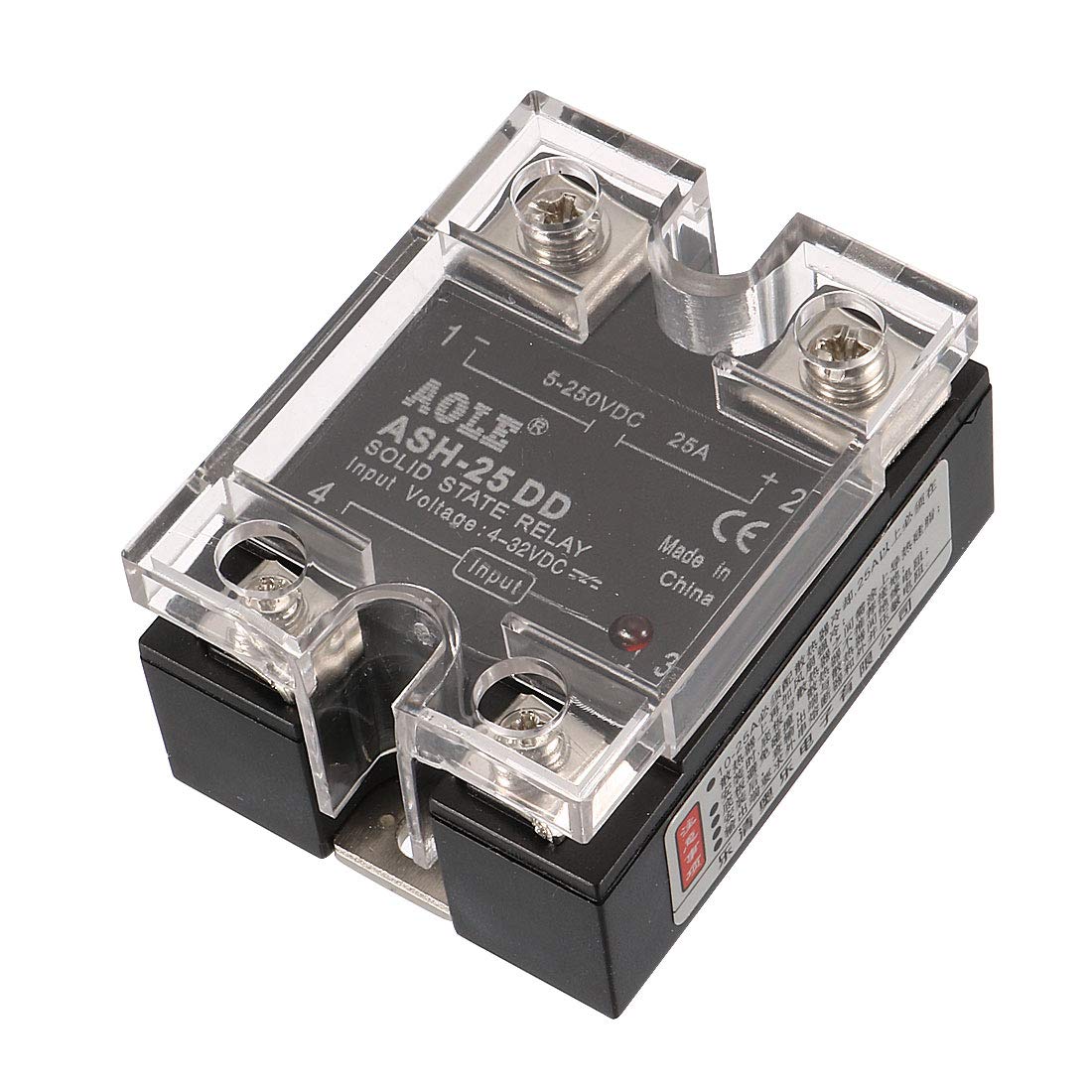

ASH-25DD 4-32VDC to 5-250VDC 25A Single Phase Solid State Relay DC-DC Relay
Key Features
- Input Voltage 4-32VDC; Output Voltage 5-250VDC; Max Load Current 25A.
- Size 45 x 57 x 28mm/1.76x2.25x1.1inch(L*W*H)
- Sealed high temperature resistance housing;Resin protective cap;Perfectly soldered copper post.
- 10 to 25A radiator cooling,more than 25A must on the radiator and fan cooling. Output requirements concatenated fuse or and the varistor.
- Widely used in computer external link devices, high-power thyristor triggers, and industrial automation devices. Such as thermostat and resistance furnace control, AC motor control, solenoid valve control, copier and fully automatic washing machine control, lighting, and stage lighting control, CNC mechanical remote control system, etc.
Product Description
About this item Input Voltage: 4-32VDC; Output Voltage: 5-250VDC; Max Load Current: 25A. Size: 45 x 57 x 28mm/1.76x2.25x1.1inch(L*W*H) Sealed high temperature resistance housing;Resin protective cap;Perfectly soldered copper post. 10 to 25A radiator cooling,more than 25A must on the radiator and fan cooling. Output requirements concatenated fuse or and the varistor. Widely used in computer external link devices, high-power thyristor triggers, and industrial automation devices. Such as thermostat and resistance furnace control, AC motor control, solenoid valve control, copier and fully automatic washing machine control, lighting, and stage lighting control, CNC mechanical remote control system, etc. ›
