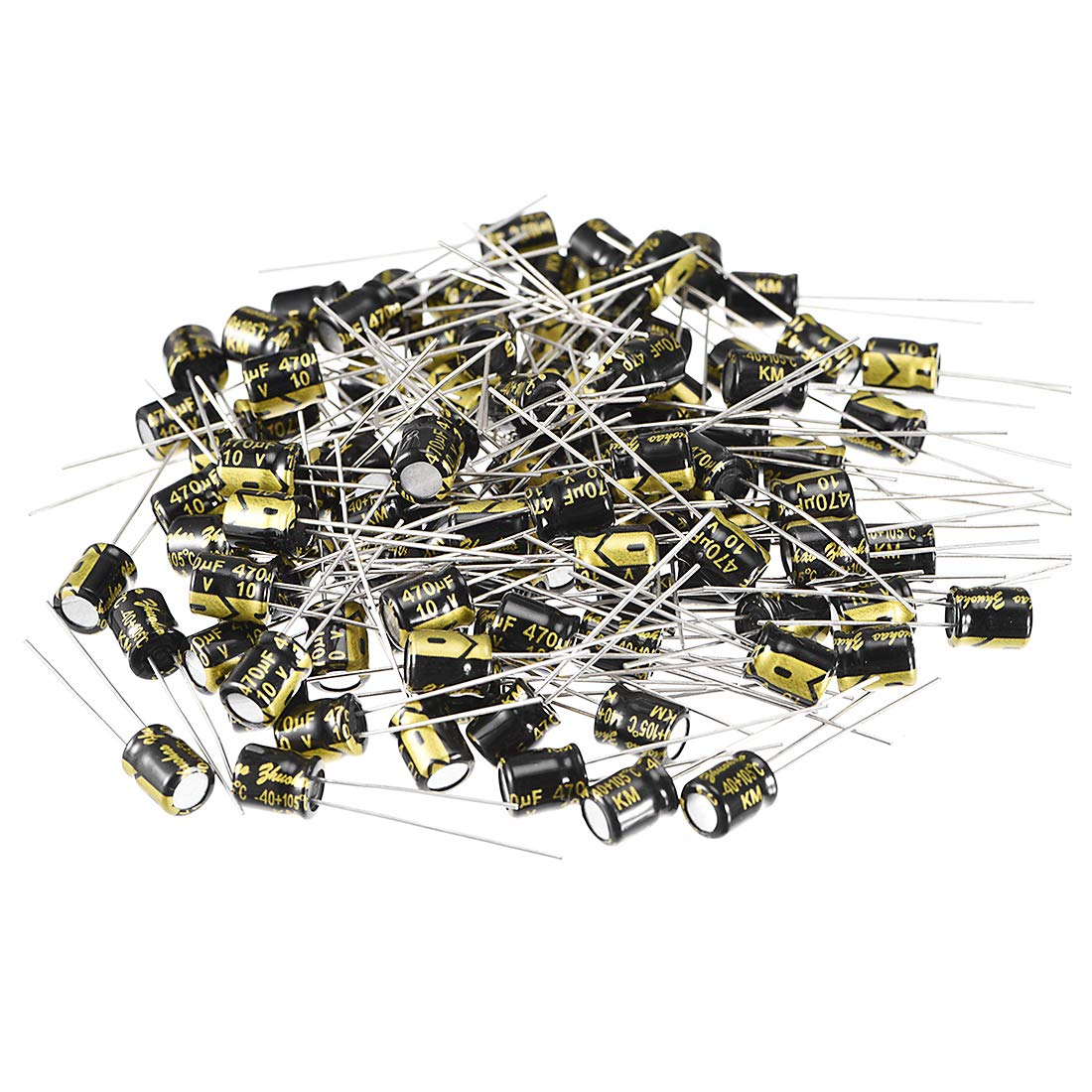

Aluminum Radial Electrolytic Capacitor with 470uF 10V 105 Celsius Life 2000H 6 x 7 mm Black 100pcs

Key Features

• Product Name Aluminum Electrolytic Capacitor;Maximum Operating Temperature 105 Celsius.
• Rated Voltage 10V; Capacitance 470uF; Capacitance Tolerance ±20%(120Hz,+20 Celsius); Standard Load Life 2000hrs
• Body Size 6 x 7mm/0.24" x 0.28"(D*L); Lead Length 25mm/0.98", 20mm/0.79"; Lead Pitch 2.5mm/0.1"
• Application Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
• Package Content 100(+/-2%) x Electrolytic Capacitors

Product Description

Features

Standard General Purpose.Radial lead, aluminum electrolytic capacitor.The longer lead is positive electrode and the shorter one is negative electrode. Notice:1.Capacitance: Don't change the capacitance.2.Voltage: You can go higher, but don't go lower.3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing. Product Name : Aluminum Electrolytic CapacitorType: Radial LeadFeature: For StandardCategory Temperature Range: -40 ~ + 105 Celsius(6.3~100V)Rated Voltage: 10V;Capacitance: 470uF;Capacitance Tolerance: ±20%(120Hz,+20 Celsius);Standard Load Life: 2000hrsBody Size: 6 x 7mm/0.24" x 0.28"(D*L);Lead Length: 25mm/0.98", 20mm/0.79";Lead Pitch : 2.5mm/0.1"Lead Diameter :0.5mmSize : 100pcs 470UF 10V 6x7mm

Package Content

100(+/-2%) x Electrolytic Capacitors
