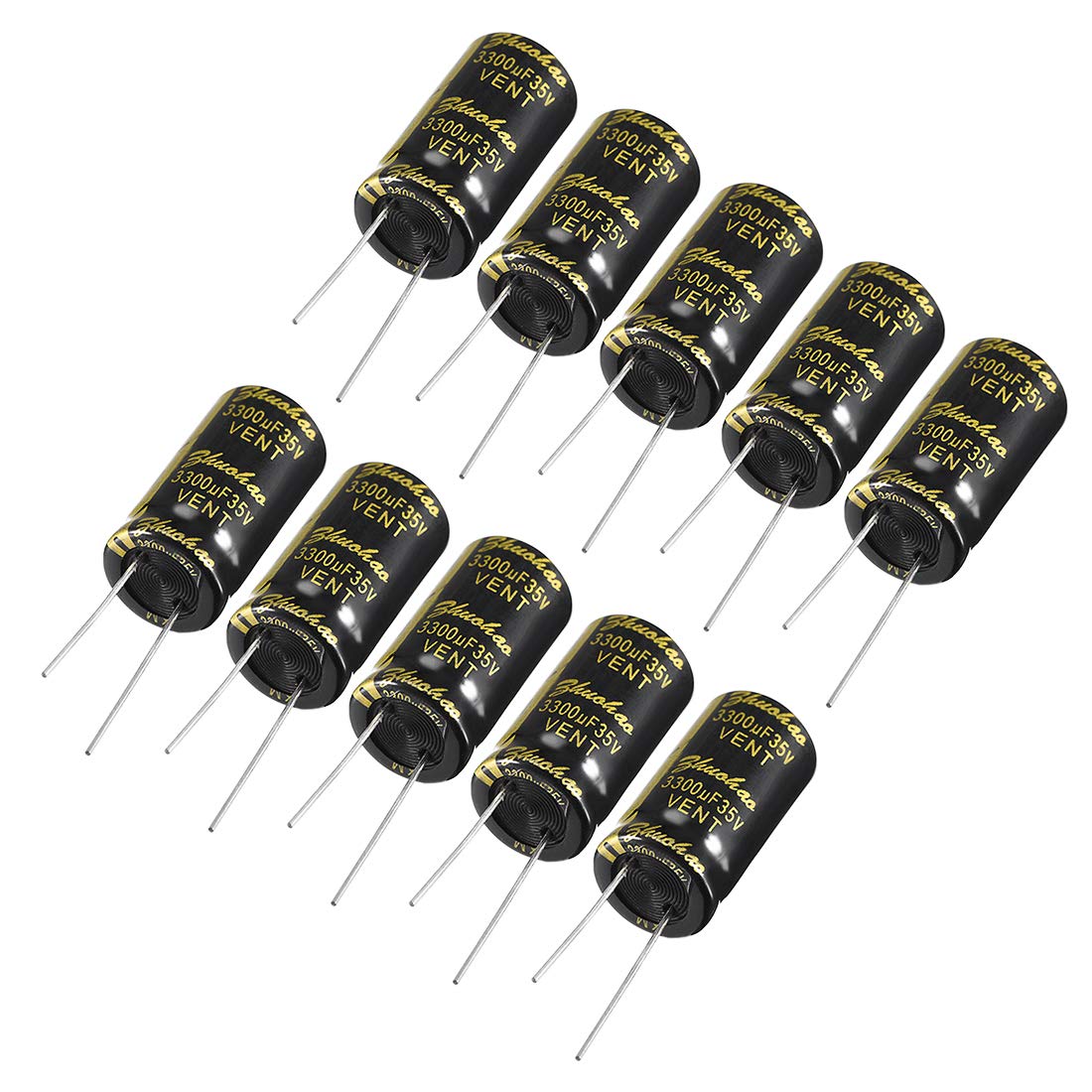

Aluminum Radial Electrolytic Capacitor with 3300uF 35V 105 Celsius Life 2000H 16 x 30 mm Black 10pcs

Key Features

• Product Name Aluminum Electrolytic Capacitor;Maximum Operating Temperature 105 Celsius.
• Rated Voltage 35V; Capacitance 3300uF; Capacitance Tolerance ±20%(120Hz,+20 Celsius); Standard Load Life 2000hrs
• Body Size 16 x 30mm/0.63" x 1.18"(D*L); Lead Length 29mm/0.94", 24mm/1.14"; Lead Pitch 7.5mm/0.3"
• Application Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
• Package Content 10 x Electrolytic Capacitors

Product Description

Features

Standard General Purpose.Radial lead, aluminum electrolytic capacitor.The longer lead is positive electrode and the shorter one is negative electrode. Notice:1.Capacitance: Don't change the capacitance.2.Voltage: You can go higher, but don't go lower.3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing. Product Name : Aluminum Electrolytic CapacitorType: Radial LeadFeature: For StandardCategory Temperature Range: -40 ~ + 105 Celsius(6.3~100V)Rated Voltage: 35V;Capacitance: 3300uF;Capacitance Tolerance: ±20%(120Hz,+20 Celsius);Standard Load Life: 2000hrsBody Size: 16 x 30mm/0.63" x 1.18"(D*L);Lead Length: 29mm/0.94", 24mm/1.14";Lead Pitch : 7.5mm/0.3"Lead Diameter :0.8mmSize : 10pcs 3300UF 35V 16x30mm

Package Content

10 x Electrolytic Capacitors
