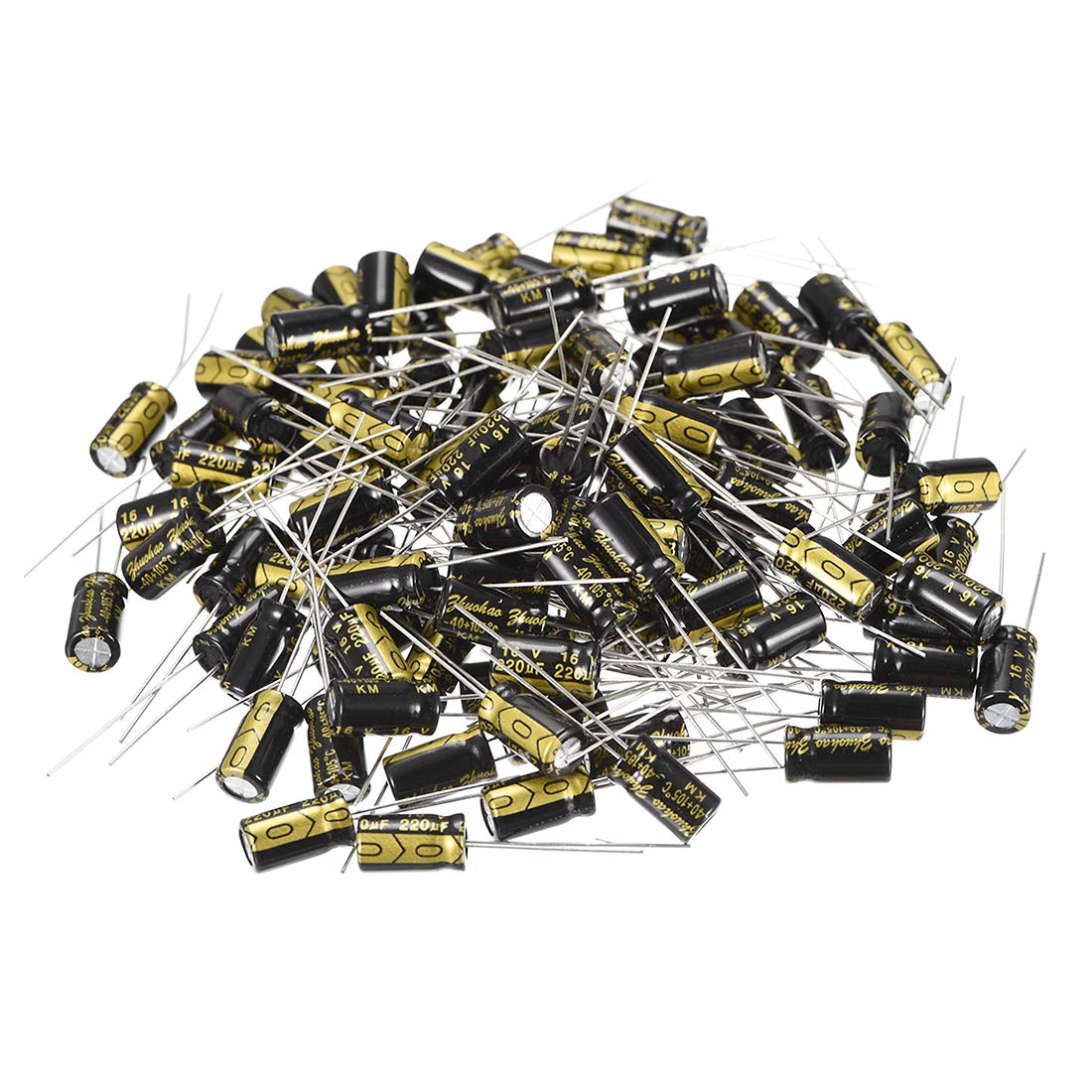

Aluminum Radial Electrolytic Capacitor with 220uF 16V 105 Celsius Life 2000H 6.3 x 11 mm Black 100pcs

Key Features

• Product Name Aluminum Electrolytic Capacitor;Maximum Operating Temperature 105 Celsius.
• Rated Voltage 16V; Capacitance 220uF; Capacitance Tolerance ±20%(120Hz,+20 Celsius); Max Ripple Current at 105 Celsius 120Hz 213mA; Standard Load Life 2000hrs
• Body Size 6.3 x 11mm/0.25" x 0.43"(D*L); Lead Length 29mm/1.14", 24mm/0.94"; Lead Pitch 2.5mm/0.098"
• Application Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
• Package Content 100(+/-2%) x Electrolytic Capacitors

Product Description

Features

Standard General Purpose.Radial lead, aluminum electrolytic capacitor.The longer lead is positive electrode and the shorter one is negative electrode. Notice:1.Capacitance: Don't change the capacitance.2.Voltage: You can go higher, but don't go lower.3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing. Product Name : Aluminum Electrolytic CapacitorType: Radial LeadFeature: For StandardCategory Temperature Range: -40 ~ + 105 Celsius(6.3~100V)Rated Voltage: 16V;Capacitance: 220uF;Capacitance Tolerance: ±20%(120Hz,+20 Celsius);Max Ripple Current at 105 Celsius 120Hz: 213mA;Standard Load Life: 2000hrsBody Size: 6.3 x 11mm/0.25" x 0.43"(D*L);Lead Length: 29mm/1.14", 24mm/0.94";Lead Pitch : 2.5mm/0.098"Lead Diameter :0.5mmSize : 100pcs 220UF 16V 6.3x11mm

Package Content

100(+/-2%) x Electrolytic Capacitors
