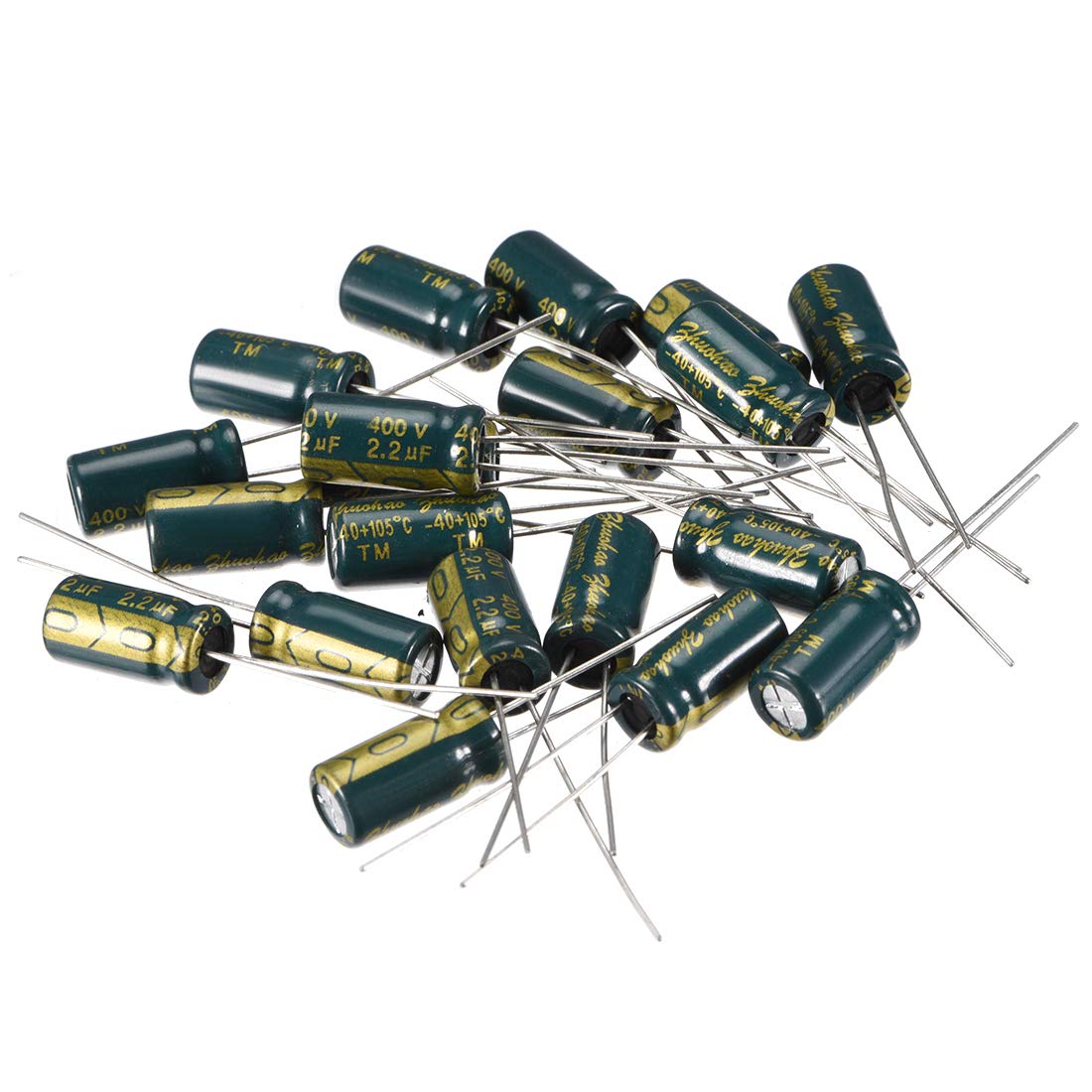

Aluminum Radial Electrolytic Capacitor Low Green with 2.2uF 400V 105 Celsius Life 3000H 6.3 X 12 Mm High Ripple Current,Low Impedance 20pcs

Key Features

• Product Name Aluminum Electrolytic Capacitor;Maximum Operating Temperature 105 Celsius.
• Rated Voltage 400V; Capacitance 2.2uF; Capacitance Tolerance ±20%(120Hz,+20 Celsius); Standard Load Life 3000hrs
• Body Size 6.3 x 12mm/0.25" x 0.47"(D*L); Lead Length 25mm/0.98", 20mm/0.78"; Lead Pitch 2.5mm/0.1"
• Application Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
• Package Content 20 x Electrolytic Capacitors

Product Description

Features

High Ripple Current,Low Impedance.Radial lead, aluminum electrolytic capacitor.The longer lead is positive electrode and the shorter one is negative electrode. Notice:1.Capacitance: Don't change the capacitance.2.Voltage: You can go higher, but don't go lower.3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing. Product Name : Aluminum Electrolytic CapacitorType: Radial LeadFeature: High Ripple Current,Low ImpedanceCategory Temperature Range: -40 ~ + 105 Celsius(6.3~100V)Rated Voltage: 400V;Capacitance: 2.2uF;Capacitance Tolerance: ±20%(120Hz,+20 Celsius);Standard Load Life: 3000hrsBody Size: 6.3 x 12mm/0.25" x 0.47"(D*L);Lead Length: 25mm/0.98", 20mm/0.78";Lead Pitch : 2.5mm/0.1"Lead Diameter :0.5mmSize : 20pcs 2.2UF 400V 6.3x12mm

Package Content

20(+/-2%)x Electrolytic Capacitors
