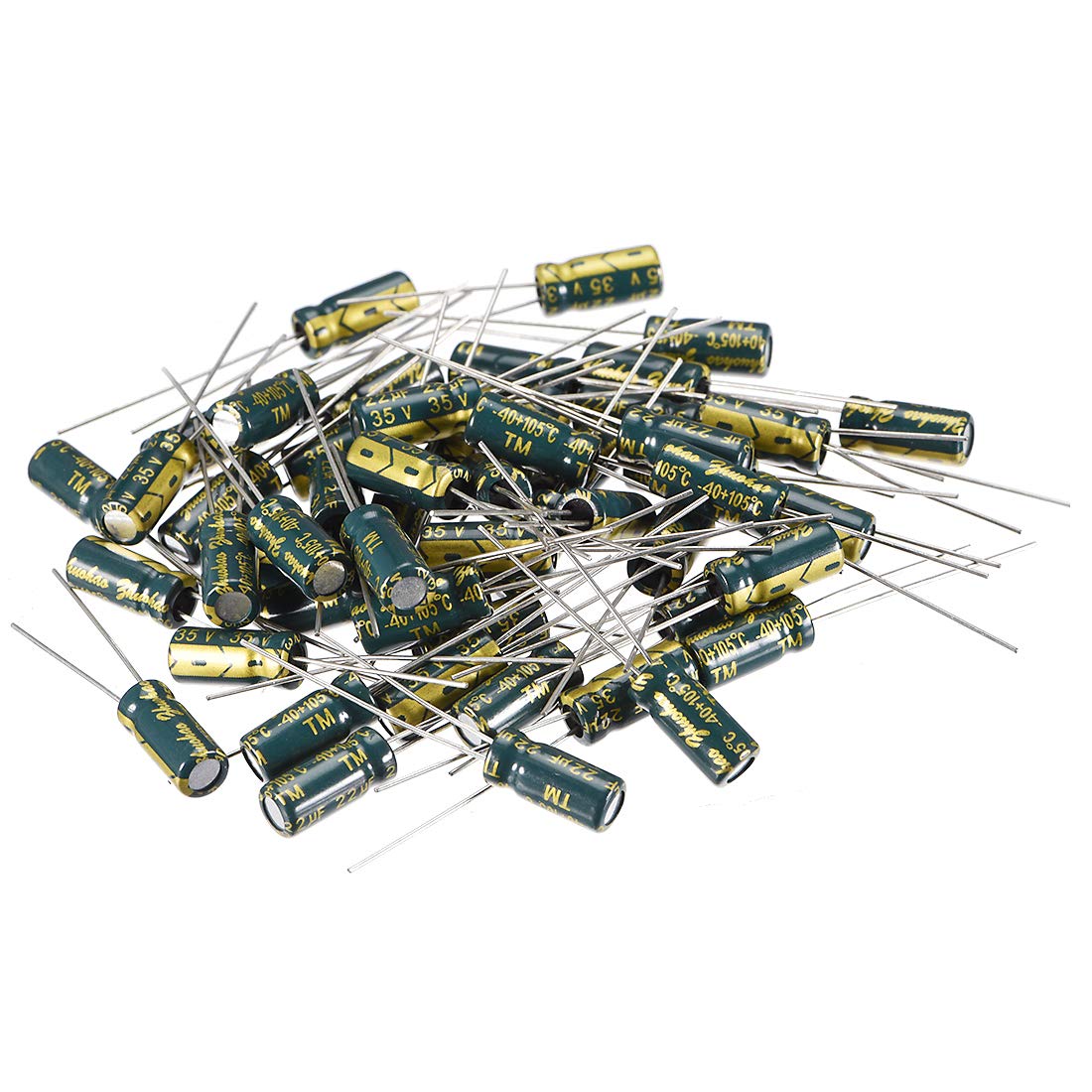

Aluminum Radial Electrolytic Capacitor Low ESR Green with 22uF 35V 105 Celsius Life 3000H 5 x 11 mm High Ripple Current,Low Impedance 50pcs

Key Features

• Product Name Aluminum Electrolytic Capacitor;Maximum Operating Temperature 105 Celsius.
• Rated Voltage 35V; Capacitance 22uF; Max Ripple Current at 105 Celsius 100KHz 210mA; Capacitance Tolerance ±20%(120Hz,+20 Celsius); Standard Load Life 3000hrs
• Body Size 5 x 11mm/0.19" x 0.43"(D*L); Lead Length 24mm/0.94", 19mm/0.74"; Lead Pitch 2mm/0.07"
• Application Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
• Package Content 50(+/-2%)x Electrolytic Capacitors

Product Description

Features

High Ripple Current,Low Impedance.Radial lead, aluminum electrolytic capacitor.The longer lead is positive electrode and the shorter one is negative electrode. Notice:1.Capacitance: Don't change the capacitance.2.Voltage: You can go higher, but don't go lower.3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing. Product Name : Aluminum Electrolytic CapacitorType: Radial LeadFeature: High Ripple Current,Low ImpedanceCategory Temperature Range: -40 ~ + 105 Celsius(6.3~100V)Rated Voltage: 35V;Capacitance: 22uF;Capacitance Tolerance: ±20%(120Hz,+20 Celsius);Max Ripple Current at 105 Celsius 100KHz: 210mAStandard Load Life: 3000hrsBody Size: 5 x 11mm/0.19" x 0.43"(D*L);Lead Length: 24mm/0.94", 19mm/0.74";Lead Pitch : 2mm/0.07"Lead Diameter :0.5mmSize : 50pcs 22UF 35V 5x11mm

Package Content

50(+/-2%)x Electrolytic Capacitors

Specifications
