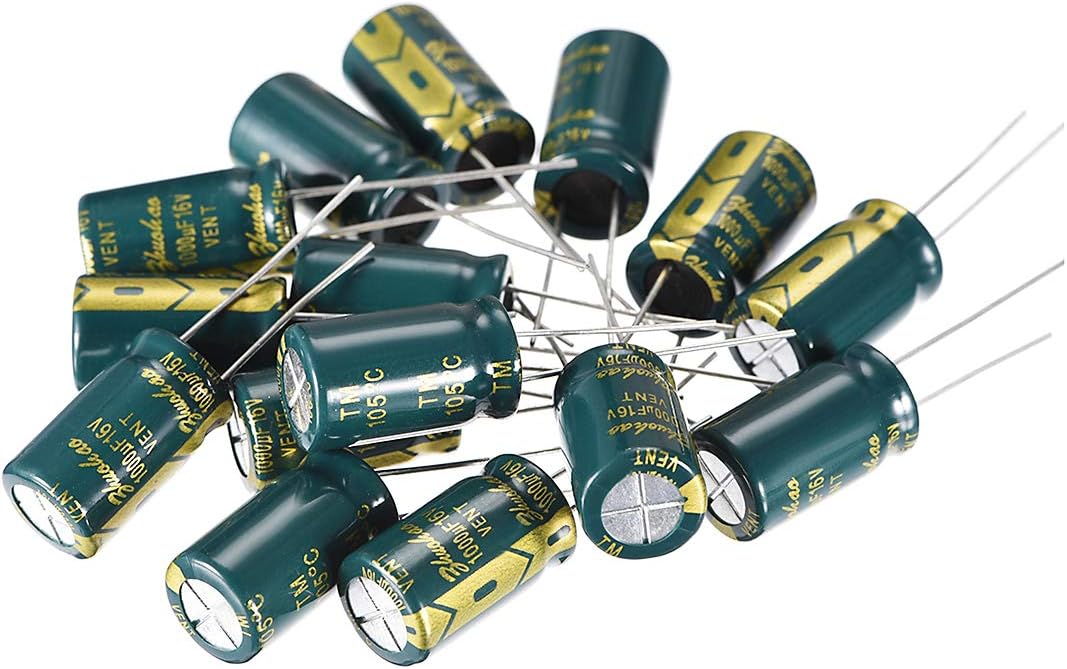

Aluminum Radial Electrolytic Capacitor Low ESR Green with 1000UF 16V 105 Celsius Life 3000H 10 x 17 mm High Ripple Current,Low Impedance 15pcs

Key Features

• Product Name Aluminum Electrolytic Capacitor;Maximum Operating Temperature 105 Celsius.
• Rated Voltage 16V; Capacitance 1000uF; Capacitance Tolerance ±20%(120Hz,+20 Celsius); Standard Load Life 3000hrs
• Body Size 10 x 17mm/0.39" x 0.67"(D*L); Lead Length 24mm/0.94", 20mm/0.79"; Lead Pitch 5mm/0.2"
• Application Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
• Package Content 15 x Electrolytic Capacitors

Product Description

Features

High Ripple Current,Low Impedance.Radial lead, aluminum electrolytic capacitor.The longer lead is positive electrode and the shorter one is negative electrode. Notice:1.Capacitance: Don't change the capacitance.2.Voltage: You can go higher, but don't go lower.3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing. Product Name : Aluminum Electrolytic CapacitorType: Radial LeadFeature: High Ripple Current,Low Impedance.Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V)Rated Voltage: 16V;Capacitance: 1000uF;Capacitance Tolerance: ±20%(120Hz,+20 Celsius);Standard Load Life: 3000hrsBody Size: 10 x 17mm/0.39" x 0.67"(D*L);Lead Length: 24mm/0.94", 20mm/0.79";Lead Pitch : 5mm/0.2"Lead Diameter :0.7mmSize : 15pcs 1000UF 16V 10x17mm

Package Content

15 x Electrolytic Capacitors
