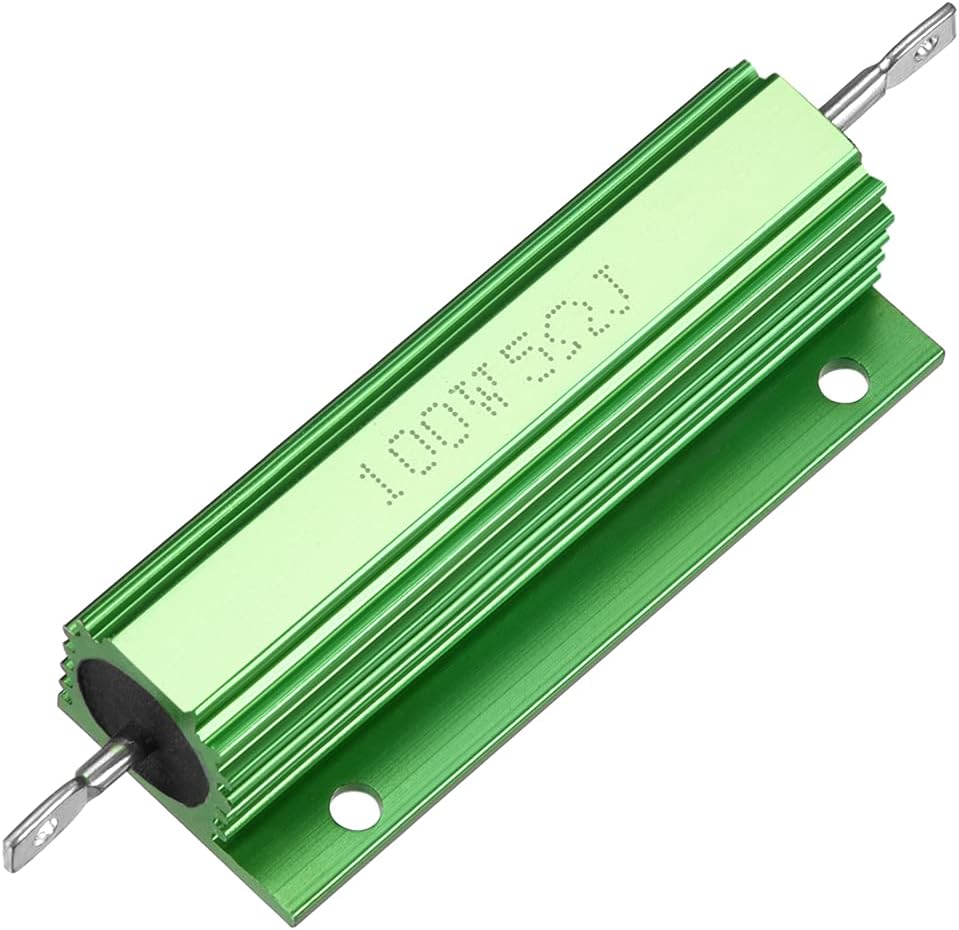

Aluminum Case Resistor 100W 5 Ohm Wirewound Green for LED Replacement Converter

Key Features

• Main Body Length 60 mm/ 2.34 inches
• 100 W and 5 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various applications because of the wide resistance range.
• This 100W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
• Board length 2.32 inches(59mm) and two rods with 2mm hole for a connection. Dia. 3mm hole for holding, which will fit #2 Screws(or M2.3 nuts)
• Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.

Product Description

100 W and 5 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various applications because of the wide resistance range.Board length 2.32 inches(59mm) and two rods with 2mm hole for a connection. Dia. 3mm hole for holding, which will fit #2 Screws(or M2.3 nuts)A great solution for the flush LED, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.Specification:Main Body Length: 60 mm/ 2.34 inchesPower: 100 WRated Resistance: 5 RTolerances: 5%(J)Connection Type: Rod terminals with holeRod Length: 12mm/0.47 inchesScrew Hole: 3mm(Fit #2 or M2.3 nuts)Distance between screw hole: 45mmWeight: 30g/1.06 OzMaterials: Nickel alloys Wire Wound Resistor with Aluminum CaseColor: GreenSuggestion:a. The load resistor will get huge hot, please don't touch it when the resistor is working. Because aluminum resistor is a braking device that transfers Electric energy to Thermal energy. This is a normal physical phenomenon.b. The load resistor should be mounted on metal board, not on flammable board such as plastic board, rubber, paper, wood and etc.c. We recommend a 30%-50% increase in rated power based on your actual load power and add a heat sink device when it is necessary.If you choose a 30% increase in rated power, you must add a heat sink device.If you choose a 50% increase in rated power, you can add a heat sink device for the best use of its performance.

Package Content

1x 100W 5 Ohm Aluminum Housed Resistor

Specifications
