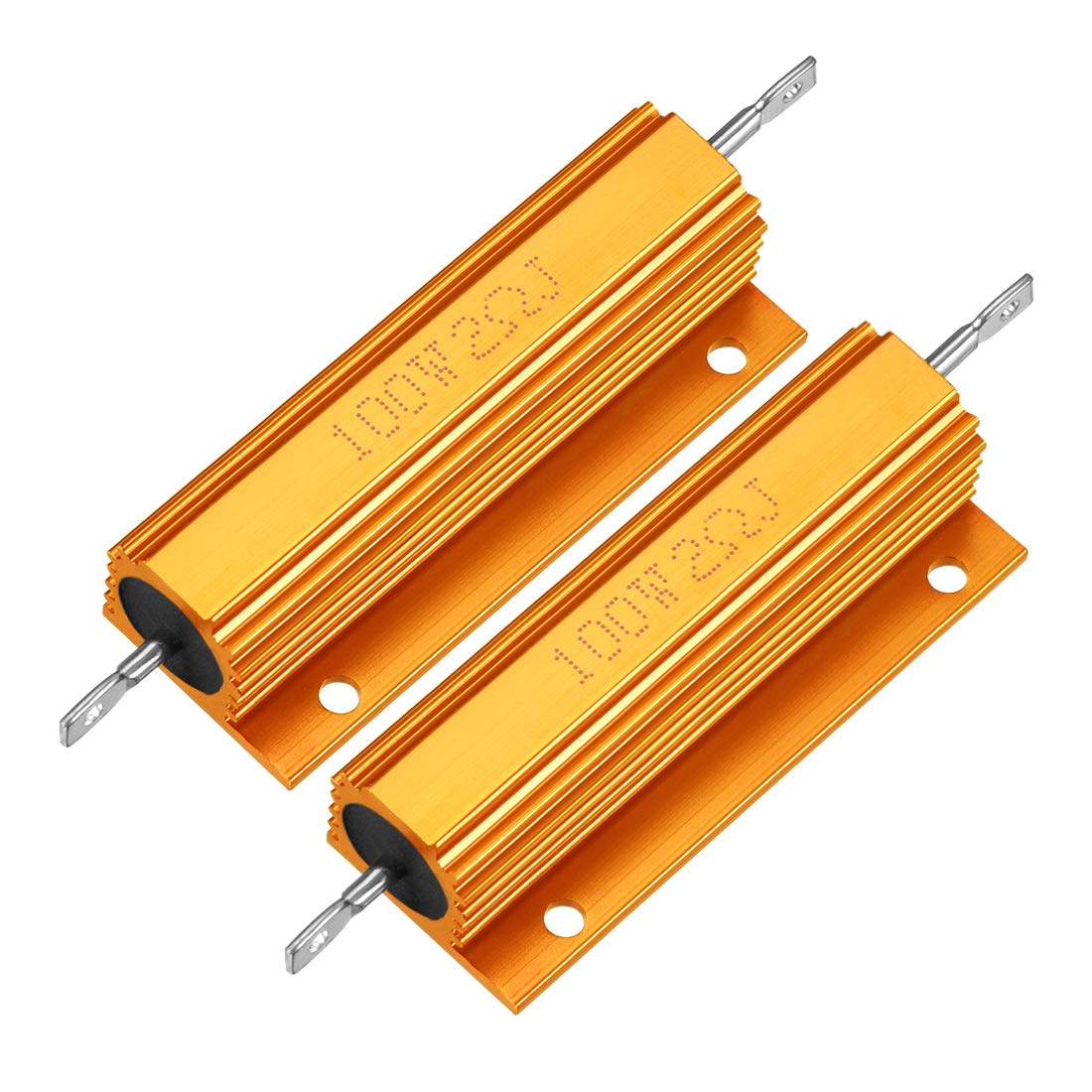

Aluminum Case Resistor 100W 2 Ohm Wirewound Yellow for LED Replacement Converter 100W 2RJ 2pcs

Key Features

• 100 Wattage and 2 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
• Aluminum Housed. An insulated cover on the wires would keep the heat out. Hence, the cooling job was achieved by aluminum case.
• This 100W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
• Board length 2.32 inches(59mm) and two rods with 2mm hole for a soldering connection. Dia. 3.2mm anchoring hole for holding
• Reliable. Problems like the flush LED would have a great solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.

Product Description

Description

1. Wattage and 2 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.2. Aluminum Housed. An insulated cover on the wires would keep the heat out. Hence, the cooling job was achieved by aluminum case.3 This 100W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.4. Board length 2.32 inches(59mm) and two rods with 2mm hole for a soldering connection. Dia. 3.2mm anchoring hole for holding.5. Reliable. Problems like the flush LED would have a great solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.Specification:Main Body Length: 59 mm/ 2.32 inchesPower: 100 WattageRated Resistance: 2 RTolerances: 5%(J)Connection Type: Rod terminals with holeRod Length: 12mm/0.47 inchesScrew Hole: 3.2mmDistance between screw hole: 45mmWeight: 60g/2.1 OzMaterials: Nickel alloys Wire Wound Resistor with Aluminum CaseColor: Yellow

Package Content

2 x 100W 2R Aluminum Housed Resistor
