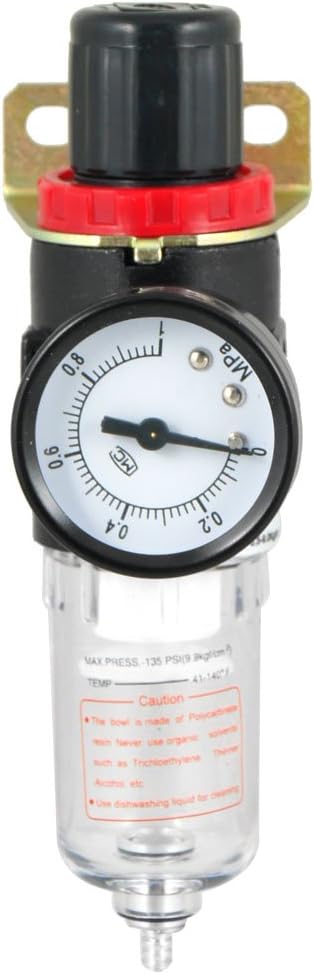

AFR - 2000 Adjustable Polycarbonate Air Pneumatic Filter Regulator

Key Features

• Product Name Pneumatic Filter Regulator;Model AFR-2000;Operating Fluid Max Pressure 9.9kgf/cm2
• Adjustable Pressure Range 0.5-9.0kgf/cm2;Bowl Material Polycarbonate;Operating Temperature Range 5AC -60 AC;Joint Pipe Bore PT1/4"
• Pressure Gauge Range 0-1MPa, 0-10kgf/cm2;Total Size 4.2 x 4 x 15.5cm/ 1.7" x 1.6" x 6.1" (L*W*H);Pressure Gauge Thread Diameter 10mm/ 0.39"
• Pressure Gauge Size 4.1 x 2.5cm/ 1.6" x 0.98"(D*T);Mount Hole Size 8 x 7mm/ 0.31" x 0.28"(L*W)
• Material Metal, Plastic;Net Weight 225g;Package Content 1 x Pneumatic Filter Regulator, 1 x Pressure Gauge, 1 x Install Stand

Product Description

Filter and regulator together as one part, make it has compact dimension. Filter adopts vane design with high division efficiency and differential pressure discharge device. It can discharge water automatically. Regulator valve adopts balanced inlet structure with the advantages of stable pressure, high precision, and quick reaction. Help filter liquid and foreign particles from compressed air line, widely used for pneumatic tool and components.

Specifications
