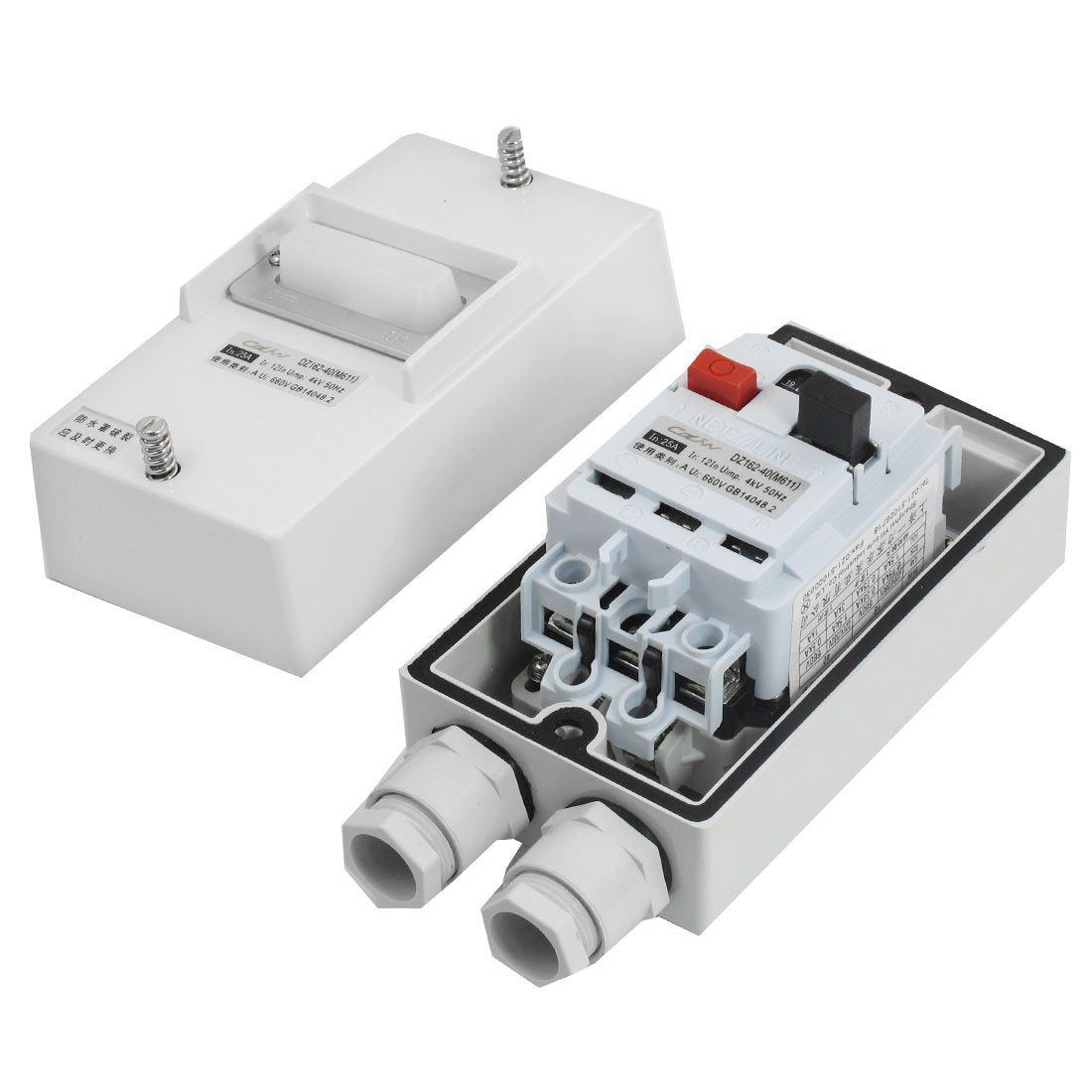

Adjustable Switch Circuit Breaker with Waterproof Box, AC, 660V, 3 Pole, 19 Amp - 25 Amp

Key Features

• Product name circuit breaker; model Number dz162-40(m611);in 25A;ui AC 660V
• IR 12 in; thermal protection range 19A -25A (20â°c); 17A - 23A (40â°c);ump 4KV 50Hz;Inc 40A
• Ue 220V/380V, 660V;ics 1.5Ka(220v/380V), 0.5Ka(660v);icu 3ka(220v/380V), 1ka(660v);instantaneous release Type 1No 1NC
• Number of Poles 3;Overall Size (approx.) 18 x 7.8 x 8.5cm/ 4.3" x 2.4" x 3.4"(L*w*h);cable Hole diameter 17mm/ 0.67";material plastic, electric components
• Color as picture Shown; net weight 6.8G;package content 1 x circuit breaker

Product Description

Features

metal support, white rectangle plastic panel, 25a rated current, AC 660V rated voltage, 1NO 1NC, 3 pole, on/off switch control. White plastic waterproof shell can provide better protection for electronic component of this circuit breaker. Use for protecting overload and short-circuit in the system. It has high breaking capacity and can trip quickly. The products are also used for infrequent on-and-off switching of electric equipment and lighting circuit under the normal condition. Keep safety to cut off the electric circuit when the electric voltage is overload, easy to use.
