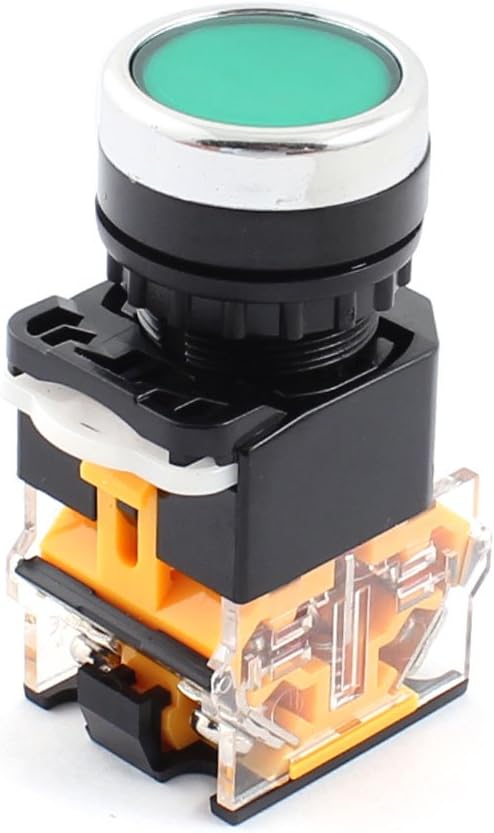

AC400V 10A 22mm Thread DPST 1NO 1NC Momentary Green Push Button Switch

Key Features

• Product Name Push Button Switch; Country of Manufacture CHINA; Material Plastic, Metal; Net Weight 46g
• Package Content 1 x Push Button Switch; Main Color Green, Black; Contact Type DPST(1NO 1NC)
• Action Type Momentary; Ui AC 400V; Ith 10A
• AC-15 AC 220V/380V 5.5A/4A; Screws Terminal Quantity 4; Panel Cutout Diameter 22mm/0.87"
• Fit Panel Max. Thickness 6mm/0.24"; Button Diameter 24mm/0.94"; Total Size(Approx) 41 x 30 x 66mm/1.6" x 1.2" x 2.6"(L*W*H)

Product Description

Momentary Push Button Switch, 22mm thread diameter. Widely used for control of electromagnetic starter, contactor and relay, or other circuit for controlling use.
