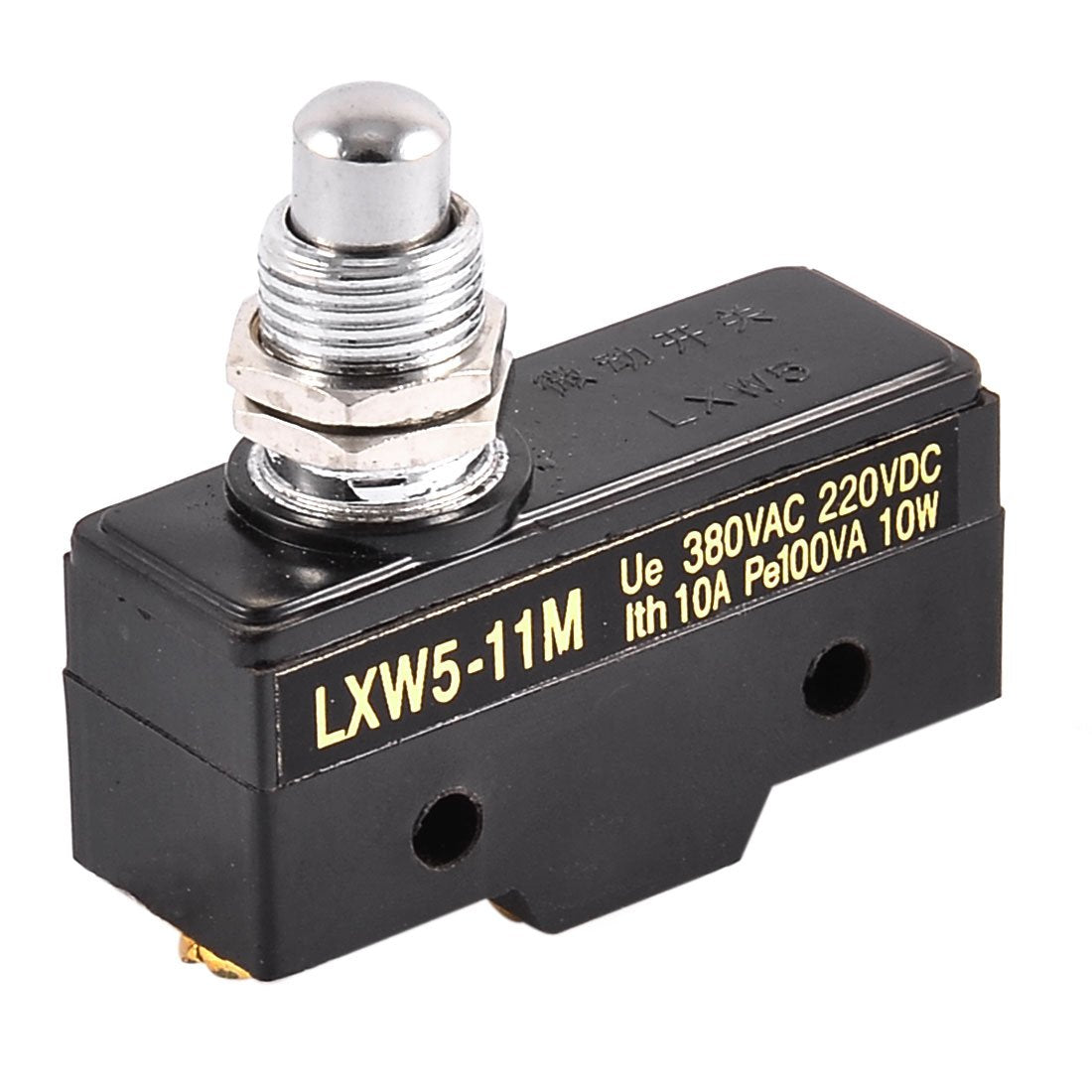

AC380V DC220V 10A Push Plunger Actuated Momentary Limit Switch

Key Features

• Action Type Momentary; Contact Type SPDT; Actuator Type Push Plunger; Rating Ue AC 380V DC 220V; Product Name Limit Switch
• Country of Manufacture CHINA; Brand DMiotech; Material Metal; Net Weight 36g; Package Content 1 x Limit Switch
• Model LXW5-11M; Main Color Black, Silver Tone, Gold Tone; Terminals 3 Screw Terminals; Contact Configuration 1NO,1NC (SPDT); Mounting Type Panel Mount
• Ith 10A; Pe 100VA; Power 10W; Main Body Size 5 x 1.6 x 2cm / 2" x 0.63" x 0.8" (L*W*H)
• Mounting Thread Diameter 11mm / 0.43"; Thread Length 11mm / 0.43"; Plunger Size 8 x 6mm / 0.3" x 0.24" (D*L); Total Height 4.8cm / 1.9"

Product Description

Features

Short Plunge Actuator Type, 1NO+1NC Conatact Congfiguration, 3 Screw Terminals.Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded. Designed to control the movement of a mechanical part.

Specifications
