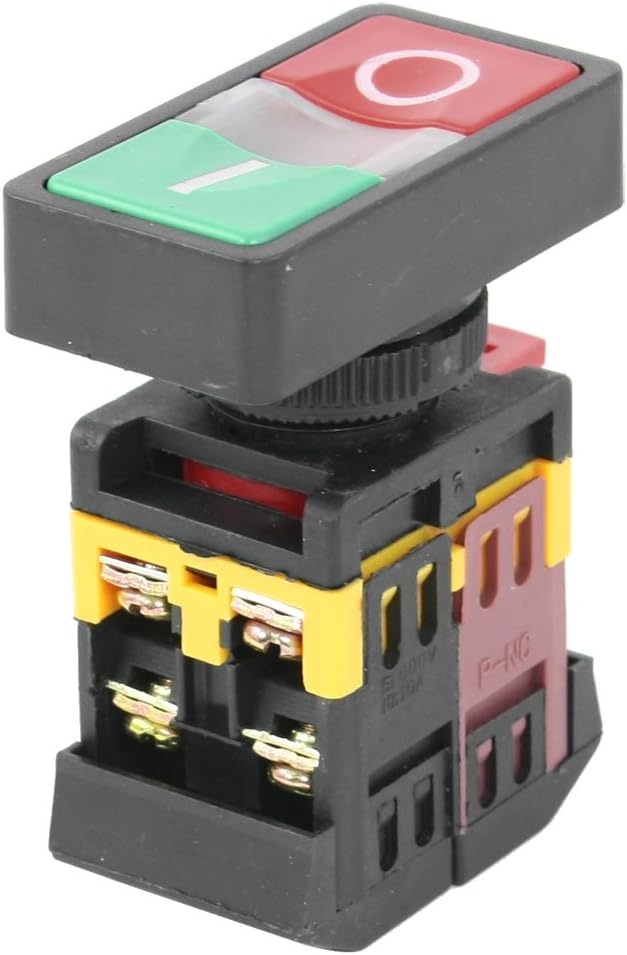

AC 600V 10A Indicator Light I/O START STOP Momentary Push Button Switch

Key Features

• Product Name Push Button Switch;Model No. APBB-22&25N;Action Type Momentary;Contact Type 1NO+1NC
• Ui 600V;Ith 10A;Rated Voltage & Current AC 380V, 10A
• Light Color Yellow;Light Voltage AC 220V-240V;Mounting Hole Diameter 22mm / 0.85"
• Fit Panel Thickness(Adjustable) Max 5mm / 0.2";Overall Size(Approx.) 55 x 30 x 76mm / 2.2" x 1.2" x 3.0"(L*W*H);Material Plastic & Metal
• Color Green, Red, Black;Weight 62g;Package Content 1 x Push Button Switch

Product Description

The momentary push button switch is used in industrial controlling circuits for controlling in electromagnetic starter, Contactor, Relay and other electric circuits.

Specifications
