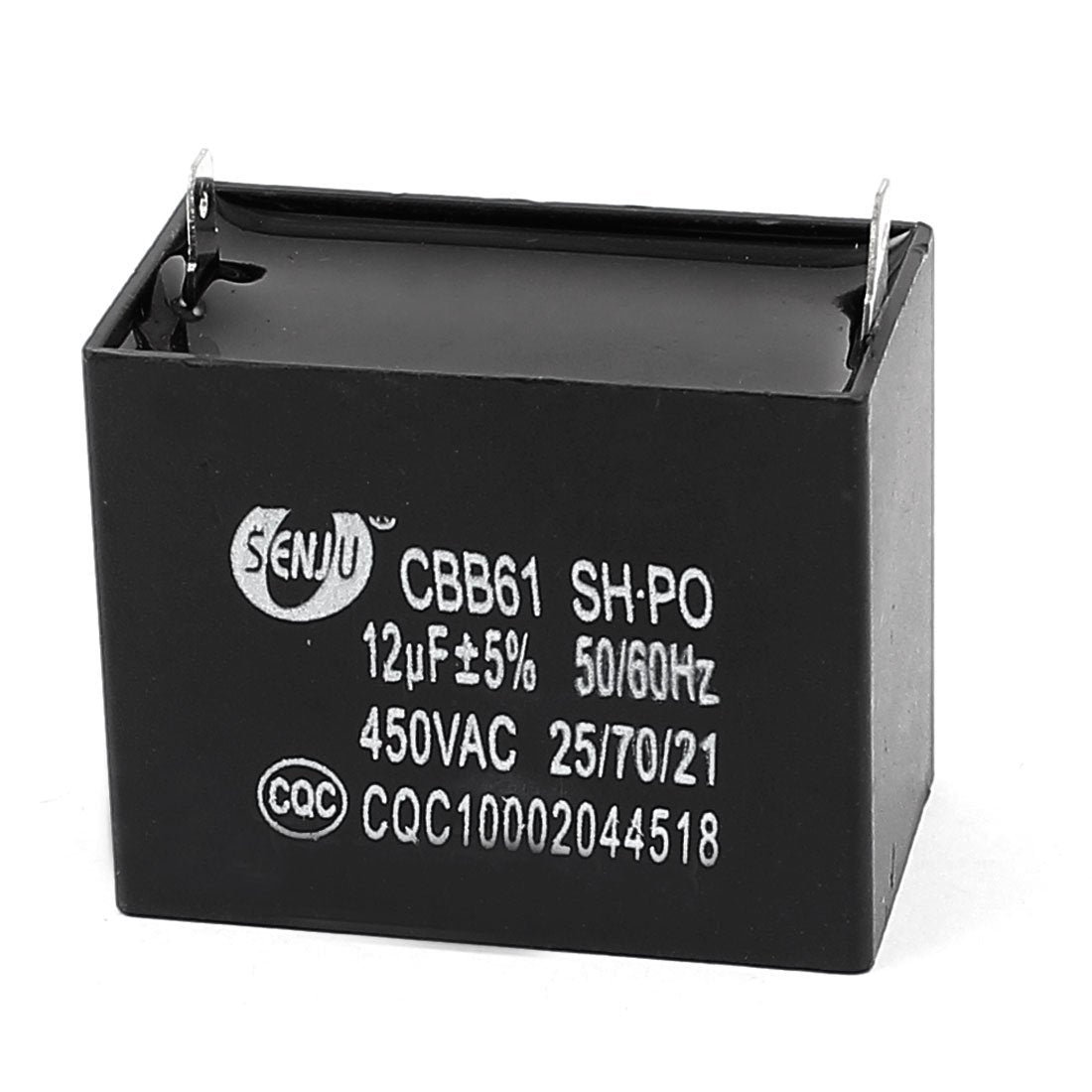

AC 450V 12uF Soldering Air Conditioner Ceiling Motor Capacitor CBB61

Key Features

• Product name motor capacitors; model Cbb61; for air Conditioner, ceiling fan
• Capacitance 12uF; Tolerance +/-5 percent rated Voltage AC 450V
• Temperature coefficient 25/70/21; frequency 50/60Hz; terminal count 2
• Terminal spacing(approx. ) 42mm/1. 7"; Overall Size 3. 8 x 2. 7 x 4. 8cm/1. 5" x 1. 1" x 1. 9"(L*w*h); main material polypropylene film
• Color black; weight 60G; package content 1 x motor capacitors

Product Description

AC450V 12Uf, 2 terminal insert able terminals, soldering, rectangular design, PCB mount. It is wound with polypropylene film dielectric, flame retardant plastic case and epoxy resin end seal. Applied to the starting and better working of motor in 50Hz/60Hz frequency AC power system. Widely used in ceiling fan, Centrifugal fan, fan blower, air Conditioner fan etc.
