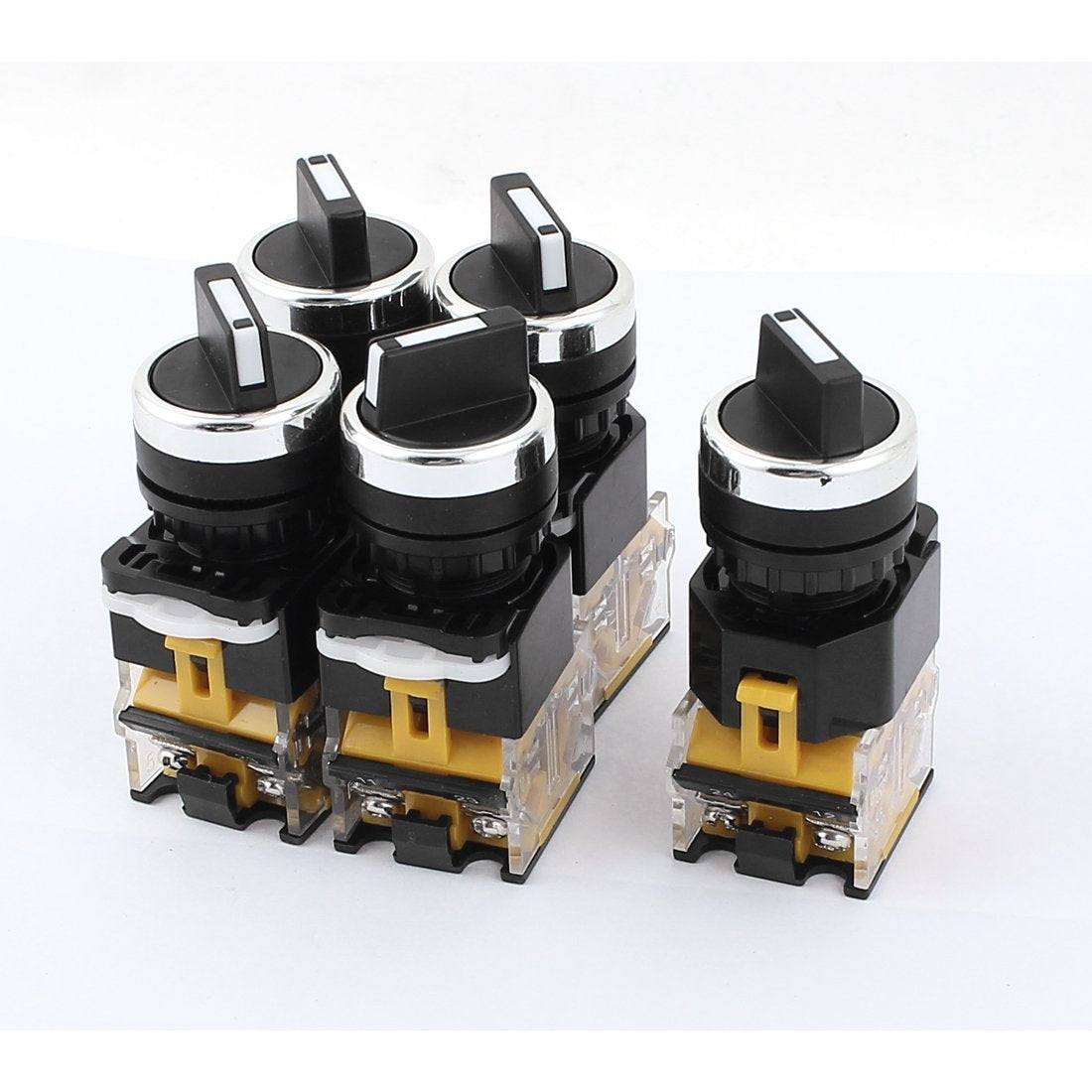

AC 440V 10A, 2 Positions DPST Rotary Selector Select Switch Latching Lock 5 Piece

Key Features

• Product Name Rotary Switch / Selector Switch; Country of Manufacture CHINA; Material Plastic, Metal; Net Weight 239g
• Package Content 5 Pcs x Rotary Switch; Model LA38-203/209B; Main Color Black, Yellow, Silver Tone
• Contact Type 1NO 1NC DPST; Position Number 2; Rating AC 440V 10A
• Ith 10A; Ui 440V; Terminal Quantity 4
• Fit Panel Hole Diameter 21mm / 0.83"; Rotary Knob Diameter 2.9cm / 1.1"; Total Size(Approx) 37 x 30 x 77mm/1.5" x 1.2" x 3" (L*W*H)

Product Description

1. positions, 4 terminals, mounting rotary switch. 2. Widely used for electrical automatic control circuit for send out control signal. 3.

Note

please NOTICE the voltage before ordering and make sure it can work in your area.
