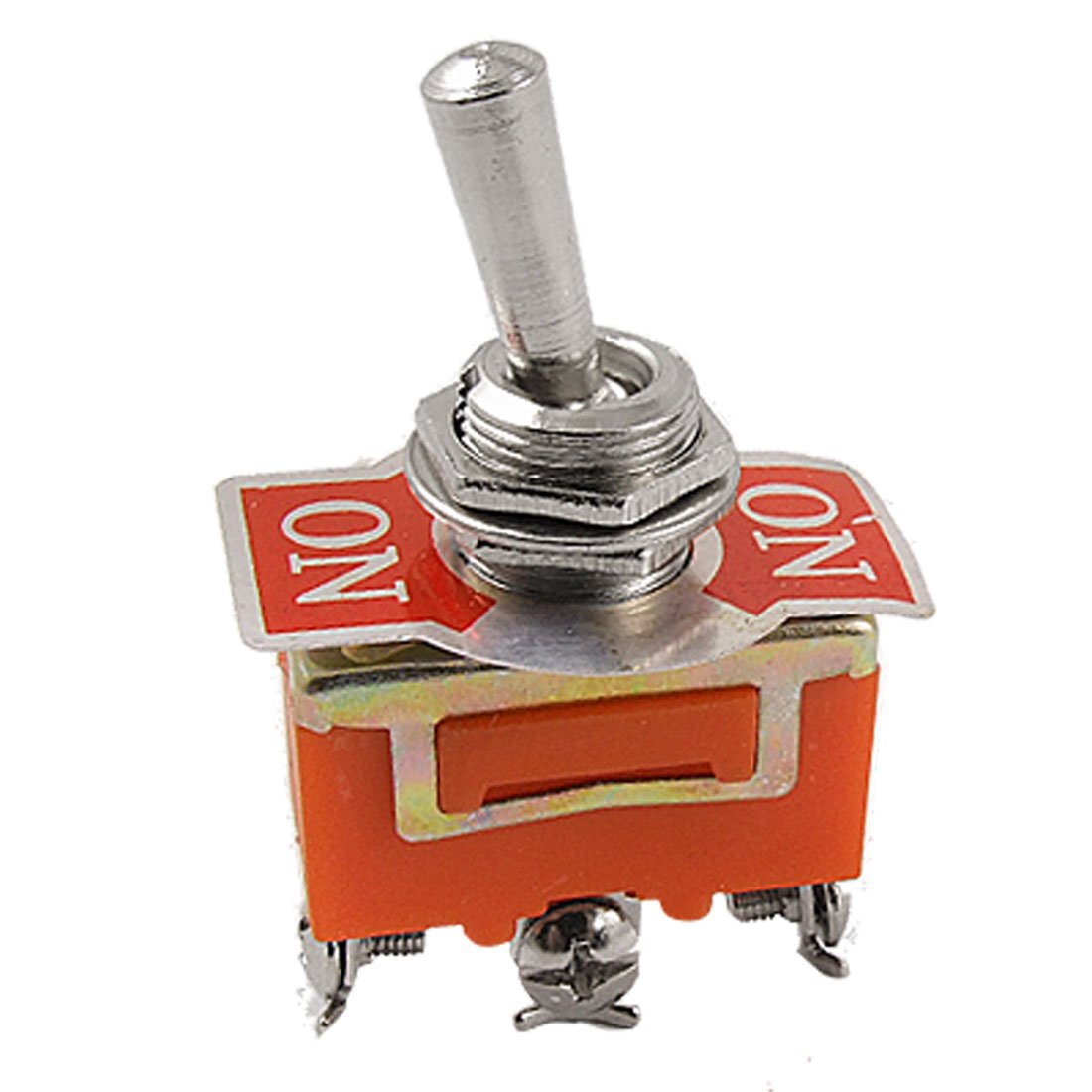

AC 250V 15A Screw Terminals ON/ON 2 Position SPDT Toggle Switch

Key Features

• Product Name Toggle Switch;Pin Number 3 Terminals
• Position 2 Position(On/On);Type SPDT(Latching)
• Mounting Diameter 11.8mm;Total Size(Approx) 2.9 x 1.4 x 5.5cm/ 1.1" x 0.5" x 2.2" (L * W * H)
• Material Plastic & Metal;Color Orange & Silver Tone
• Weight 25g;Package Content 1 x Toggle Switch

Product Description

Please note

The 250V/15A rating in the title is only for purely resistive load, please pay attention to the specifications below for max ratings of other load types: Max Power Rating for AC Resisitive load:AC 15A 250V / AC 16A 125VMax Power Rating for DC Resisitive load:DC 0.5A 250V / DC 0.9A 125VMax Power Rating for AC Lamp: AC 125V 300W / AC 250V 600W Max Power Rating for DC Lamp: DC 30V 3.5A Max Power Rating for AC Motor(Single Phase): AC 250V 400W / AC 125V 300W
