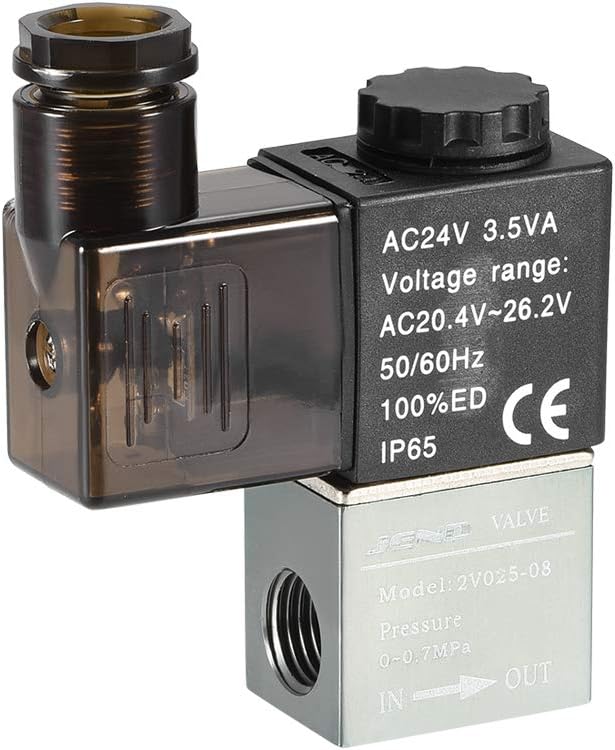

AC 24V 2 Way 2 Position 1/4" PT,Pneumatic Air Electric Control Solenoid Valve,Normally Closed,2V025-08

Key Features

• UNIVERSAL DESIGN - Pneumatic Solenoid Valve Type 2 Port 2 Position Normally closed type ; Voltage AC 24V ; Air Flow In Hole Size 1/4" PT
• MATERIAL - The valve body is made of aluminum alloy and has strong pressure resistance. The inner hole is machined by a special process, with low frictional resistance, low starting air pressure and long service life.
• ADVANTAGE - Guide head made of excellent conductor material with high strength and high frequency response for smoother operation
• EASY TO REPLACE - The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time
• APPLICATION - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

Product Description

Specification:Product Name : Solenoid ValveModel: 2V025-08Net Weight: 154gColor : Black,Silver ToneCV values: 0.25Control Type: Power UpsVoltage : AC 24VValve Type: 2 Port 2 PositionAir Flow In and Out Hole Size : 1/4" PTMain parts material: Aluminum alloyWorking pressure: 0~0.7mpaOperating temperature: -5~60 Degree CelsiusTotal Size : 77mm x 63mm x 22mm / 3.03" x 2.48" x 0.87" (L x W x H) Package Included:1 x Solenoid Valve

Description

1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.2. sealing ring. seals for durability and longer life3.High precision valve stem. Imported lubricants to ensure lubrication and reduce friction during exercise4.High frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation5.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time6. electronic components. The copper coil can work hard for a long time, and the wiring operation is simple.7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted. Attention : 1.The manual button tests the status of the product when it is powered up2.The valve is N / C (normally closed), meaning it will shut down when not powered.The valve is N / C (normally closed), meaning it will shut down when not powered.
