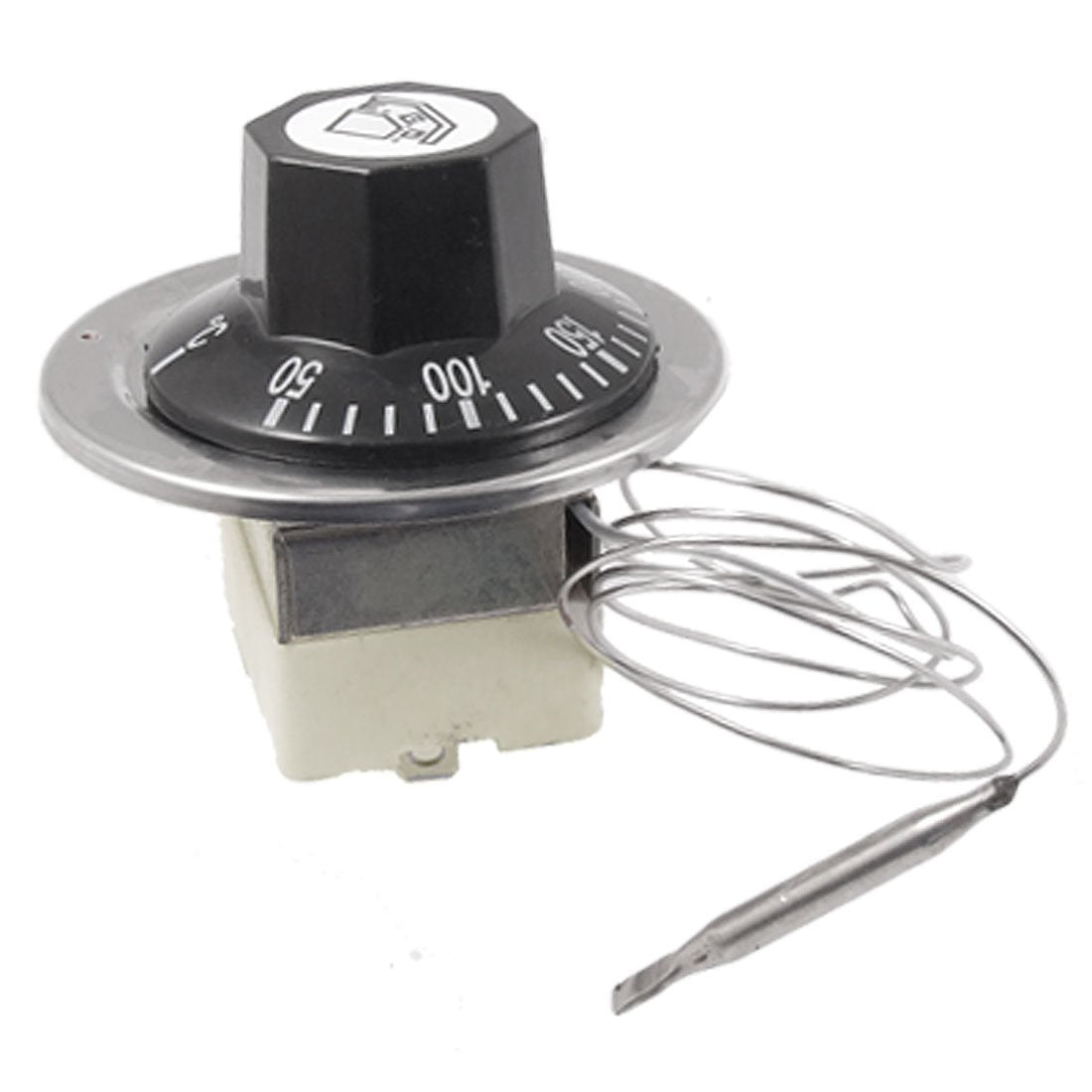

AC 16A 250V 50 to 300 Celsius 3 Pin NC Capillary Thermostat for Electric Oven

Key Features

• Product name temperature capillary thermostat; material plastic, resin, metal; color as picture show
• Power AC 16A, 250V;temp. Rate of change 50 - 300â°c;tube head Size 5 x 50mm/ 0.19" x 0.97" (DEL)
• Capillary Length 70cm/ 27.6";capillary diameter 1mm/ 0.04";base dimensions 43 x 33 x 2.7cm/ 16.9" x 13" x 1.1" (l*w*h)
• Pin Size 6.4 x 9mm/ 0.25" x 0.35" (low);Overall Size (excluding capillary) 6.8 x 7cm/ 2.67" x 2.75" (DTH)
• Net weight 108G;package content 1 x temperature capillary thermostat

Product Description

NC(normal closed), 50-300 Celsius degree, 3 terminals, 56mm probe. Specially designed for electric oven, ideal for damaged part.
