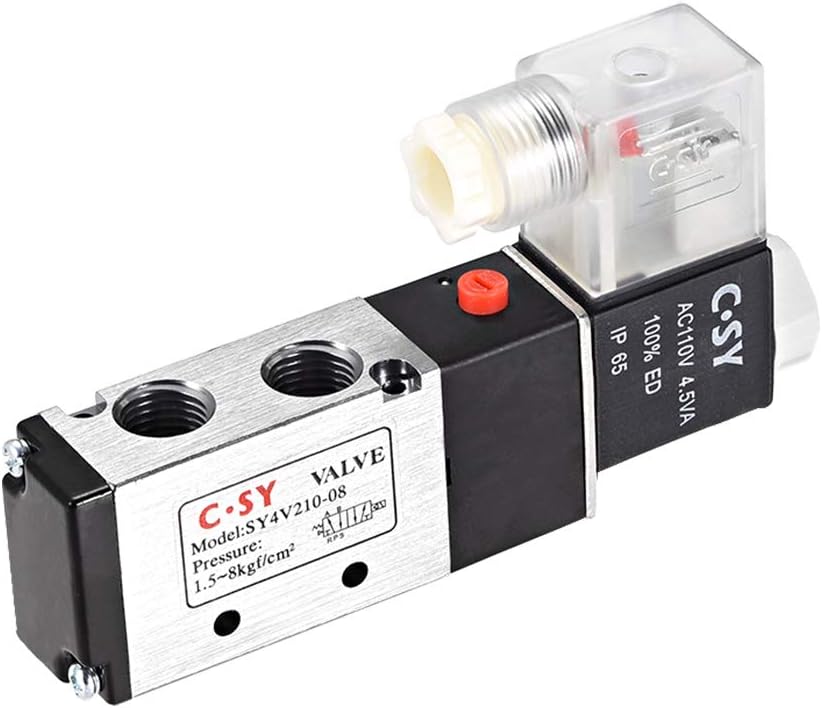

AC 110V 5 Way 2 Position 1/4"PT,Pneumatic Air Control Solenoid Valve,Internally Single Piloted Acting Type w LED Light,4V210-08

Key Features

• 【UNIVERSAL DESIGN】 - Pneumatic Solenoid Valve Type 5 Port 2 Position ; Voltage AC 110V ; Exhaust Hole size 1/8" PT ; Air Flow In Hole Size 1/4" PT
• 【 MATERIAL】 - The electromagnetic valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
• 【ADVANTAGE】 - Air Solenoid Valve hasHigh frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
• 【APPLICATION】 - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
• 【ATTENTION】- Please pay attention to the direction of gas flow and the correct connection when installing. Pay attention to dustproof. It is recommended to install a muffler on the exhaust port.

Product Description

Specification:Product Name : Solenoid ValveModel: 4V210-08Net Weight: 216gColor : Black,Silver ToneCV values: 0.89Control Type: Power UpsVoltage : AC 110VValve Type: 5 Port 2 PositionMounting hole Size : 3.2mm / 0.13"Exhaust Hole size: 1/8" PTAir Flow In Hole Size : 1/4" PTSeal material: NBRMain parts material: Aluminum alloyWorking pressure: 0.15~0.8mpa (21~114 psi)Operating temperature: -5~60 Degree CelsiusTotal Size : 119x 22 x 66mm /4.69" x 0.87" x 2.6" (L x W x H) Package Included:1 x Solenoid Valve

Description

1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.2. sealing ring. seals for durability and longer life3.High precision valve stem. Imported lubricants to ensure lubrication and reduce friction during exercise4.High frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation5.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time6. electronic components. The copper coil can work hard for a long time, and the wiring operation is simple. Lights up when power is on7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

Note

Note

The manual button tests the status of the product when it is powered upWhen the valve is not energized, p on the product map points to A is normally open, and B points to S is normally closed.
