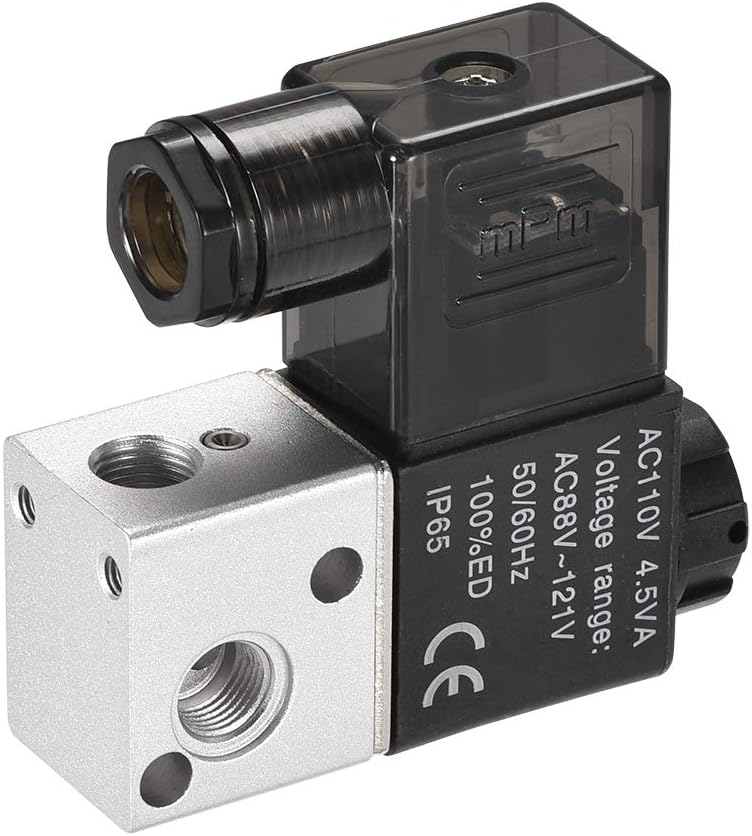

AC 110V 3 Way 2 Position 1/8"PT,Pneumatic Air Electric Control Solenoid Valve,Normally Closed,3V1-06

Key Features

• 【UNIVERSAL DESIGN】 - Pneumatic Solenoid Valve Type 3 Port 2 Position Normally closed type ; Voltage AC 110V ; Air Flow In Hole Size 1/8" PT
• 【 MATERIAL】 - The valve body is made of aluminum alloy and has strong pressure resistance. The inner hole is machined by a special process, with low frictional resistance, low starting air pressure and long service life.
• 【ADVANTAGE】 - Air Solenoid Valve has Guide head made of excellent conductor material with high strength and high frequency response for smoother operation
• 【APPLICATION】 - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
• 【ATTENTION】- The manual button tests the status of the product when it is powered up.Two air intake holes cannot be used at the same time. When using, you need to block one side with a plug.

Product Description

Specification:Product Name : Solenoid ValveModel: 3V1-06Net Weight: 157gColor : Black,Silver ToneCV values: 0.23Control Type: Power UpsVoltage : AC 110VValve Type: 3 Port 2 PositionMounting hole Size : 3.2mm / 0.13"Air Flow In and Out Hole Size : 1/8" PT = 8.6mmMain parts material: Aluminum alloyWorking pressure: 0.15~0.8mpa (21~114 psi)Operating temperature: -5 ~ 60 Degree CelsiusTotal Size : 65mm x 22mm x 60mm /2.56" x 0.87" x 2.36" (L x W x H) Package Included:1 x Solenoid Valve

Description

1.The valve body is made of aluminum alloy and has strong pressure resistance. The inner hole is machined by a special process, with low frictional resistance, low starting air pressure and long service life.2.Using electronic components,copper full-size coils, transparent and excellent in quality.3.Guide head made of excellent conductor material with high strength and high frequency response for smoother operation4.The female thread is clear and smooth. The threaded holes can be seamlessly combined with the joints.5.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time6.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

Note

The manual button tests the status of the product when it is powered up.The valve is N / C (normally closed), meaning it will shut down when not powered.
