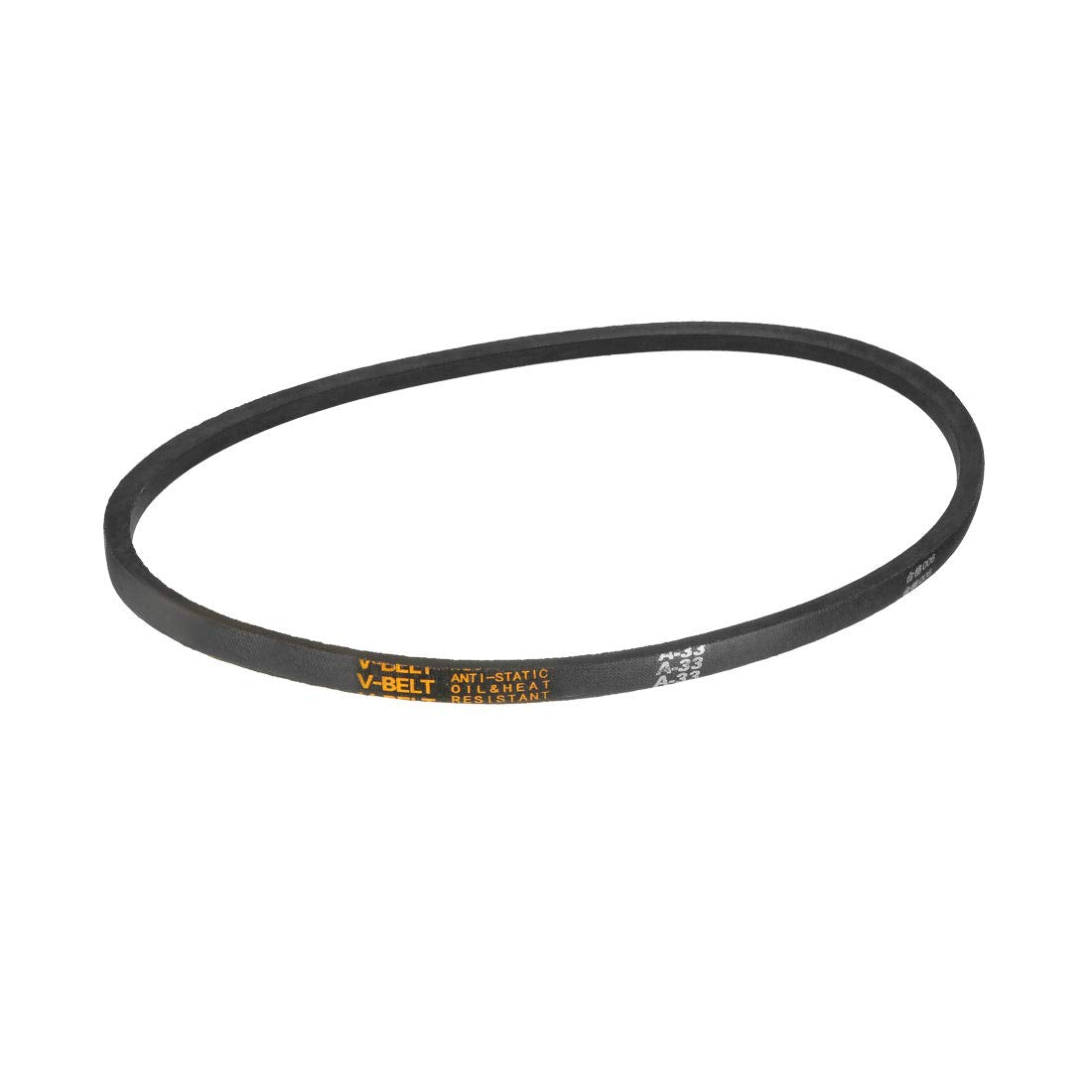

A33 Drive V-Belts 33" Pitch Length 13mm Width 8mm Thick JIS Standard A-Section Rubber Drive Transmission Belt

Key Features

• Size Model A33; Pitch Length 33"; Inner Girth 841mm; Outer Girth 891mm; Top Width 13mm;Thickness 8mm; Angle 40 degree
• Material It is made of neoprene rubber for resistance to oils, water, and some solvents.
• Function To link two or more rotating shafts to transmit power in a drive system. Even load distribution on belt drives and good wear resistance.
• Feature The trapezoidal shape of the belts cross section wedges into the groove of a similarly shaped sheave or pulley to provide traction and alignment.
• Applications Used for drive systems in the automotive, agricultural, textile, printing, mining, and office equipment industries, ect.

Product Description

About this item Size: Model: A33; Pitch Length: 33"; Inner Girth: 841mm; Outer Girth: 891mm; Top Width: 13mm;Thickness: 8mm; Angle: 40 degree Material: It is made of neoprene rubber for resistance to oils, water, and some solvents. Function: To link two or more rotating shafts to transmit power in a drive system. Even load distribution on belt drives and good wear resistance. Feature: The trapezoidal shape of the belts cross section wedges into the groove of a similarly shaped sheave or pulley to provide traction and alignment. Applications: Used for drive systems in the automotive, agricultural, textile, printing, mining, and office equipment industries, ect. ›
