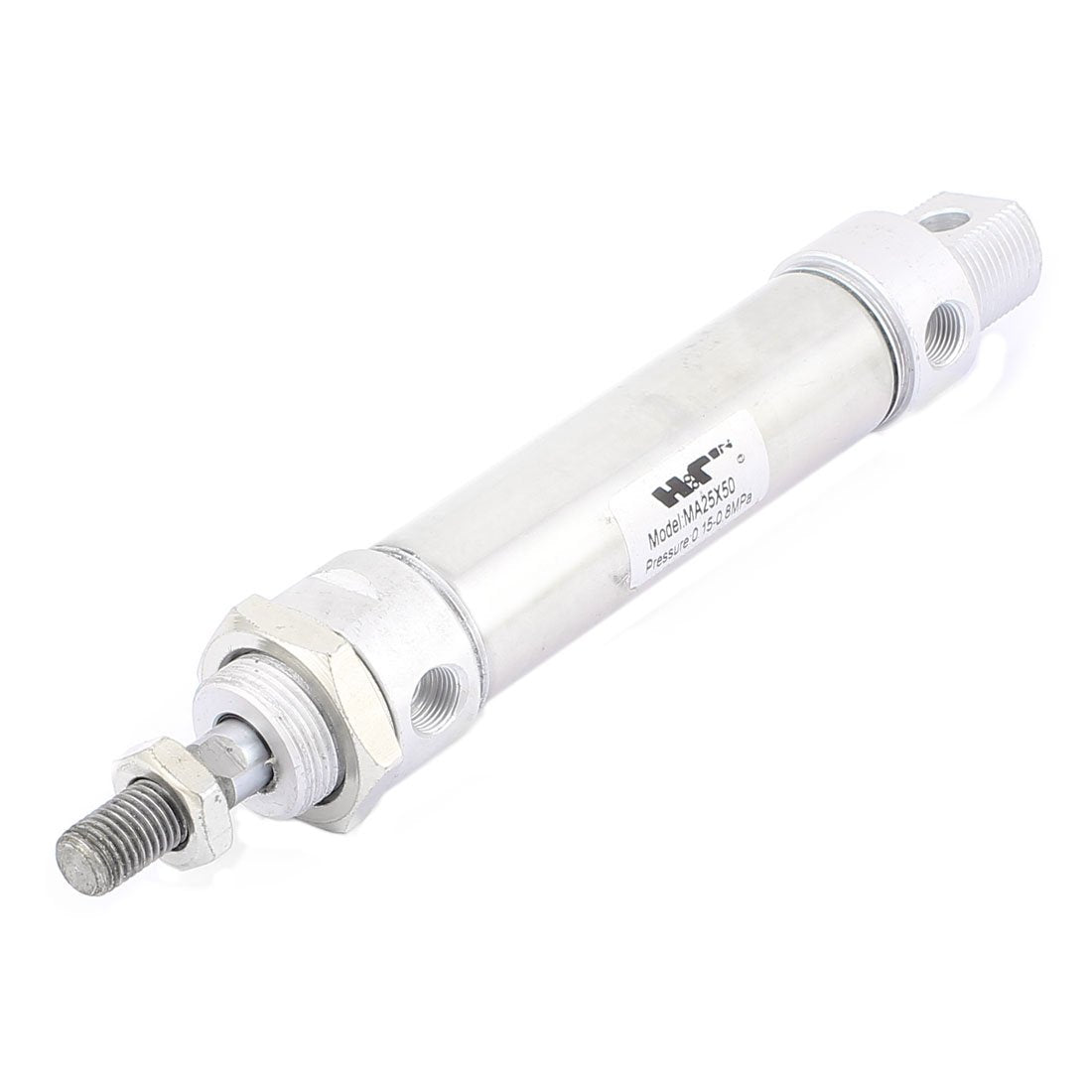

a16032400ux0597 MA2550 25 mm Bore 50 mm Stroke Screwed Piston Rod Mini Pneumatic Air Cylinder, Metal, 0.87"

Key Features

• Product Name Air Cylinder; Model MA25*50; Working Fluid Air
• Bore 25mm/ 0.98"; Stroke 50mm/ 1.97"; Rod Thread Diameter 22mm/ 0.87"
• Piston Rod Diameter 10mm/ 0.39''; Screw Hole Diameter 8mm/ 0.31"; Pressure 0.15-0.8MPa
• Overall Size 195 x 34mm/ 7.68'' x 1.34''(L*Max. W); Material Stainless Steel; Color Silver Tone
• Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.

Product Description

This Cylinder

features

25mm bore and 50mm stroke, 0. 15-0. 8MPa press, double acting, single rod. Cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
