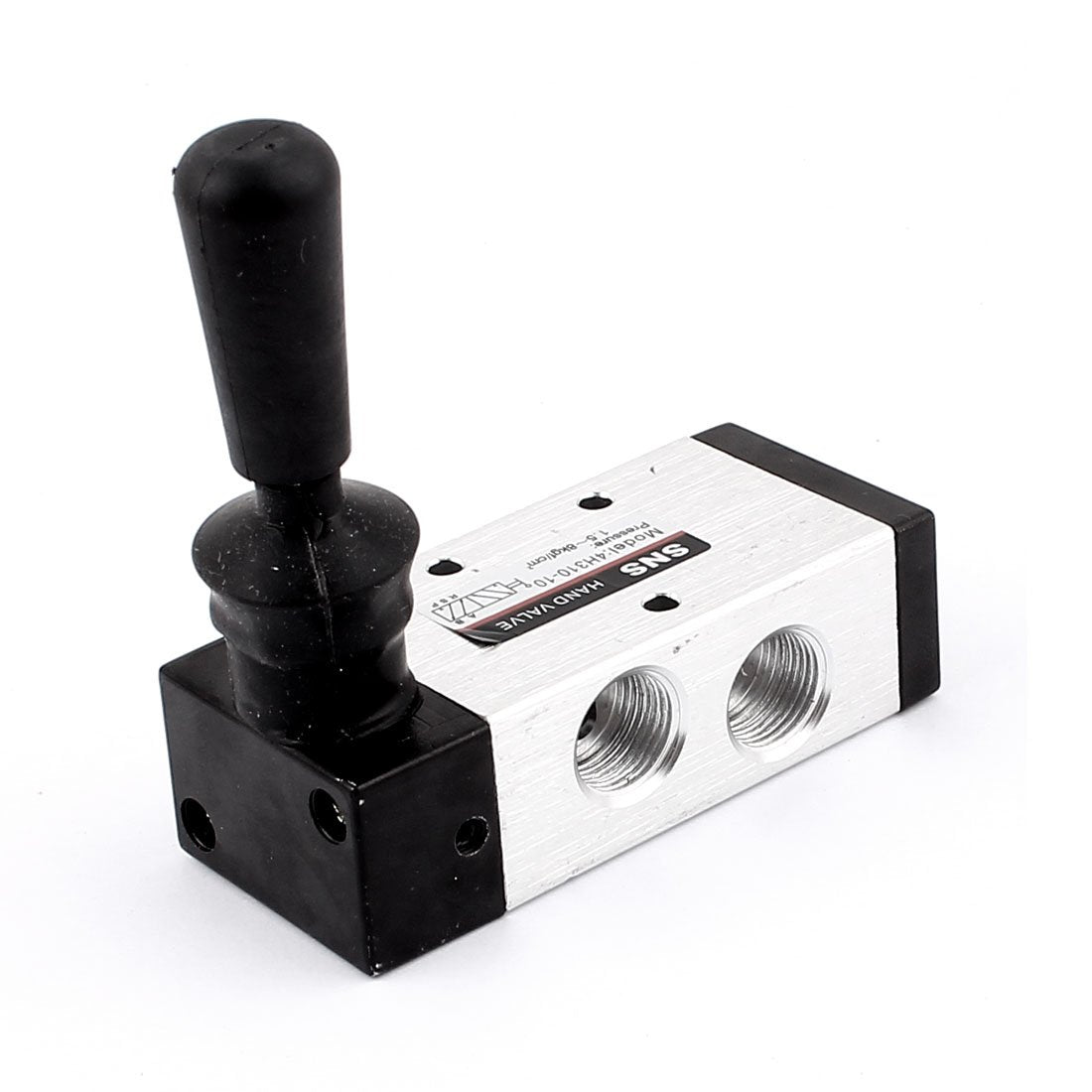

a15120800ux0184 5 Ports 2 Positions 3/8BSP Manual Lever Operated Pneumatic Valve, Metal, 0.59"

Key Features

• Joint pipe size 15Mm/ 3/8Bsp; product name manual pneumatic valve; model 4h310-10
• Max. Pressure 10. 5Kgf/Cm2; fluid air; action direct acting type
• Working pressure range 1. 7-7Kgf/Cm2; working temperature 5-50 centigrade; total size(approx.) 40 x 25 x 92Mm/ 1. 5" x 1" x 3. 6"(L*w*h)
• Material plastic, metal; main color gray, black; position and port number 5 port 2 position
• Net weight 240G; package content 1 x manual pneumatic valve

Product Description

This hand lever Valve is 5 way 2 positions Type, plastic covered handle. Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
