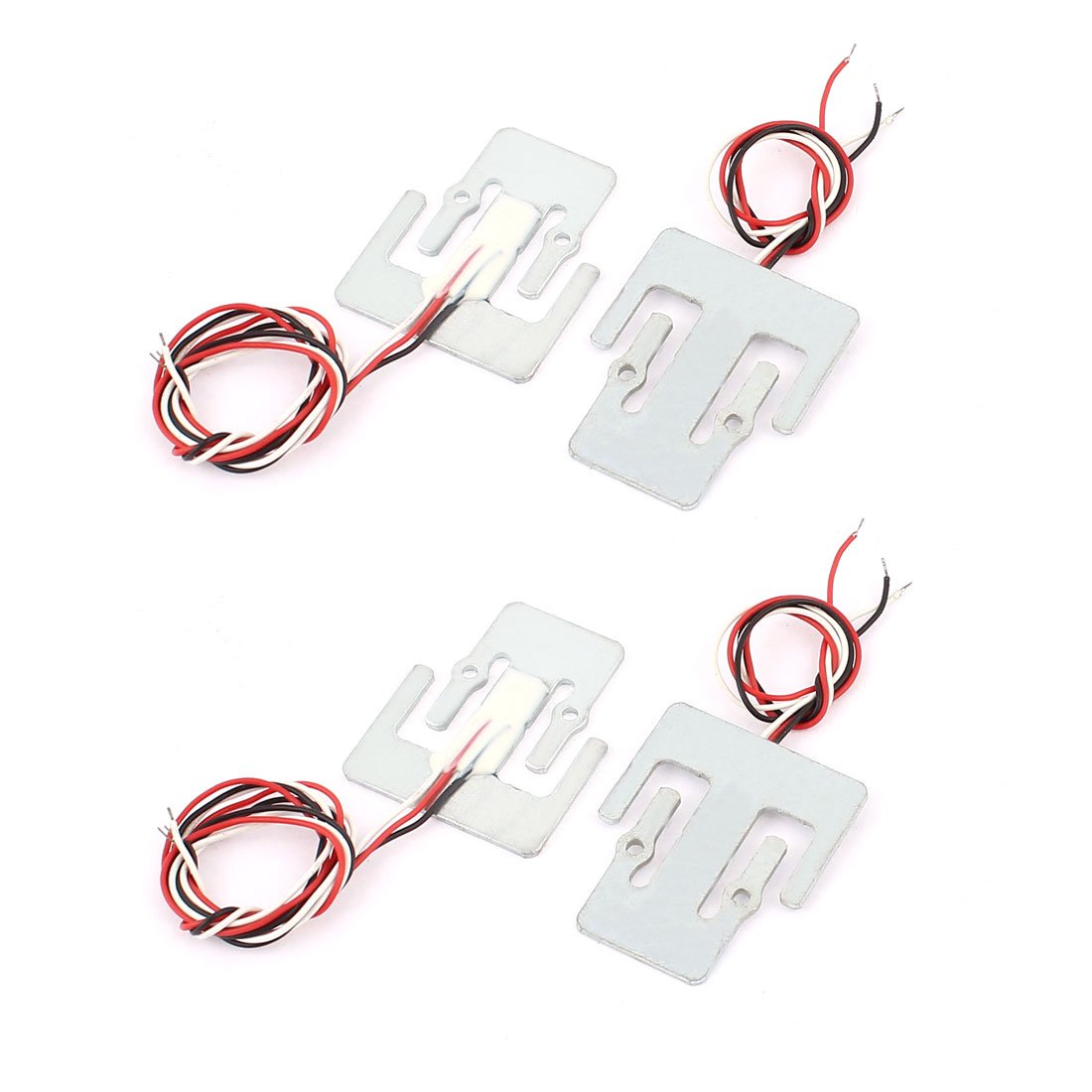

a15072900ux0605 4 Piece Weighing Sensor Resistance Strain Half-Bridge, Total 20 kg

Key Features

• Product name half bridge weigh sensor; total rated load 4x5kg;overallprecision 1.0+/-0.1Mv/v; none linearilty 0.08 percent
• Input resistance 1000+/-20 ohm
• Out resistance 1000+/-20 ohm; insulation resistance 3000M ohm(50v);safety overload 120 percent ro; ultimate overload 150 percent or
• Zero balance +/-1 percent excitation voltage dc 5V;total size 28x24x4.8Mm/0.09ftx0.08ftx0.015Ft(l x w x t);material aluminum alloy
• Color silver tone; weight 18G;package content 4Pcs x half bridge weigh sensor

Product Description

Used widely in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices.· this is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire. You can use multiple load sensors simultaneously to increase the capacity range. Two sensors full-bridge measurements: 5kgx2=10kg four sensor full-bridge measurements: 5kgx4=20kg parallel use to add additional capacity.
