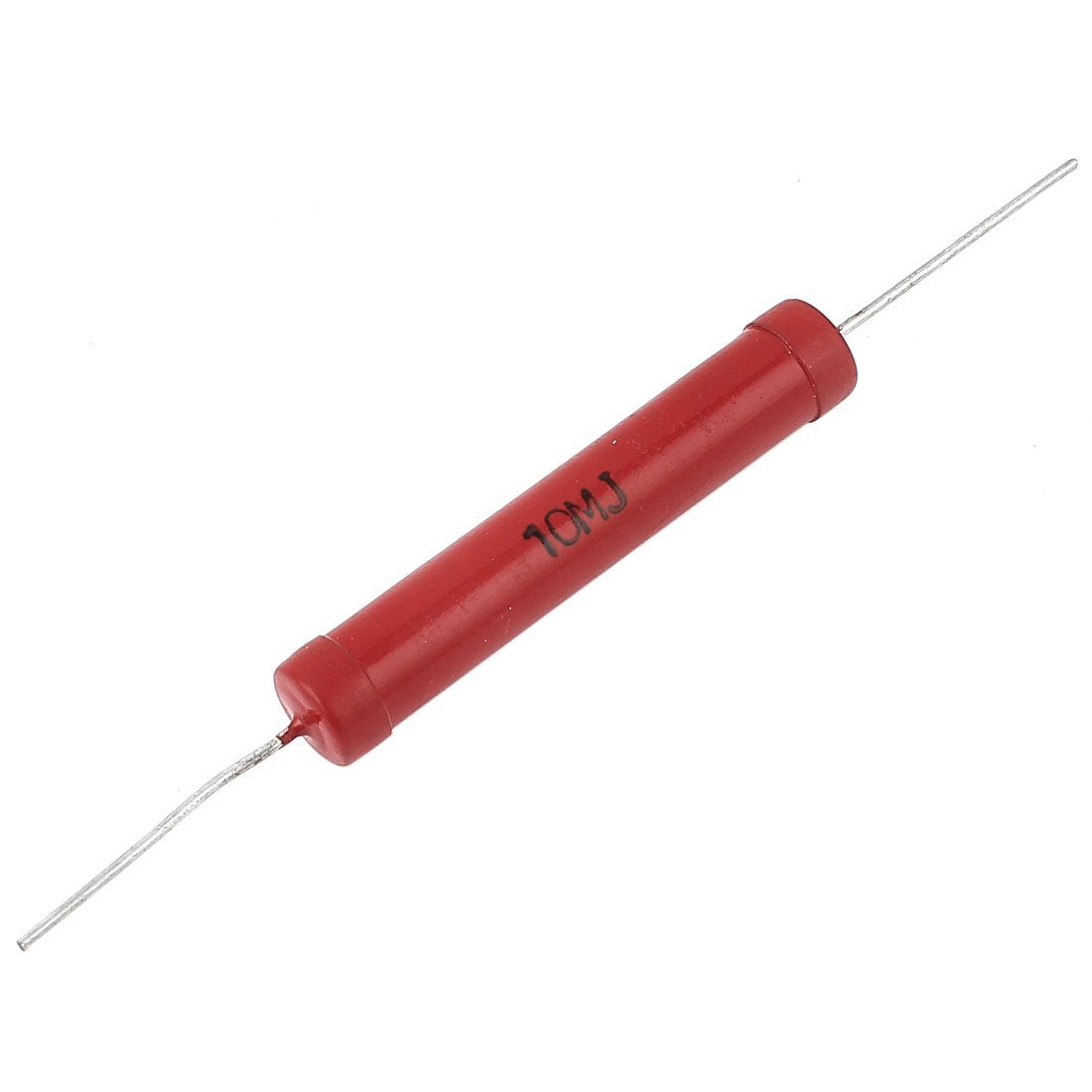

a15060500ux0403 Red 10M Ohm Axial Lead 9 mm x 50 mm High Voltage Glass Glaze Resistor, 0.35" Width, 3.94" Length

Key Features

• Product Name Glass Glaze Film Resistor;Resistance Value 10M Ohm
• Resistance Tolerance +/-5%;Power Rating 3W
• Pin Size(Each Side) 25 x 1mm/ 1" x 0.04"(L*D);Body Size 9 x 50mm/ 0.35" x 2" (L*D)
• External Material Glass Glaze, Metal;Color Red, Silver Tone
• Net Weight 10g;Package Content 1 x High Voltage Glaze Resistor

Product Description

Can be used for AC and DC or impulse circuit and/or high-voltage apparatus. Suitable for impulse voltage generators, Arc furnace damping, energy research, pulse modulators, capacitor crowbar circuits, high voltage Snubber circuits, x-ray/imaging equipment, and EMI/Lightning supression.
