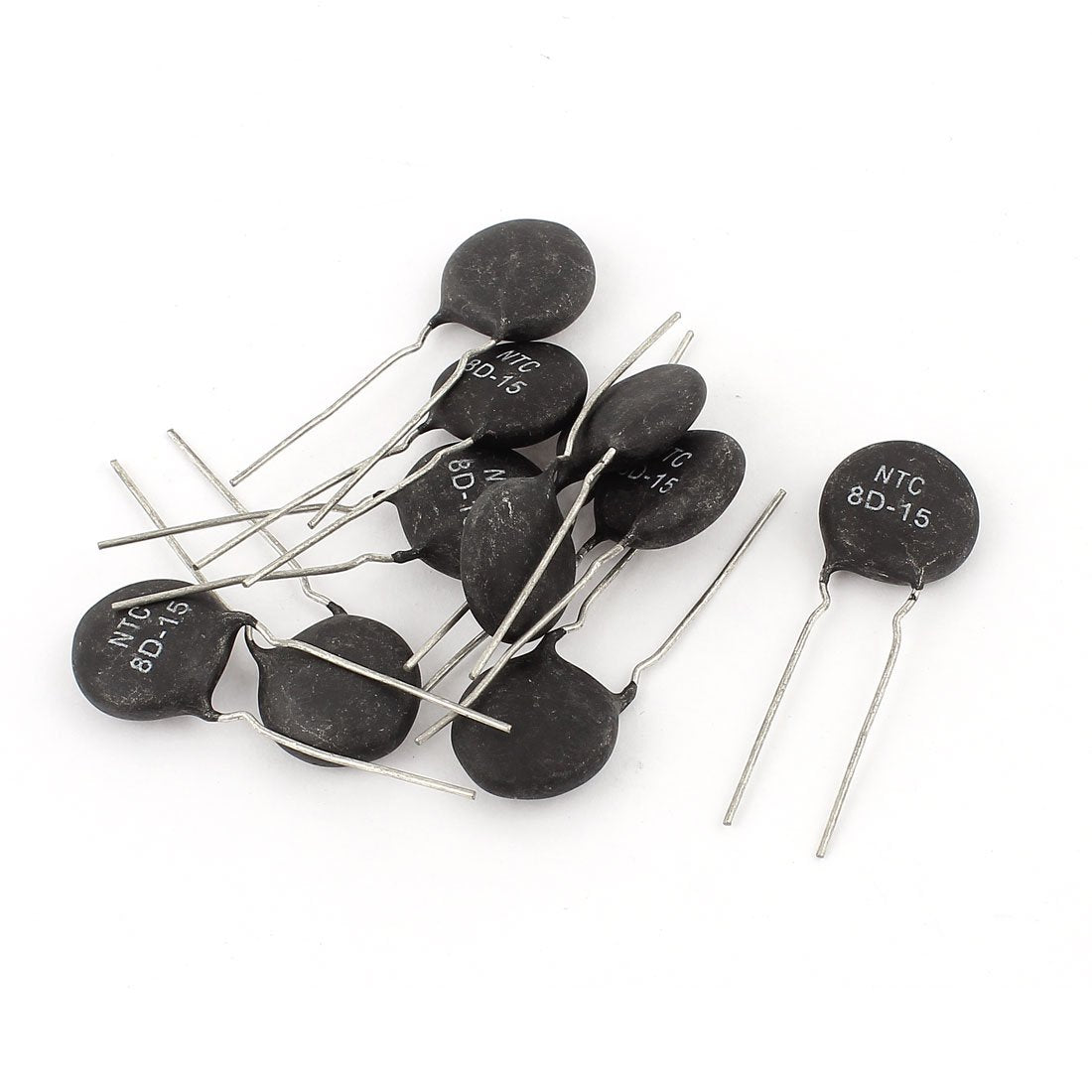

a15030300ux0217 10 Piece NTC8D-15 5A 8 Ohm 15 mm Surge Current Limiting Thermistor Temperature Sensor

Key Features

• Product Name NTC Thermistor;Model NTC 8D-15;Pin Type In-formed;Max. Steady State Current 5A
• Rated Resistance at 25C(R25) 8 Ohm(+/-20%);Resistance at Max. Current 0.178 Ohm;Dissipation Co-efficient 20mW/C
• Thermal Time Constant 80S;Operating Temperature -55C to +200C;Pin Size 0.8 x 28mm/0.4" x 1.1"(D*L)
• Pin Pitch 8.8mm/0.34";Body Size 15 x 5.5mm/0.6" x 0.22"(D*Max. T);Materials Ceramic, Metal
• Color Black;Net Weight 29g;Package Content 10 x NTC Thermistors

Product Description

It is used for controlling the current of motor, various heaters, bulb voltage Stabilizer, electronic energy-saving lamp, electronic Rectifier and other electronic installations. Safe, reliable, stable, with wide range of over-current control. Small size, large power, with strong capacity to inhibit surge current. Large material constant (b value), with small residual resistance. Thermal shock resistance, with wide range of operating temperature.
