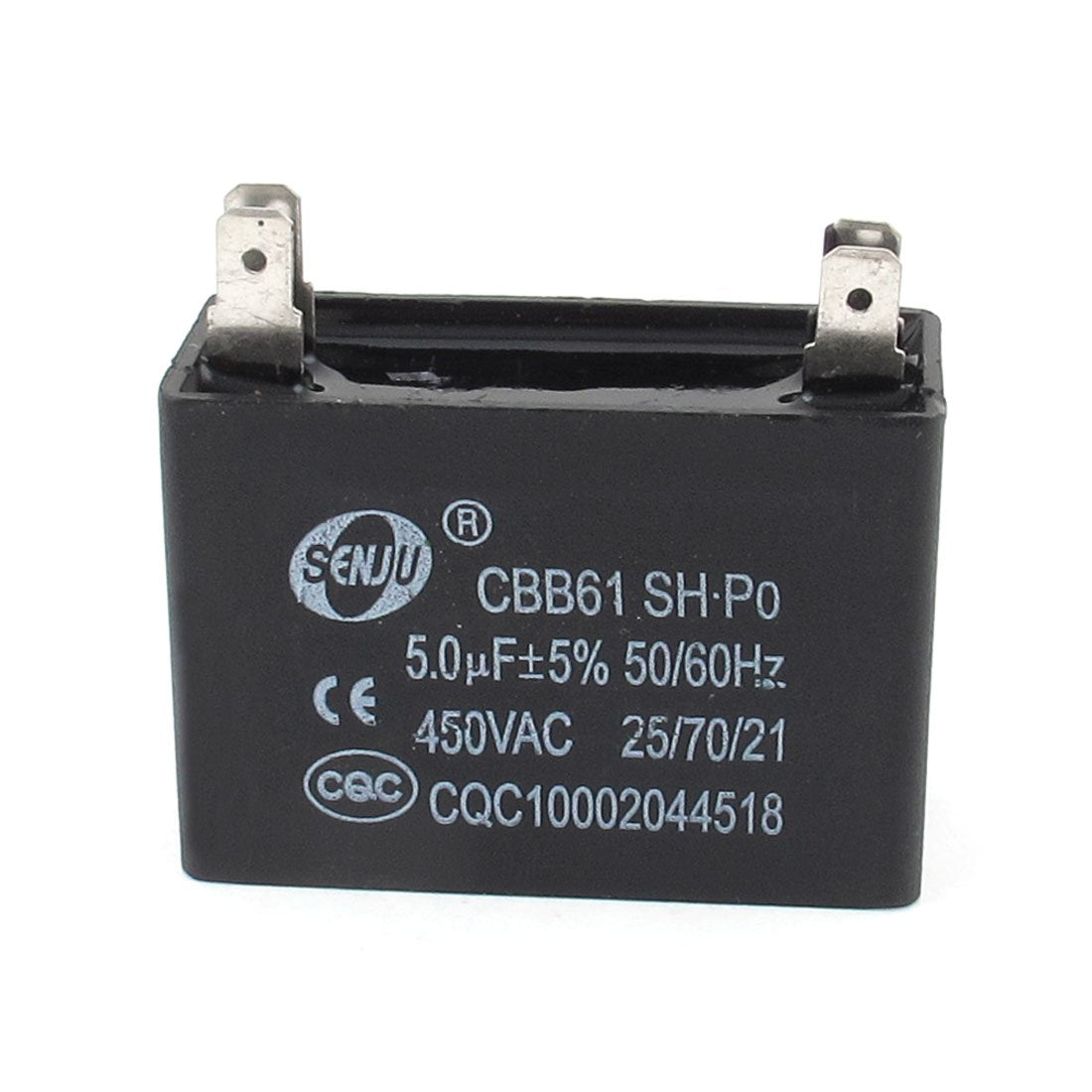

a15010500ux0891 CBB61 AC 450V 5uF 4 Soldered Terminal Rectangular Ceiling Fan Capacitor

Key Features

• Product name ceiling fan motor capacitor; model Cbb61; for air Conditioner, ceiling fan; Capacitance 5uF
• Tolerance +/-5 percent ; rated Voltage AC 450V; temperature coefficient 250/70/21
• Frequency 50/60Hz; pin count 4; pin spacing(approx. ) 32 x 5mm/1. 2" x 0. 2"(L*w)
• Overall Size 4. 7 x 3. 2 x 2cm/1. 9" x 1. 3" x 0. 8"(L*w*h); screw Hole DIA 5mm/0. 2"; main material polypropylene film
• Color black; weight 36G; package content 1 x ceiling fan motor capacitor

Product Description

AC 450V 5Uf,4 pin insertable terminals, soldering , rectangular design. It is wound with polypropylene film dielectric, flame retardant plastic case and epoxy resin end seal. Applied to the starting and better working of motor in 50Hz/60Hz frequency AC power system. Widely used in ceiling fan, Centrifugal fan, fan blower, air Conditioner fan etc.
