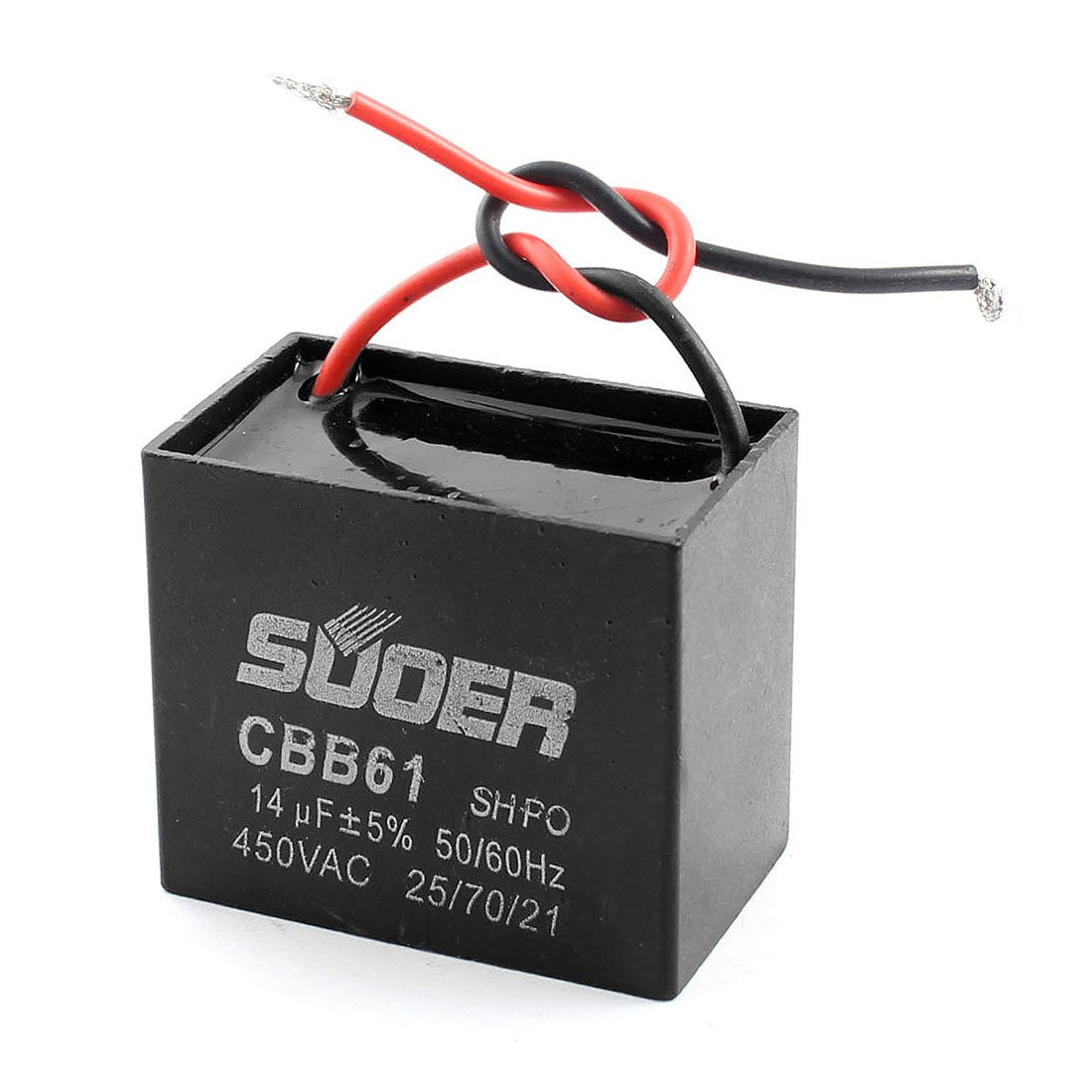

a14101000ux0653 AC 450V 14uF 5% Tolerance Polypropylene Film Motor Run Capacitor Black

Key Features

• Product name motor cap AC it or; model Cbb61; rated Voltage AC 450V 50/60Hz
• Capacitance 14uF; Tolerance +/- 5 percent ; temperature coefficient 25/70/21
• Overall size(not included pin) 50 x 43 x 31mm/2" x 1. 7" x 1. 2"(L*w*h); wire Length 85mm/3. 3"; fixing Hole DIA 5mm/0. 2"
• Main material polypropylene film; color black
• Weight 82G; package content 1 x motor cap AC it or

Product Description

It is wound with polypropylene film dielectric, flame retardant plastic case and epoxy resin end seal. Widely used in mAh jongg game, ceiling fan, Centrifugal fan, fan blower, air Conditioner fan etc.
