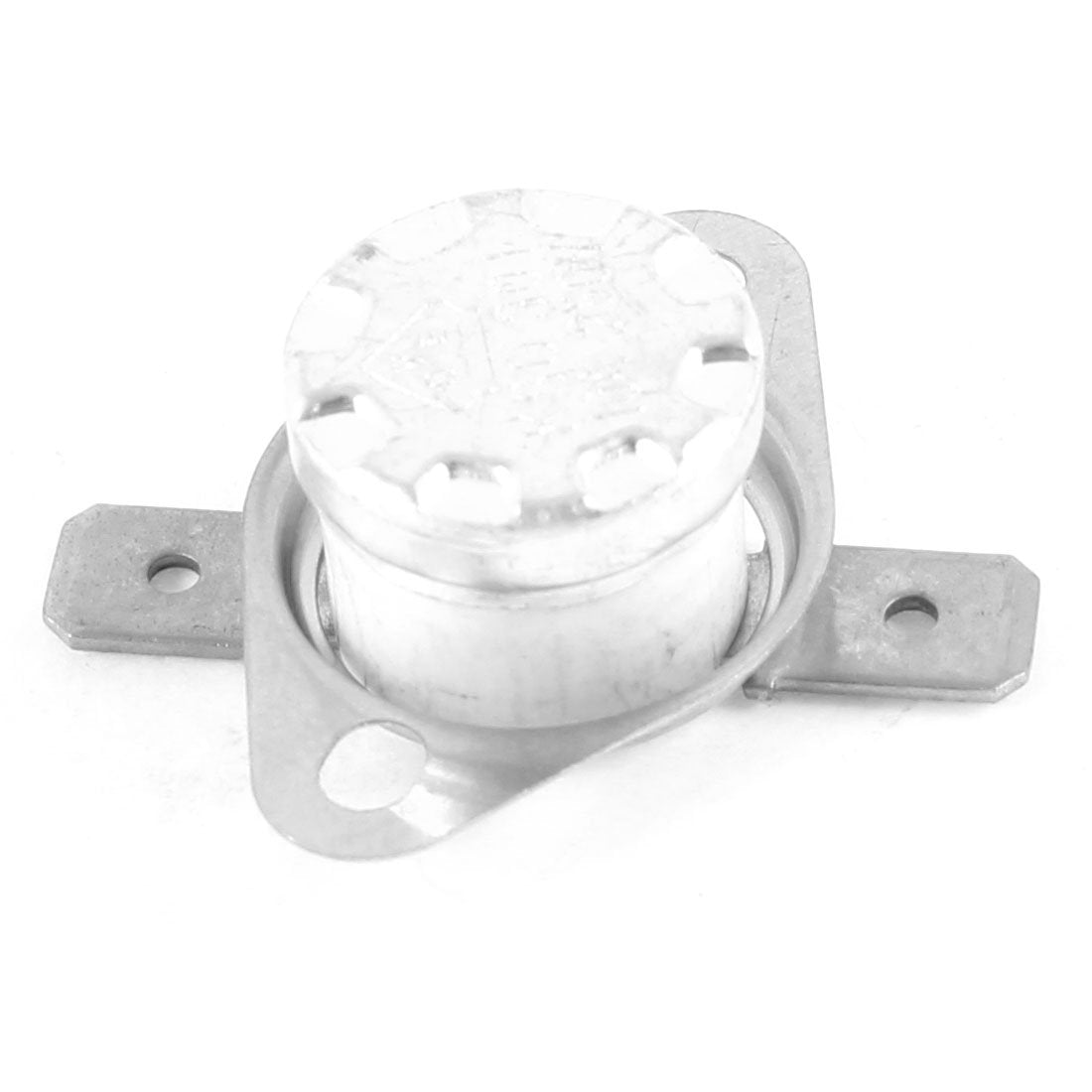

a13100700ux0332 KSD301 Normal Close Temperature Controlled Switch, 180 Degree C

Key Features

• Product Name Temperature Switch;Model KSD301;Action Type NC (Normal Close)
• Action Temperature 180C/356F;Voltage 250V 10A;Circuit Resistance 50M Ohm
• Insulation Resistance 100M Ohm;Size 3.3 x 2x 1.1 cm / 1.3" x 0.8" x 0.4" (L*W*H)
• Material Metal, Ceramic;Color Silver Tone, White
• Weight 8g;Package 1 x Temperature Switch

Product Description

It is close until the surface reaches 180 Celsius degree and then the switch open, automatically reset. Widely used for temperature control or protection for household electric appliances. Application: water dispenser, electric open water bottles, sterilizer, microwave, coffee maker, rice cookers, air conditioners and other electric appliances.
