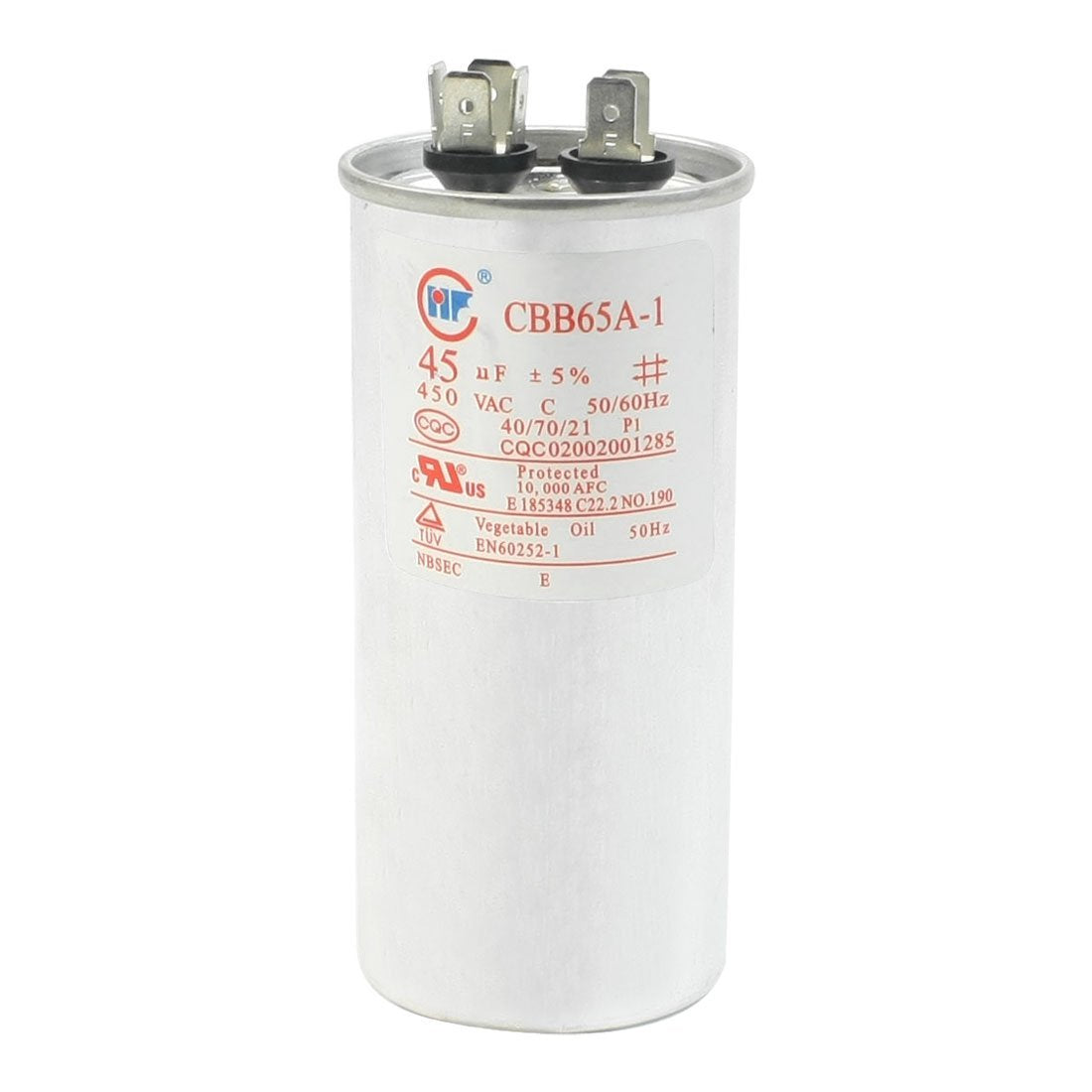

a13080800ux0194 Cylindrical Nonpolar Anti Explosion Air Conditioner, Capacitor 45 Uf, Capacity 450V

Key Features

• Product name motor capacitor; material polypropylene; model cbb65a-1
• Capacitance 45uF; rated Voltage AC 450V; Tolerance ±5 percent
• Frequency 50/ 60Hz; temperature coefficient 40/70/21; body dimension 11 x 5cm/ 4. 3" x 2"(h*d)
• Total Length 12cm/ 4. 7 inch
• Weight 216G; package content 1 x motor capacitor

Product Description

Features cylinder shape, Lug terminal type(2 + 4 pins), polypropylene film, non polar capacitor. Applied to the starting and better working of sing-phase motor in 50hz(60hz) frequency AC power system. Widely used in air Conditioner, refrigerators, generators, etc.

Specifications
