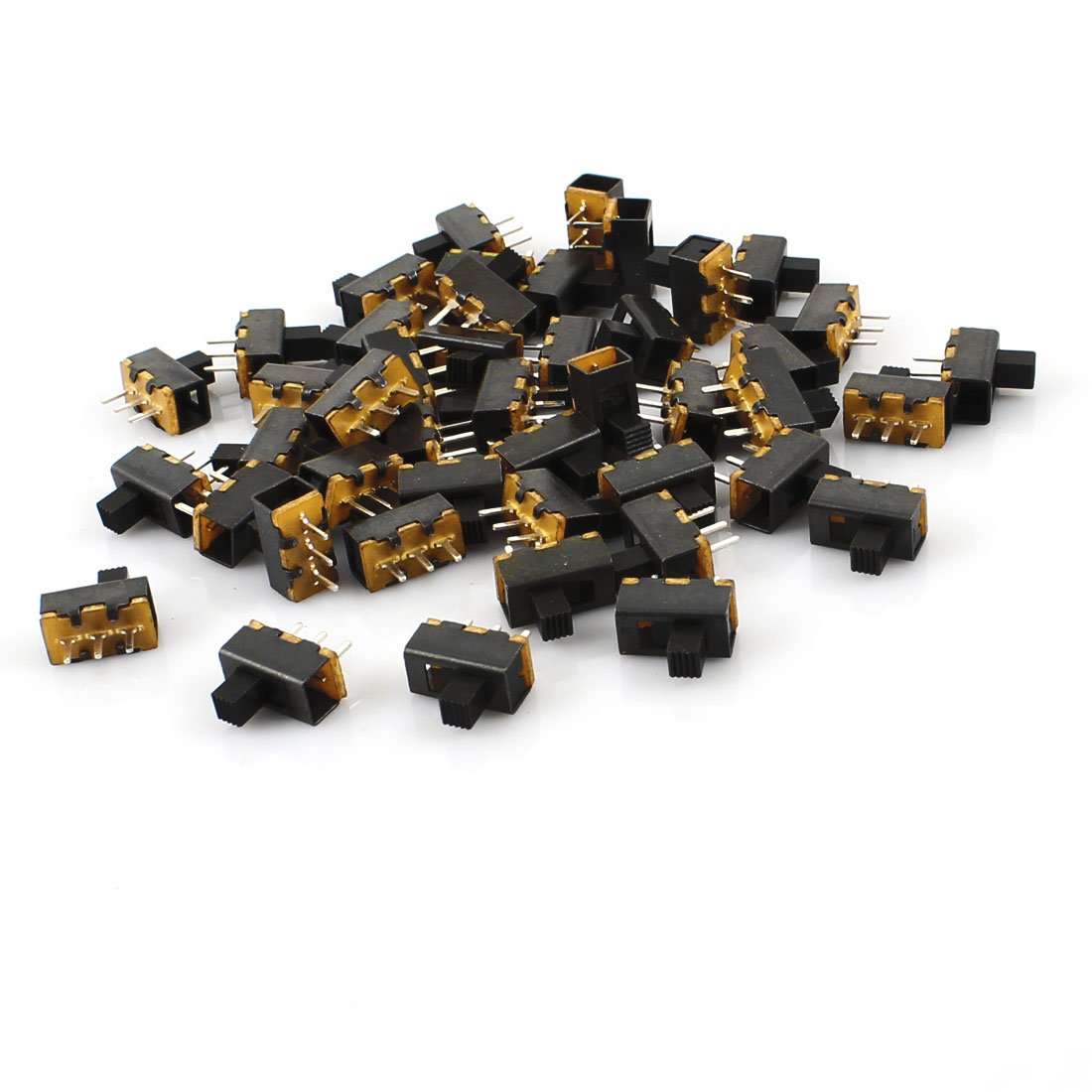

a13070200ux0855 3-terminal ON/ON 2 Positions SPDT Panel PCB Horizontal Mini Slide Switch, 45 Piece

Key Features

• Product Name Slide Switch;Position 2;Terminal Design 3;Contact Type SPDT
• Terminal Pitch 3mm/ 0.12";Rating DC 50V, 0.5A;Contacts Resistance 30M Ohm
• Insulation Resistance 100M Ohm;Minimum Load DC 500V;Dielectric Strengths AC 500V / 1 minute
• Life Test 10000 cycles/ minute;Overall Size 10.5 x 6 x 13mm/ 0.4" x 0.24" x 0.5" (L*W*H);Material Plastic, Metal
• Color Black;Weight 31g;Package 45 x Horizontal Slide Switch

Product Description

1.

Features

easy structure, mini body, 3 terminal, 2 positions, SPDT contact Type, sliding knob actuator. 2. Widely used in the electric toy, sound equipment's, fax, Test instrument equipment, or other low voltage circuit electronic equipment's. 3. This slide switch features with 3 terminals design for easily welding onto the circuit.

Specifications
