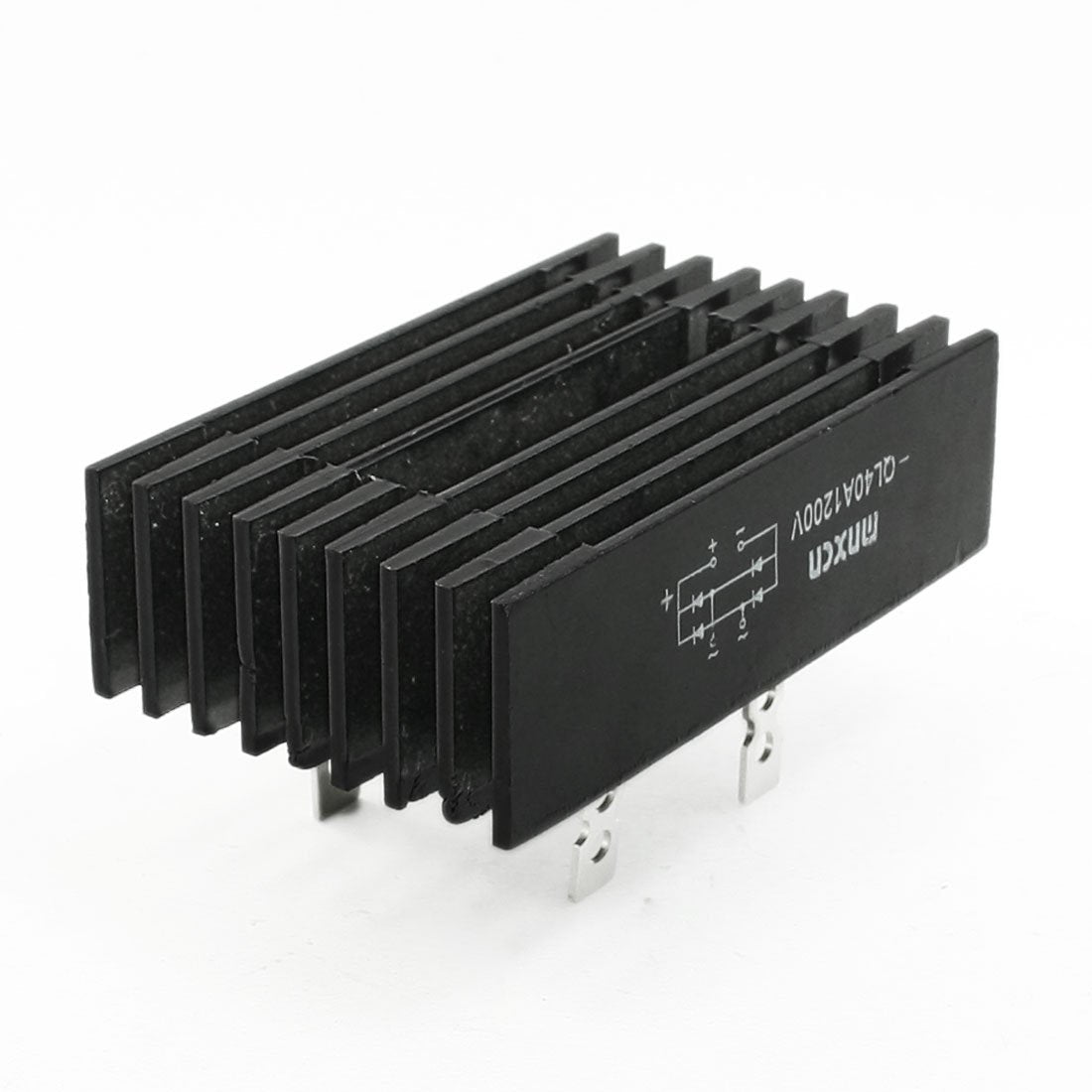

a13070200ux0497 Black -QL Single Phase Diode Heatsink Bridge Rectifier, 40A 1200V

Key Features

• Product name bridge rectifier; model -ql40a/1200V; output current) 40A
• Repetitive peak reverse Voltage) 1200V; fixing holes diameter 5 mm / 0. 19"; fixing holes Spacing 52 mm / 2"
• Main body Size 98 x 59 x 29 mm / 3. 86" x 2. 3" x 1. 1" (l*w*t); Overall height 56 mm / 2. 2"
• Material metal; color black
• Net weight 240G; package content 1 x bridge rectifier

Product Description

Heatsink base. Convert your single phase current input into DC with this bridge Rectifier. This bridge Rectifier can be used in a wide variety of applications.
