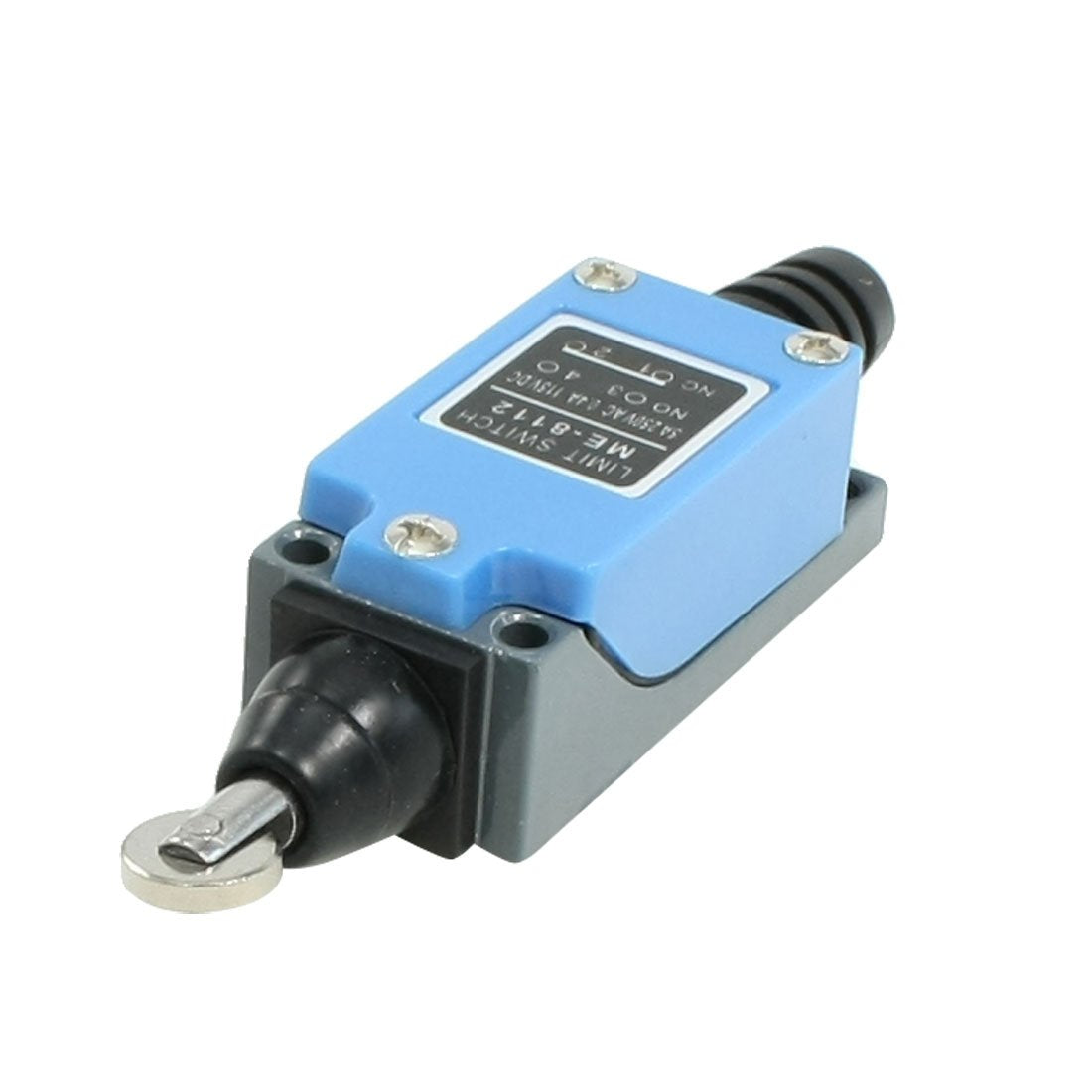

a13051100ux0170 ME-8112 Parallel Roller Plunger Mini Limit Switch for CNC Mill Plasma

Key Features

• Product Name Limit Switch; Model No. ME-8112; Actuator Type Parallel Roller Plunger
• Contact Type 1NC + 1NO; Rated Voltage & Current Rated Voltage & Current; AC 250V, 5ADC 115V, 0. 4A AC 250V, 5ADC 115V, 0. 4A
• Roller Wheel Size 12. 7 x 3. 3mm / 0. 5" x 0. 13"(Dia. *T); Total Size 110 x 28 x 26mm / 4. 3" x 1. 1" x 1. 0"(L*W*T); Mounting Hole Diameter 4. 4mm / 0. 17"
• Mounting Hole Distance 56 x 21mm / 2. 2" x 0. 83"(L*W); Material Resin, Plastic & Metal
• Net Weight 62g; Package Content 1 x Limit Switch

Product Description

This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant. Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection. Safe and reliable,dust and oil proof,small installation size,the products are for general use. Compatible with different connecting rod or contacting heads. Lever Arm can be rotated to the left and to the right.
