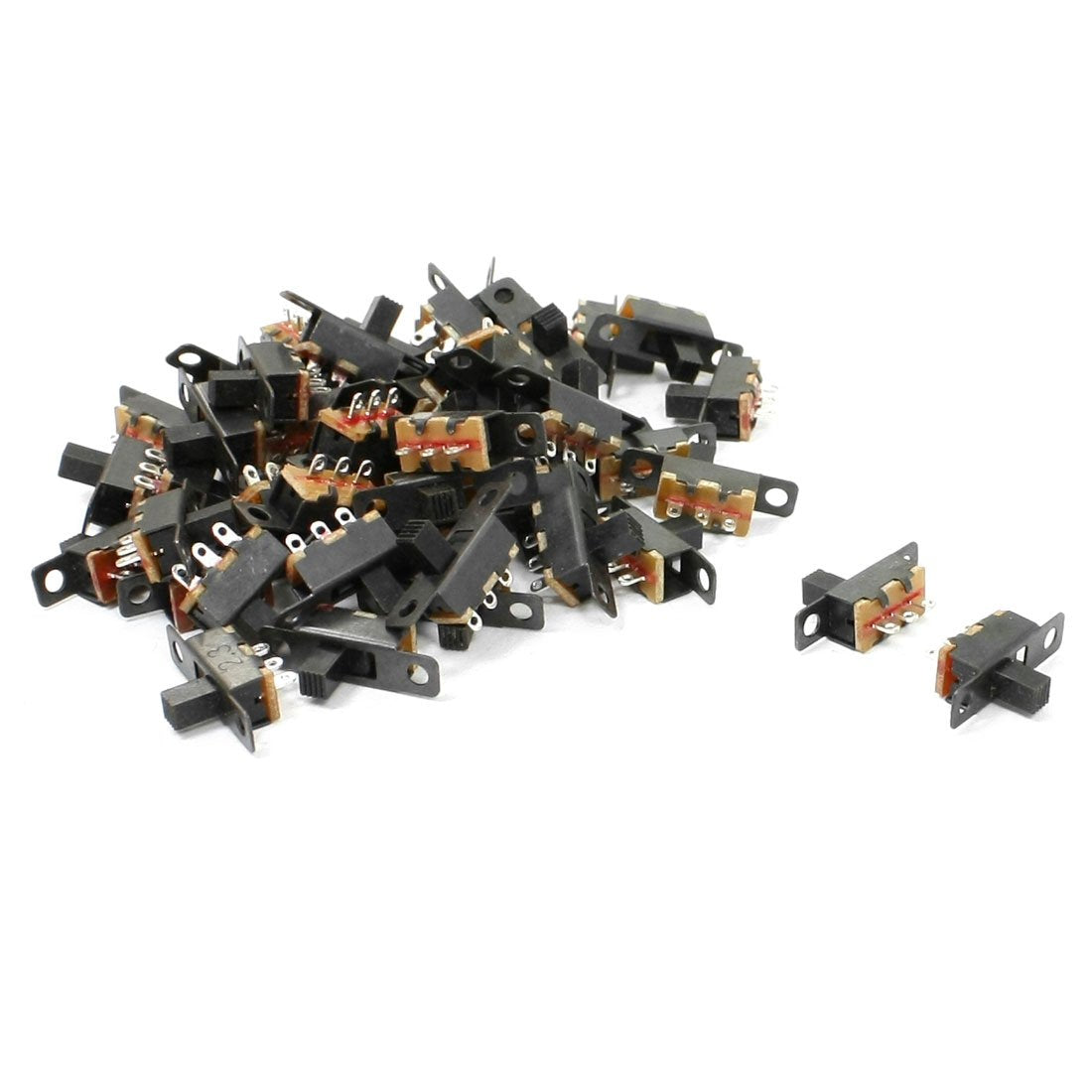

a13042200ux0676 3 Solder Lug Pin ON/OFF 2 Position Panel Mount Slide Switch, 50 Piece

Key Features

• Product Name Slide Switch;Contact Type ON/OFF, 2 Positions;Terminals Quantity 3
• Working Power 0.5A 50V DC;Contact Resistance 30m Ohm Max;Insulation Resistance 100m Ohm Min at 500V DC
• Withstand Voltage AC 500V for 1 min;Terminals Size(Each One) 2.5 x 1.6mm/ 0.1" x 0.06" ( L * W);Switch Total Size 2 x 0.6 x 1.1cm / 0.8" x 0.24" x 0.4" (L * W * H)
• Knob Size 4 x 3 x 3mm/ 0.16" x 0.12" x 0.12" (L * W * H);Material(External) Plastic, Metal;Main Color Black
• Weight 41g;Package Content 50(+/-2%) x Slide Switch

Product Description

There are 50 Pcs sliding switches here, they are 3 terminals, SPST action type and 2 on/off positions. Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.
