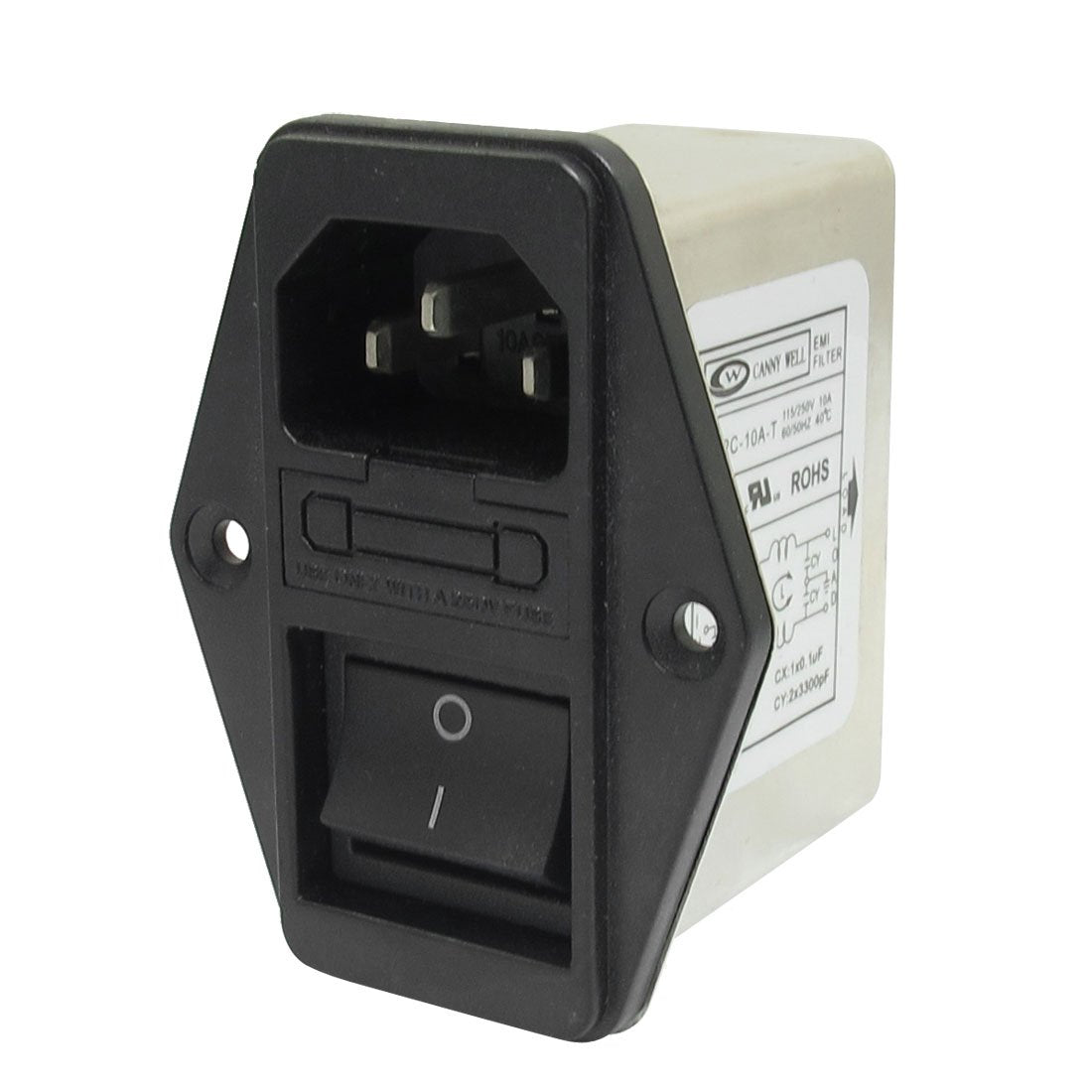

A13031400ux0389 Solder Lug Terminals IEC 320 C14 EMI Filter, Boat Switch, Fuse Holder

Key Features

• Product Name EMI Filter;Model No. CW2C-10A-T;Rated Voltage AC 115V/250V, 50/60Hz;Rated Current 10A
• Inductance(L) 2 x 0.5mH;Capacitance Cx 1 x 0.1uF;Cy 2 x 3300pF Cy 2 x 3300pF;Working Temperature 40C
• Installing Holes Dia(Approx) 3mm/0.118";Installing Holes Pitch(Approx) 40mm/1.575";Terminals Width(Approx) 6.3mm/0.248"
• Fit Fuse Size 5 x 20mm;Overall Size(Approx) 55 x 65 x 50mm/2.2" x 2.6" x 2"(L*W*T);External Material Metal, Plastic
• Color Silver Tone, Black;Net Weight 67g;Package Content 1 x EMI Filter

Product Description

Metal case, solder Lug terminals, IEC 320 C14 Inlet, compact design. The cw2c-10a-t IEC 320 C14 EMI filter AC115V/250V 10a 50/60Hz features metal case, solder Lug terminals, IEC 320 C14 Inlet, compact design.

Specifications
