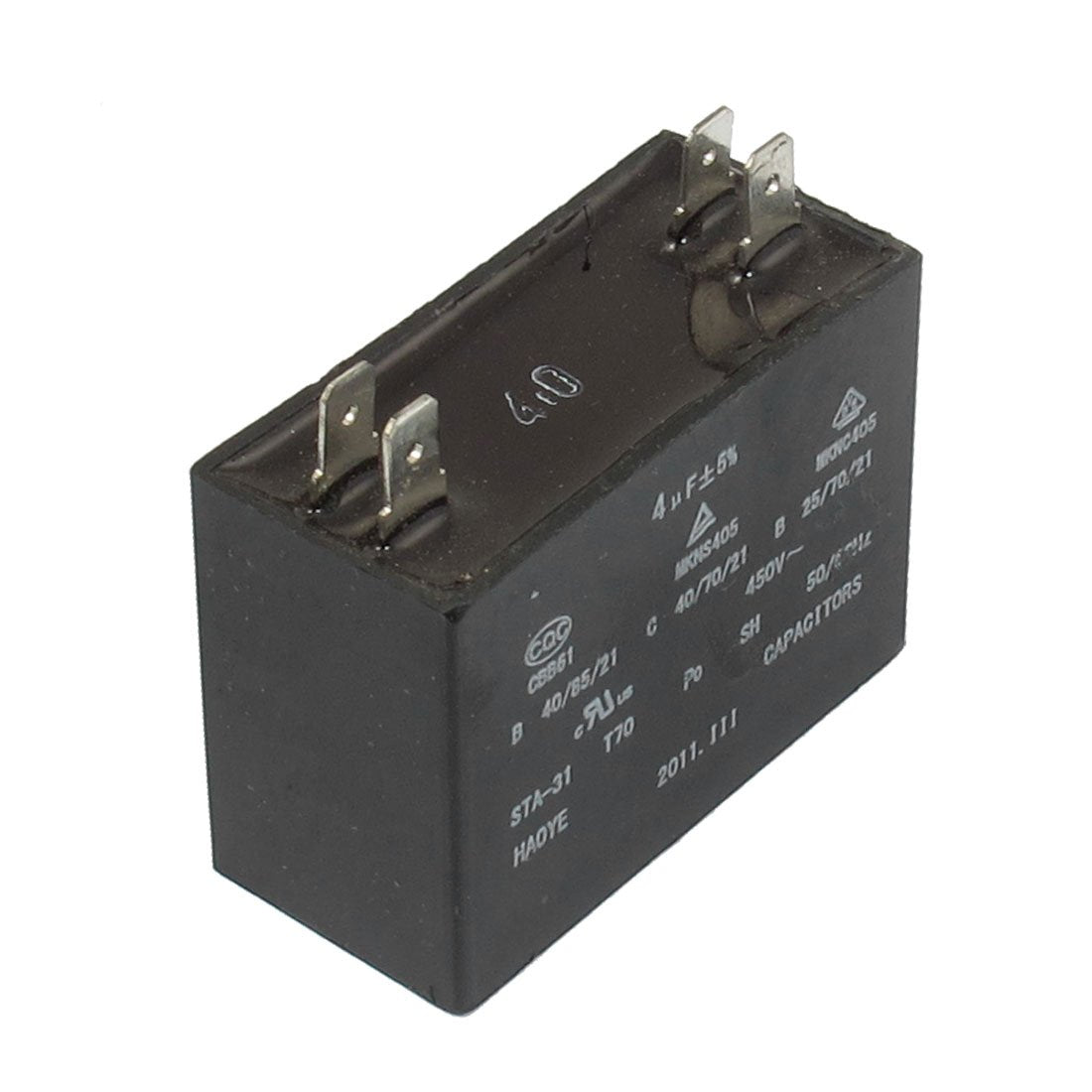

a12082300ux0385 450VAC 4uF 4 Terminals Air Conditioner Fan Run Capacitor

Key Features

• Product name capacitor; model Cbb61; dielectric material metallized polypropylene; external material plastic
• Rated Capacitance 4uF; Tolerance 5 percent ; rated frequency 50/60Hz
• Rated working Voltage 450Vac; pin number 4; mounting Hole diameter 4. 5mm / 0. 18 inch
• Pin Size 8. 4 x 4. 8mm / 0. 33" x 0. 19" (low); pin Spacing 30 x 5 mm / 1. 19" x 0. 2" (low); total size(approx) 4. 7 x 3. 6 x 4. 3cm / 1. 86" x 1. 4" x 1. 68" (l*w*h)
• Main color black; weight 44G; package content 1 x capacitor

Product Description

Features

450VAC rated working voltage, 4Uf rated capacitance, 50/60Hz rated frequency. Four soldering terminals, rectangular design, Lug mounting. It fit for ceiling fan, air Conditioner, washing machines, Micro water pumps, etc.
