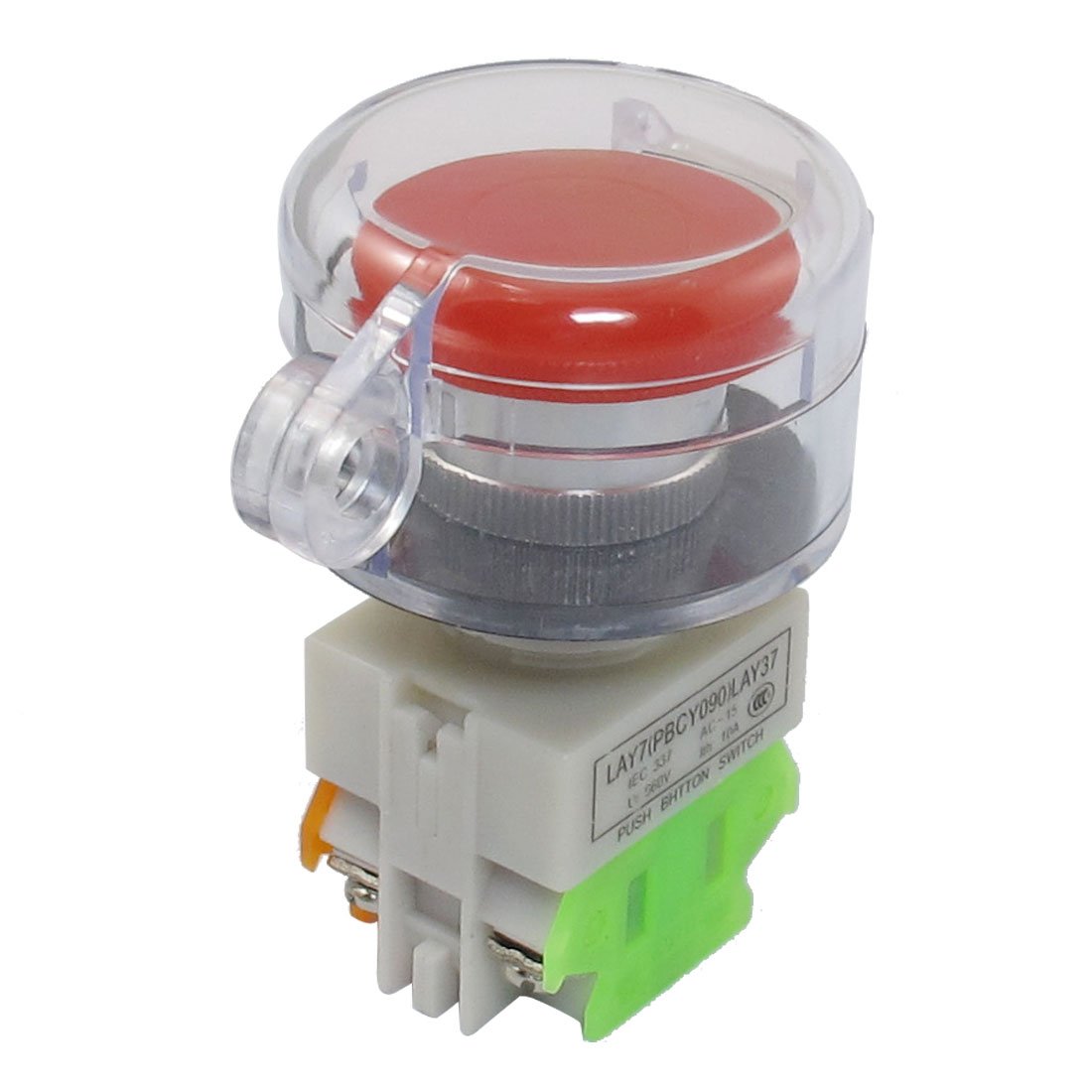

A12081700ux0127 Mushroom Momentary Push Button Switch 1NO 1NC with Cover, AC 660V, 10 Amp, Red

Key Features

• Product Name Push Button Switch;Material Plastic, Metal;Action Type Momentary
• Contact Type 1NO+1NC;Ith 10A;Ui 660V
• IEC 337;Terminal Quantity 4;Mount Hole Diameter 22mm / 7/8"
• Fit Panel Thickness(adjustable) 6mm / 15/64"(max.);Total Size (Approx.) 47 x 77mm / 1.9" x 3"(D*H);Button Color Red
• Weight 60g;Package Content 1 x Push Button Switch

Product Description

Features

4 terminals, 22mm mounting hole, 1NO+1NC contact type, red mushroom momentary push button switch with clear cover, the cover can protect the push button switch well. Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

Specifications
