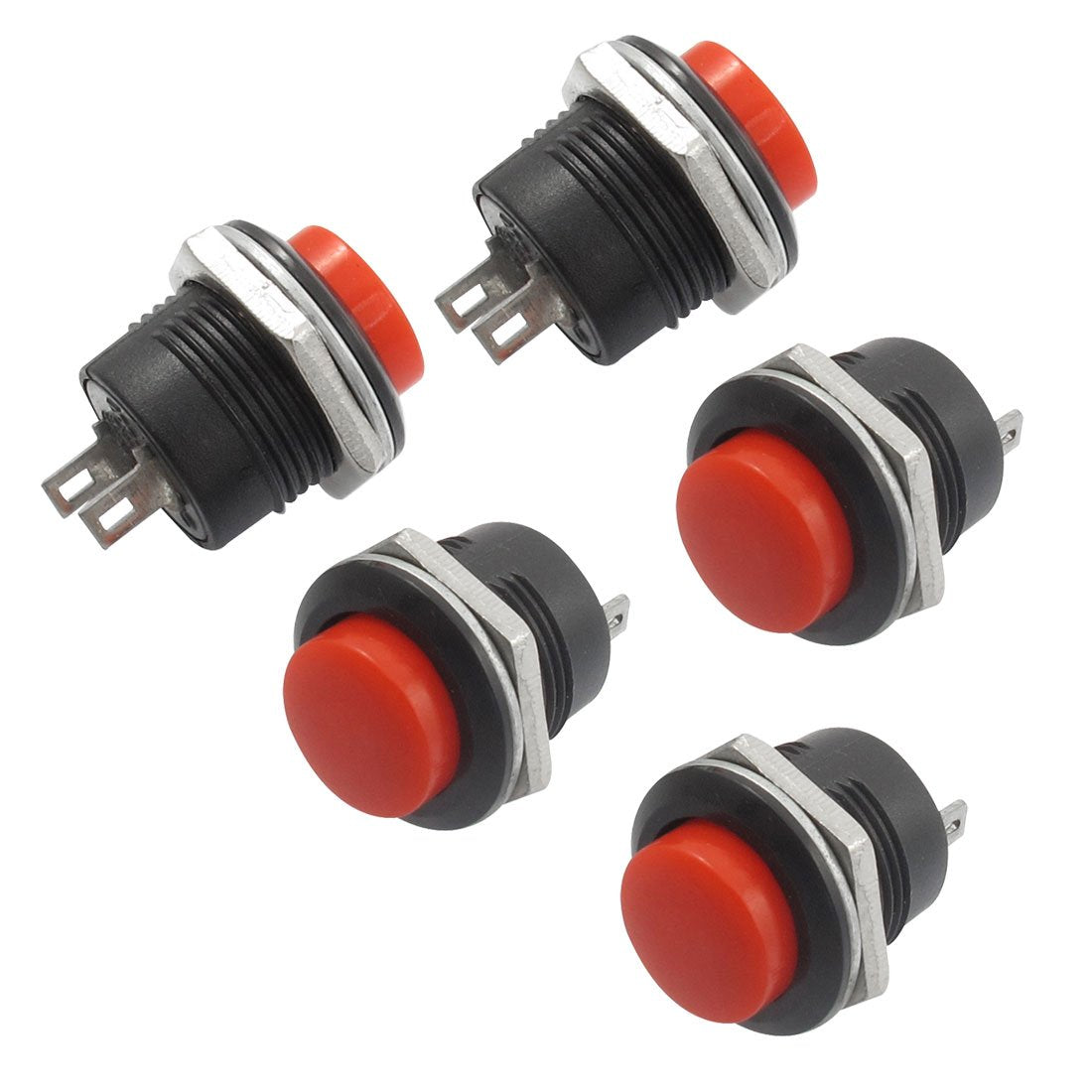

A12081400ux0336 5 x Momentary SPST NO Red Round Cap Push Button Switch, AC 6 Amp/125V, 3 Amp/250V

Key Features

• Product Name Push Button Switch;Action Type Momentary;Contact Type NO
• Poles SPST;Rating Voltage AC 3A 250V, AC 6A 125V;Terminals Quantity 2
• Mounting Thread Dia. 15mm / 0.6";Button Dia. 14mm / 0.55;Terminals Pitch 8mm / 0.31"
• Overall Size 25 x 19mm / 1" x 0.75"(Max. L * D);Material Plastic & Metal;Color Red, Black, Silver Tone
• Weight 28g;Package Content 5 x Push Button Switch

Product Description

Feature: 2Terminals,red round cap push button, momentary Type, 1no(off) contact Type, 15mm mounting hole diameter. The push button switch is used in industrial controlling circuits for controlling in electromagnetic starter, Contactor, relay and other electric circuits.

Specifications
