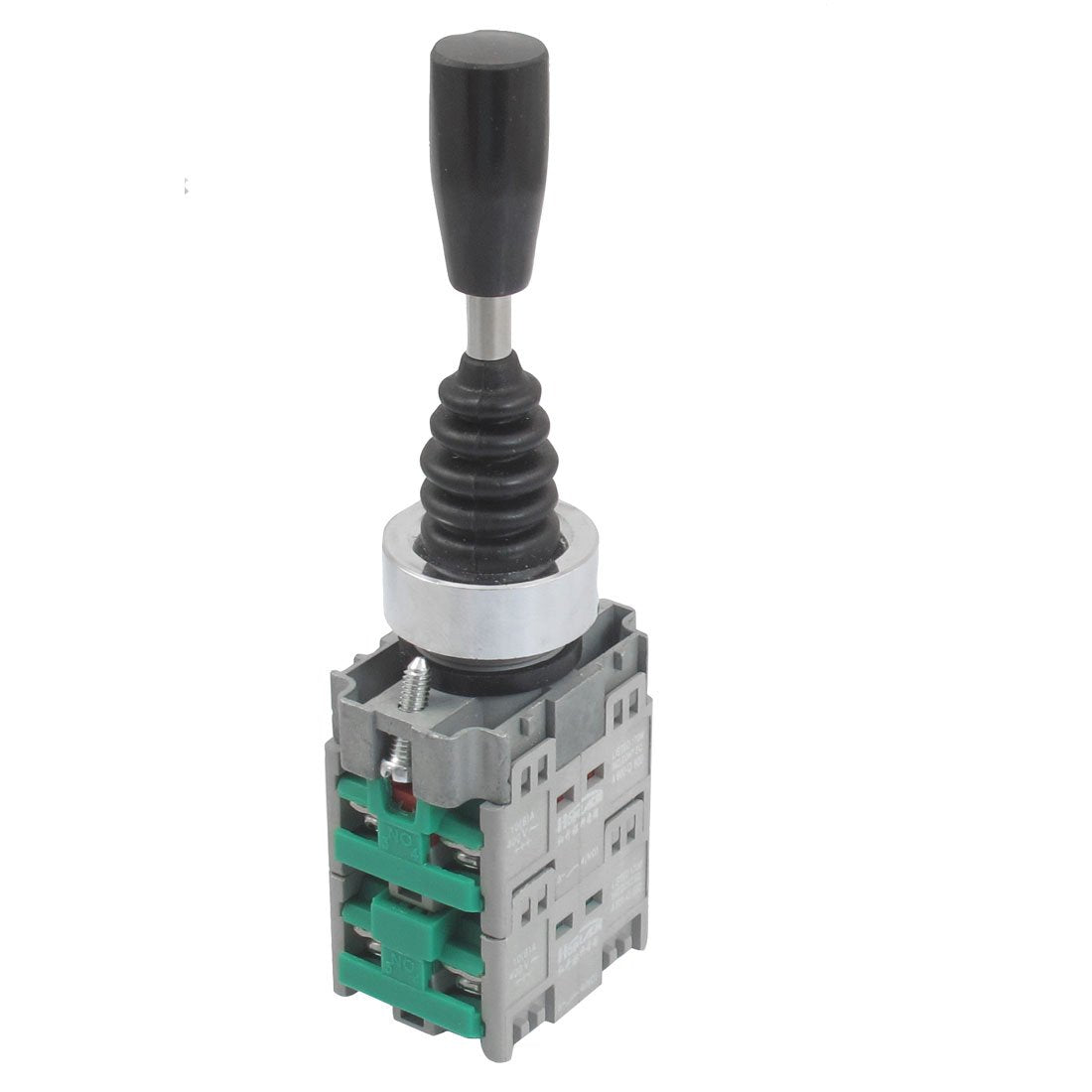

a12080800ux0320 AC 400V 10A Latching 4 Normal Open 22 mm Fixing Hole Joystick Switch

Key Features

• Product name joystick switch;model hkl-d14;material plastic, metal, rubber;action Type latching
• Voltage current AC 400V 10A;contact Type 4no(each Micro switch has 2 No);angle +/-30Degree
• Motor life 50 thousands;electrical life 50 thousands;temperature -25c~100c
• Main body Size 41 x 30 x 52mm/1.61" x 1.18" x 2.05"(L*w*h);Overall Size 4.1 x 3 x 13.7cm/1.61" x 1.18" x 5.39"(L*w*h);fixing Hole diameter 22mm/0.87"
• Color as picture Shown;net weight 157G;package content 1 x joystick switch

Product Description

Features

AC 400V 10a, 4no(each Micro switch has 2NO), 22mm fixing hole diameter, latching action Type.Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc.It has a rocker to rotate left-right and forward-backward, you can use it easily.

Specifications
