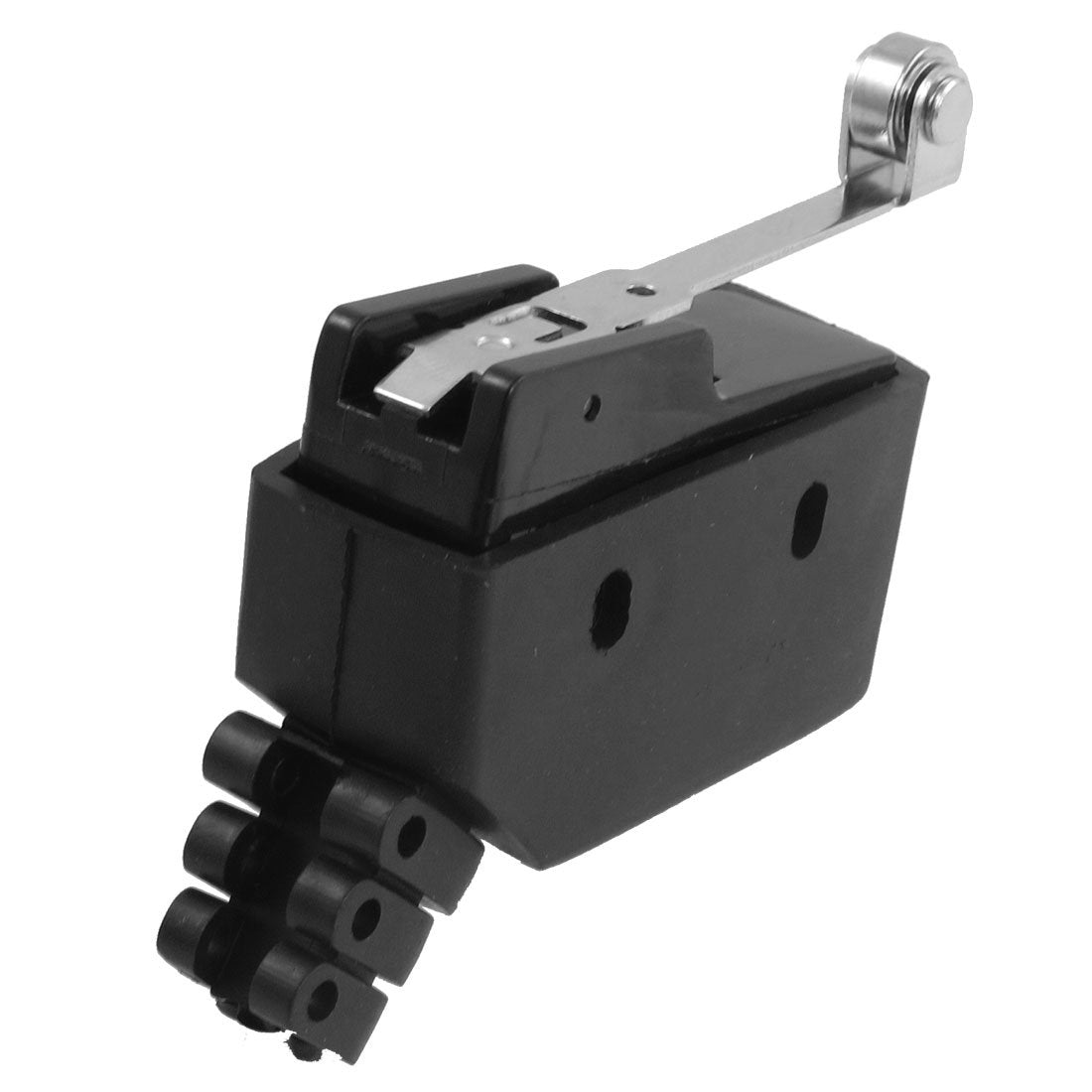

a12071900ux0131 TM-1703 Long Hinge Roller Lever Momentary Limit Micro Switch, 380V, 10 Amp with Cover

Key Features

• Product name Micro limit switch W cover; model No. tm-1703;actuator Type long hinge roller lever; contact Type 1 No, 1 NC
• Terminal Type 3 screw terminals; ui 380V;ith 15A;ac-15 UE 250V, le 1.5A
• Dc-13 UE 220V, LED 0.3A;actuator Size 6.2 x 0.8cm / 2.4" x 0.3"(L*max W);roller Size 0.9 x 0.4cm / 0.35" x 0.16"(D*h)
• Hole DIA 0.45cm / 0.18";Overall Size 4.9 x 2.9 x 1.8cm / 2.9" x 1.1" x 0.7"(L*w*h);material metal, plastic
• Color black; net weight 53G;package content 1 x Micro limit switch W cover

Product Description

This limit switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant. Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection. The protective cover is used for protect the terminal and terminal cable, prevent the cumulate dust to lead terminals short circuit, grounding or connection wires vibration, poor contact, electric shock and so on .

Specifications
