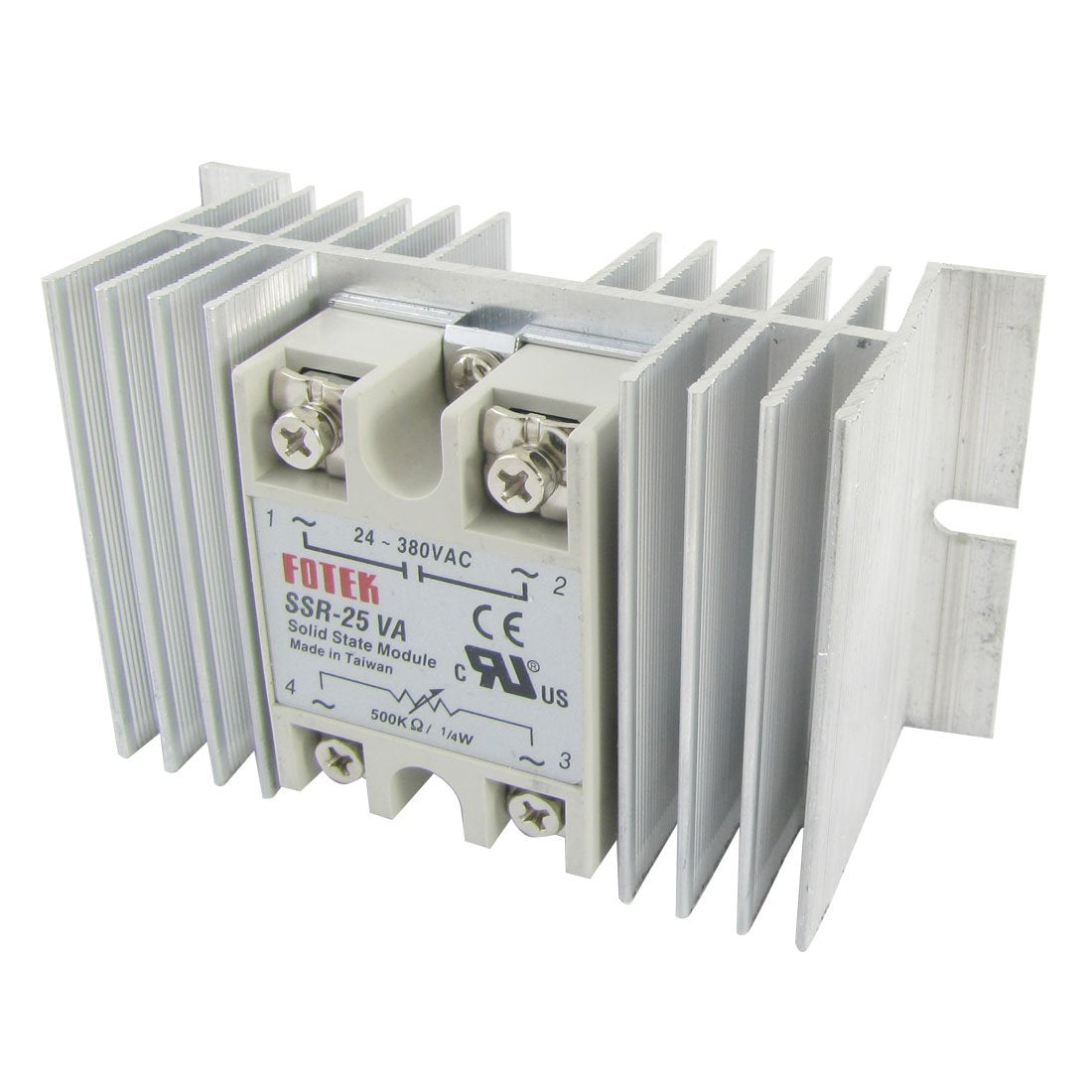

a12032600ux1467 Single Phase Solid State Relay SSR-25VA, 25 Amp, 24-380V AC, 500K Ohm, 1/4W with Heat Sink

Key Features

• Product name solid state relay + heat sink; model No. ssr-25 VA; load current 25A
• Load Voltage 24-380v AC; 1/4w(potentiometer is NOT included)
• Mounting Hole diameter 5 mm / 0. 2"; total Size (approx. ) 126 x 70 x 52 mm / 5. 0" x 2. 8" x 2. 0" (l*w*h)
• Heatsink material aluminum; color Silver Tone
• Weight 282G; package content 1 x solid state relay + heat sink

Product Description

Come with a aluminum heat sink provides long lasting usage, it will help dissipate the heat and protect the relay. Solid state relay ideal for automatic process control application, a must component for temperature controller and other machinery control system.

Note

when installing the solid state relay, please make sure to add a heatsink or a cooling fan to prevent overheating.
