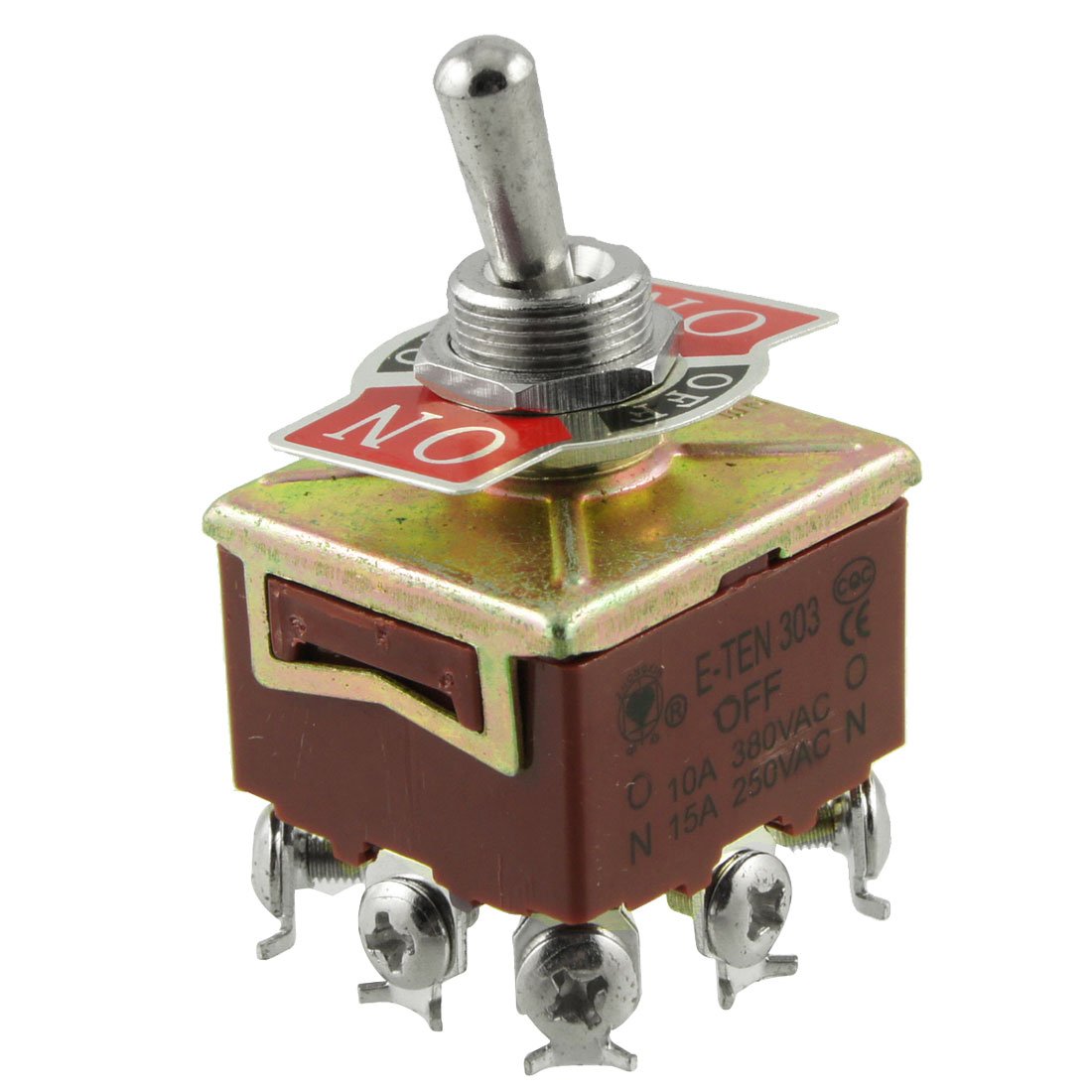

a12031300ux0399 Toggle Switch, 3PDT On/Off/On 3 Postion 9 Screw Terminals, AC 250V 15 Amp

Key Features

• Product Name Toggle Switch;Type 3PDT (On/ Off/ On)
• Position 3;Mounting Hole Diamter 12mm / 0.456"
• Main Body Size 32 x 27 x 18mm/ 1.3" x 1.06" x 0.7" (L*W*H);Overall Height 57mm / 2.2"
• Material Metal, Resin;Weight 45g
• Package Content 1 x Toggle Switch

Product Description

Please note

the 250V/15a rating in the title is only for purely resistive load, please pay attention to the specifications below for max ratings of other load types: max power rating for AC resistive load: AC 15a 250V/AC 16a 125Vmax power rating for DC resistive load: DC 0. 5a 250V/DC 0. 9a 125Vmax power rating for AC lamp: AC 125V 300W/AC 250V 600Wmax power rating for DC lamp: DC 30V 3. 5Amax power rating for AC motor(single phase): AC 250V 400W/AC 125V 300W.
