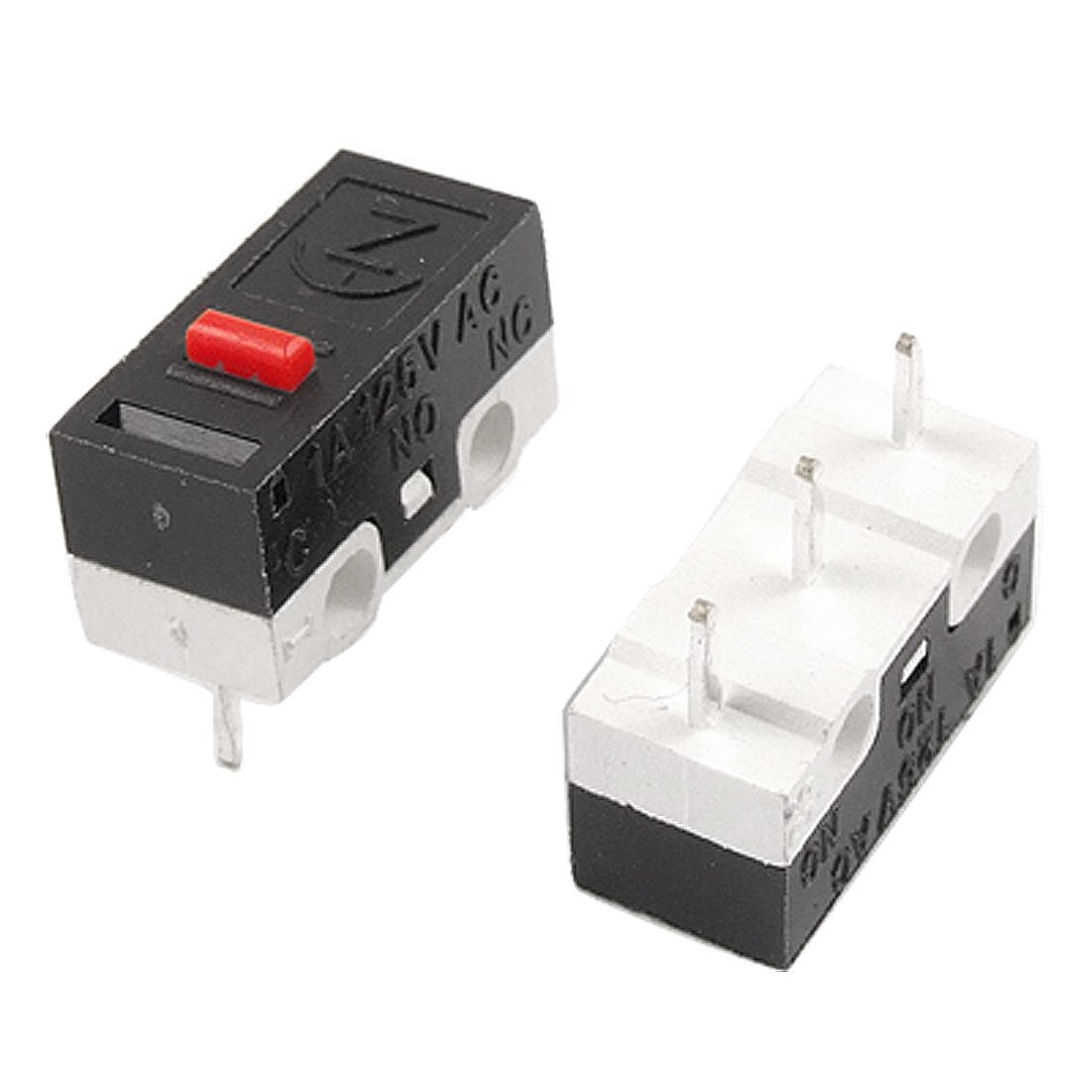

a11123000ux0377 AC 125V 1 Amp, 1NO 1NC SPDT Momentary Push Button Miniature Micro Switches 5 Piece

a11123000ux0377 AC 125V 1 Amp, 1NO 1NC SPDT Momentary Push Button Miniature Micro Switches 5 Piece

Brand: LinkMejor

★★★★☆ 161 ratings | 41 answered questions

$7.49

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Product Name Micro Switch;Voltage & Current AC 125V 1A;Poles SPDT;Contact Type 1NO + 1NC
Action Type Momentary;Actuator Type Push Button;Terminal Type 3-Terminals
Overall Size 12.5 x 5.5 x 10mm / 0.49" x 0.22" x 0.39" (L*W*H);Mounting Hole Dia. 2mm / 0.08";Mounting Hole Spacing 6.5mm / 0.26"
Terminals Pitch 5mm / 0.2";Push Button Size 3 x 1mm / 0.12" x 0.039" (L*W );Material Plastic, Metal
Color Black, White, Red, Silver Tone;Total Weight 4g;Package Content 5 x Micro Switches

Product Description

Features

single pole double throw (SPDT) Type, 1NO + 1NC contact, momentary action, push button actuator, 3-terminals, etc. 2. Durable material construction, long using life. Easy installation. 3. Widely used in electronic equipment's, automatic machines, etc.
