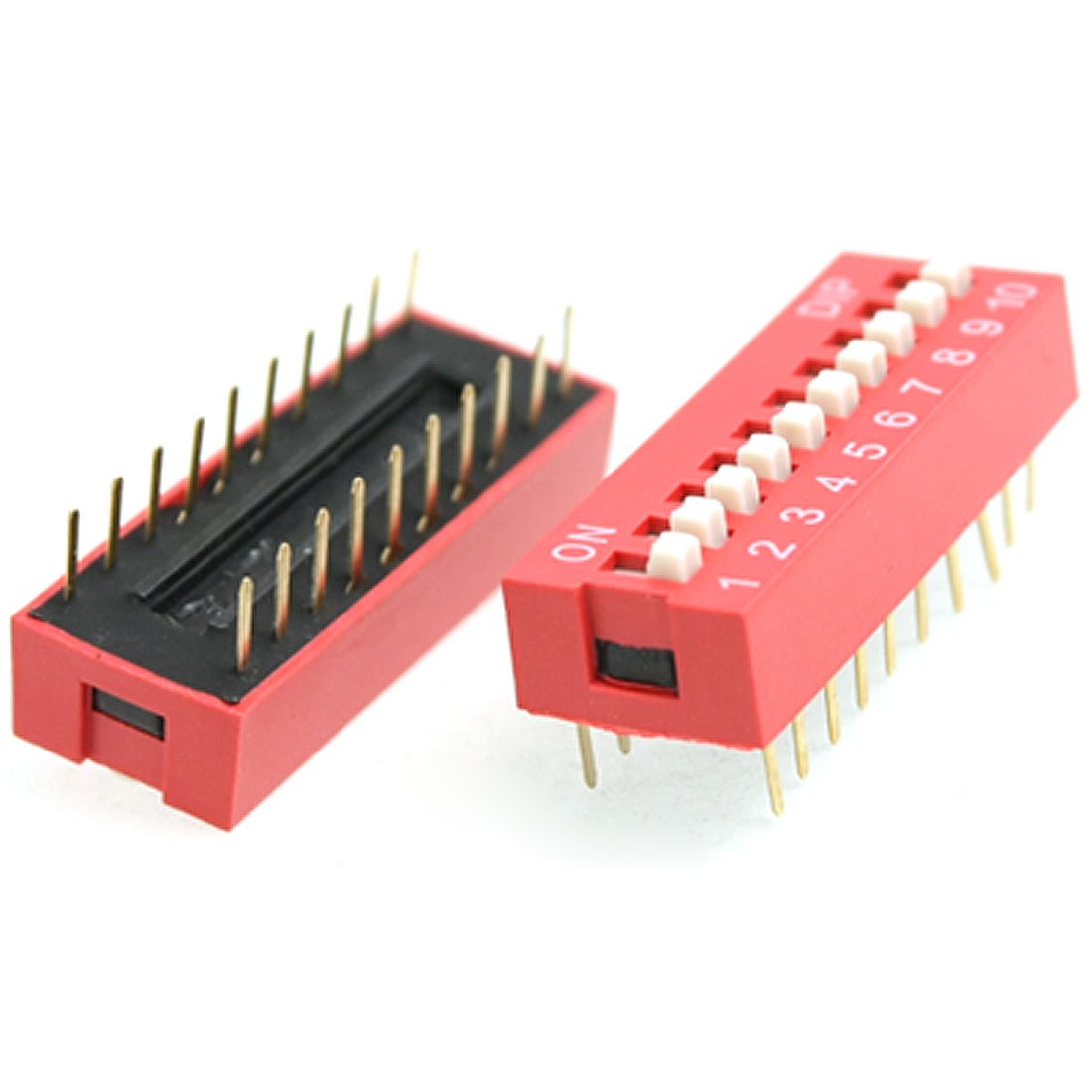

a11123000ux0292 10 Piece 2.54 mm Pitch 10 Position Slide Type DIP Switch Red

Key Features

• Product Name DIP Switch;Type DIP;Features 10 Positions( 2 Row 20 Pin)
• Pitch 2.54mm/0.1'';Non-Switching Rating 100mA DC 50V;Switching Rating 25mA DC 24V;Net Weight 19g;Package Content 10 x DIP Switch
• Contact resistance 50mA 24VDC/100mA (at initial);100mA typical, 24VDC/100mA (after life test) 100mA typical, 24VDC/100mA (after life test);Total Size 2.7 x 1 x 1.1cm / 1" x 0.4" x 0.43"(L * W * H)
• Made with plastic and brass pin, Good conductivity, corrosion resistance, strong and durable
• Widely used in circuit boards, breadboards and all pcb projects, perfect as a toggle or on off switch for your projects.

Product Description

Descriptions

features

dip Type, 2. 54mm pitch, 10 position, 2 row, 20 pin, dip switch. Used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations. Widely used in data processing, communication, remote control and anti-theft alarm system need to manually automatic programming products.

Specifications
