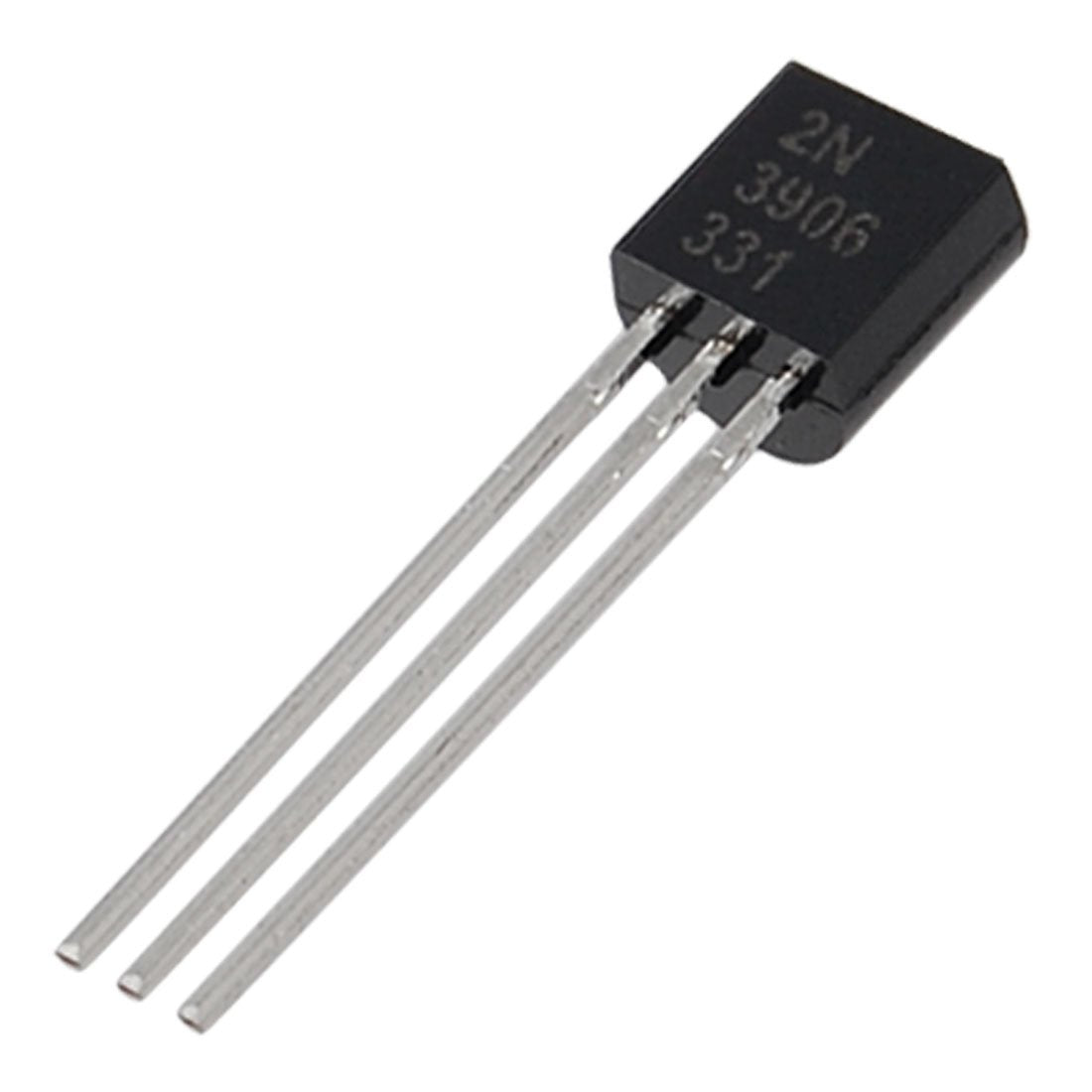

a11102000ux0365 2N3906 Three Terminal General Purpose PNP Transistors, 50 Piece

Key Features

• Product name PNP Transistor; model 2n3906; quantity 50A+/- 2 percent pcs
• Collector base Voltage 40V; collector emitter Voltage 40V; emitter base Voltage 5V
• Collector current(continuous) 200mA; collector power dissipation 625Mw; terminal Size 14 x 0. 5mm/ 0. 551" x 0. 019" ( L* D)
• Body dimension 4 x 3 x 4mm/ 0. 16" x 0. 12" x 0. 16" (l*w*t); Pitch 1. 5mm/0. 059"; main color black
• Weight 22G; package content 50 a+/- 2 percent x PNP transistors

Product Description

Product name : PNP Transistor; model : 2n3906; quantity : 50A+/- 2 percent pcs Collector base Voltage : 40V; collector emitter Voltage : 40V; emitter base Voltage : 5V Collector current(continuous) : 200mA; collector power dissipation : 625Mw; terminal Size : 14 x 0. 5mm/ 0. 551" x 0. 019" ( L* D) Body dimension : 4 x 3 x 4mm/ 0. 16" x 0. 12" x 0. 16" (l*w*t); Pitch : 1. 5mm/0. 059"; main color : black Weight : 22G;

package content

50 a+/- 2 percent x PNP transistors ›
