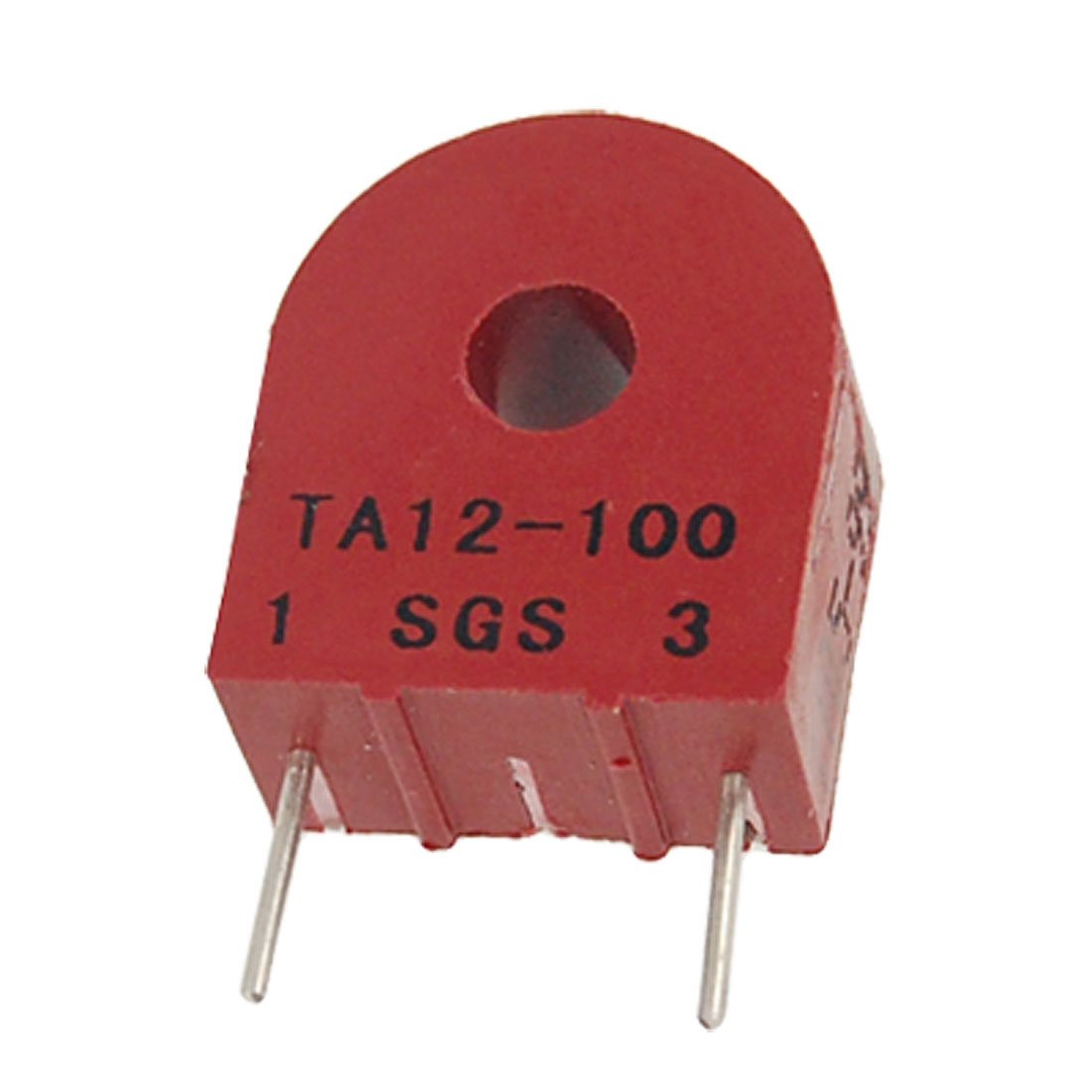

a11082200ux0110 TA12-100 Epoxy Resin Embedding 0-5A Input Current Transformer, 0.35" Width, 0.66" Length

Brand: LinkMejor

★★★★☆ 47 ratings | 27 answered questions

$10.54

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Product Name Current Transformer;Model No. TA12-100;rate 1000<strong></strong>1;Input Current 0-5A
Output Current 0-2.5mA;Sample Resistance 200Ω;Sampling Voltage 1V;Nonlinear Scale <=0.3%
Phase Drift <=10';Working Frequency 20Hz-20KHz;Working Temperature -55°C--+85°C;Dielectric Strength 6KV AC/1min
Pin Diameter 0.8mm/0.031";Distance Between Two Pins 12mm/0.5";Shot-hole Diameter 5mm/0.196";Mounting Height 20mm/0.787"
Overall Size(Approx.) 16.8 x 9 x 27.5mm/0.66" x 0.35" x 1.08"(L*W*H);Color Red;Weight 6g;Package Content 1 x Current Transformer

Product Description

Epoxy resin embedding, fully-enclosed, miniature size.Circuit board welding Type.It is the based components in relay protection, power measurement, automatic control device.
