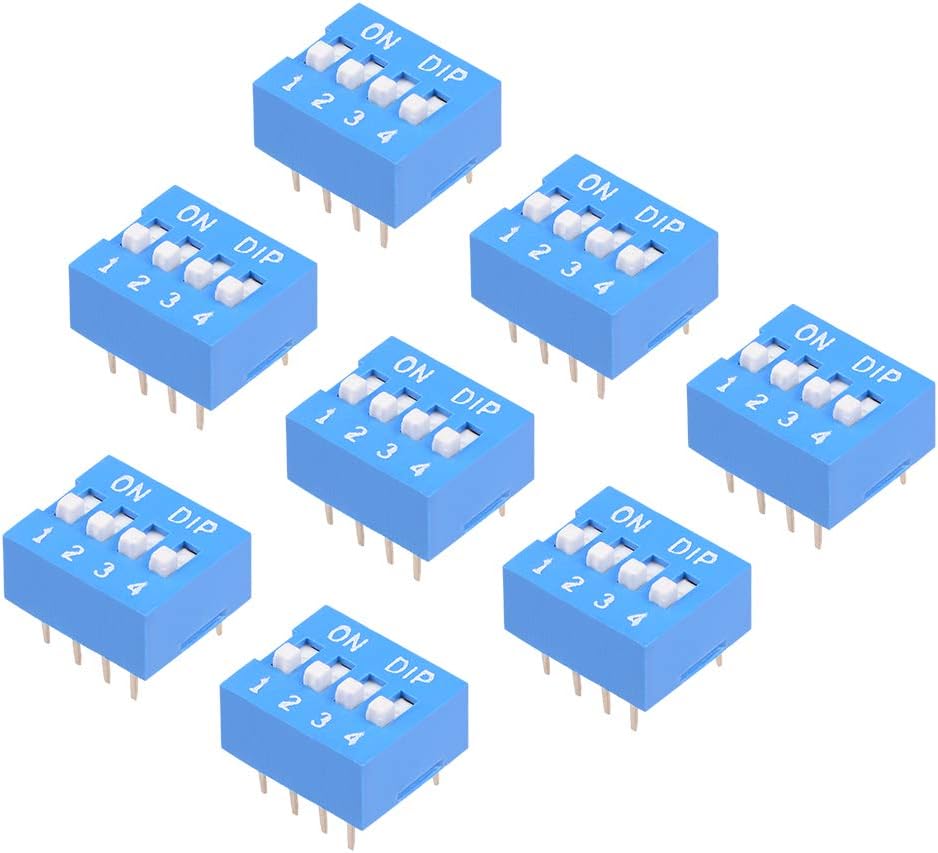

8Pcs Blue DIP Switch Horizontal 1-4 Positions 2.54mm Pitch for Circuit Breadboards PCB

Key Features

• 4 Positions ( 2 Row 8 Pins)，Package Content 8 x DIP Switch
• 1/2/3/4 Way 2 Row Dip Encode Switch, Blue color.Pitch 2.54mm
• Material Durable Plastic and Metal; Non-Switching Rating 100mA 24V DC; Switching Rating 25mA 24V DC; Contact Resistance50mΩ; Insulation Resistance500MΩ/DC500V;
• This DIP switch is designed to be used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations.The DIP switch is a durable device, constructed with a combination of metal and plastic materials. It is highly portable and designed for an extended lifespan.
• Widely used in circuit boards, breadboards and all pcb projects, perfect as a toggle or on off switch for your projects.

Product Description

Description

Widely used in circuit boards, breadboards and all pcb projects, perfect as a toggle or on off switch for your projects. Specification: Product Name: DIP SwitchType: Piano-Dip Type

Features

4 Positions ( 2 Row 8 Pins)Positions: 1/2/3/4Pitch: 2.54 mm Non-Switching Rating: 100mA DC 50VSwitching Rating: 25mA DC 24VContact resistance: 50mΩ 24VDC/100mA (at initial),100mΩ 24VDC/100mA (after life test)Each Size: 11.6x10x10.5mm (L*W*H)Main Material: Plastic, Metal

Package Content

Package Content

8 x DIP Switch
