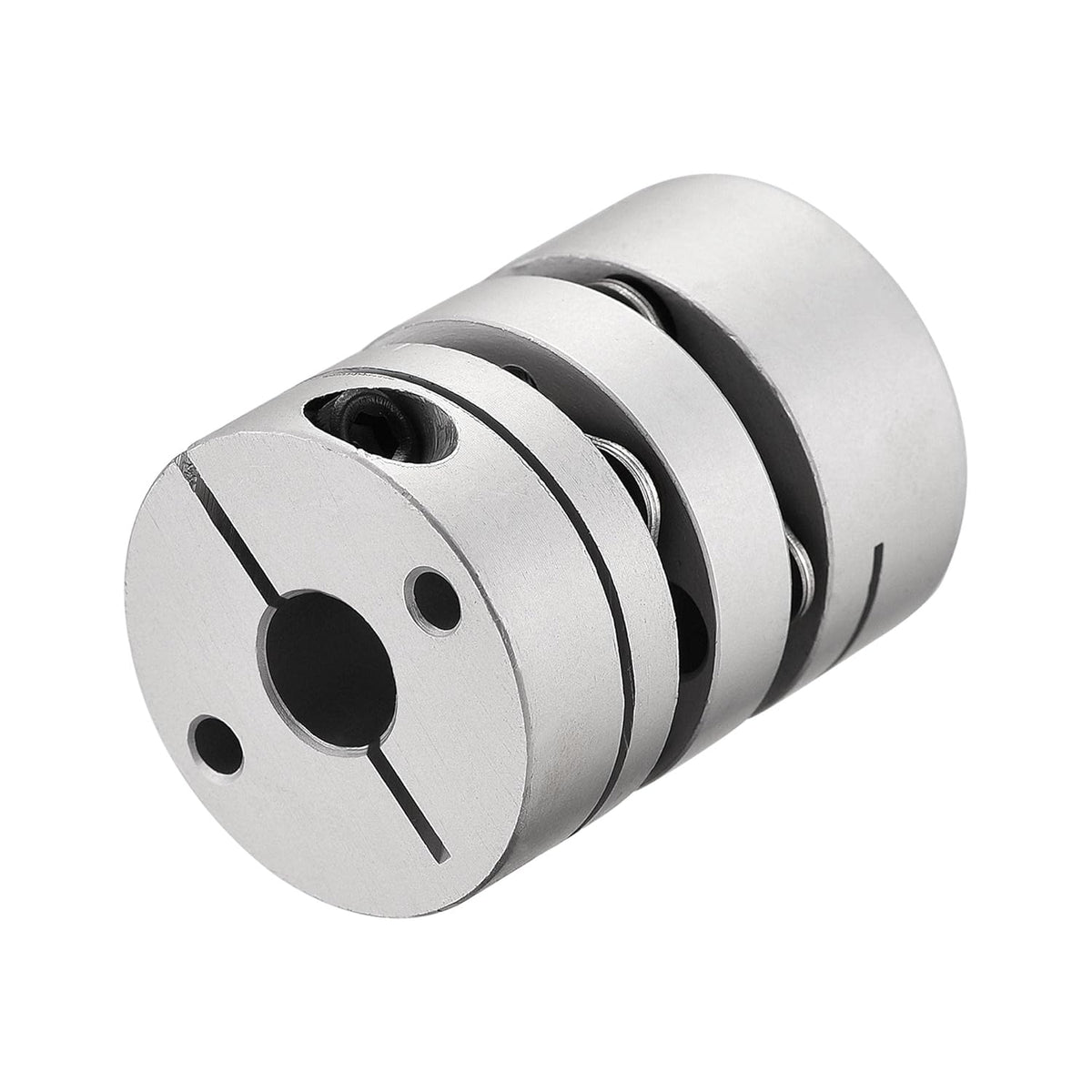

8mm to 10mm Bore Double Diaphragm Motor Wheel Flexible Coupling Joint Aluminium Alloy and Stainless Steel Silver 1Pcs

Key Features

• 26mm Diameter X 35mm Length; 10000RPM rotational speed.
• The diaphragm coupling adapt to high temperature (- 80 degrees celsius + 300 degrees celsius) and can operate safely under shock and vibration conditions.
• Shaft couplers suitable for connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.
• Large flexibility, accommodates angular and parallel misalignment.
• Aluminum hubs for light weight, stainless steel discs for strength, simple structure, assembly and disassembly is convenient.

Product Description

Description

1. The diaphragm coupling has obvious shock absorption, no noise and no wear.2. The transmission efficiency of diaphragm coupling is high, up to 99.86%, especially suitable for medium and high-speed high-power transmission.3. Flexible couplings also are simple structure, light weight and small size, which it is convenient to assembly and disassembly.4. It can accurately transmit the speed without slip, and can be used for the transmission of precision machinery.

Note

The adapted shaft diameter tolerance is +0~-0.04mmSpecification:Color: SilverLength: 35mmOutside Diameter: 26mmBore Diameter: 8mm to 10mmMax. Torque Range: 2.8N.mMaximum Rotation Speed: 10000 RPMMaterial: Aluminium Alloy and Stainless Steel

Package Content

1 x Diaphragm Coupling
